Fastener Specifications

GM5989583Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L84 with MQE

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE)
2 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE)

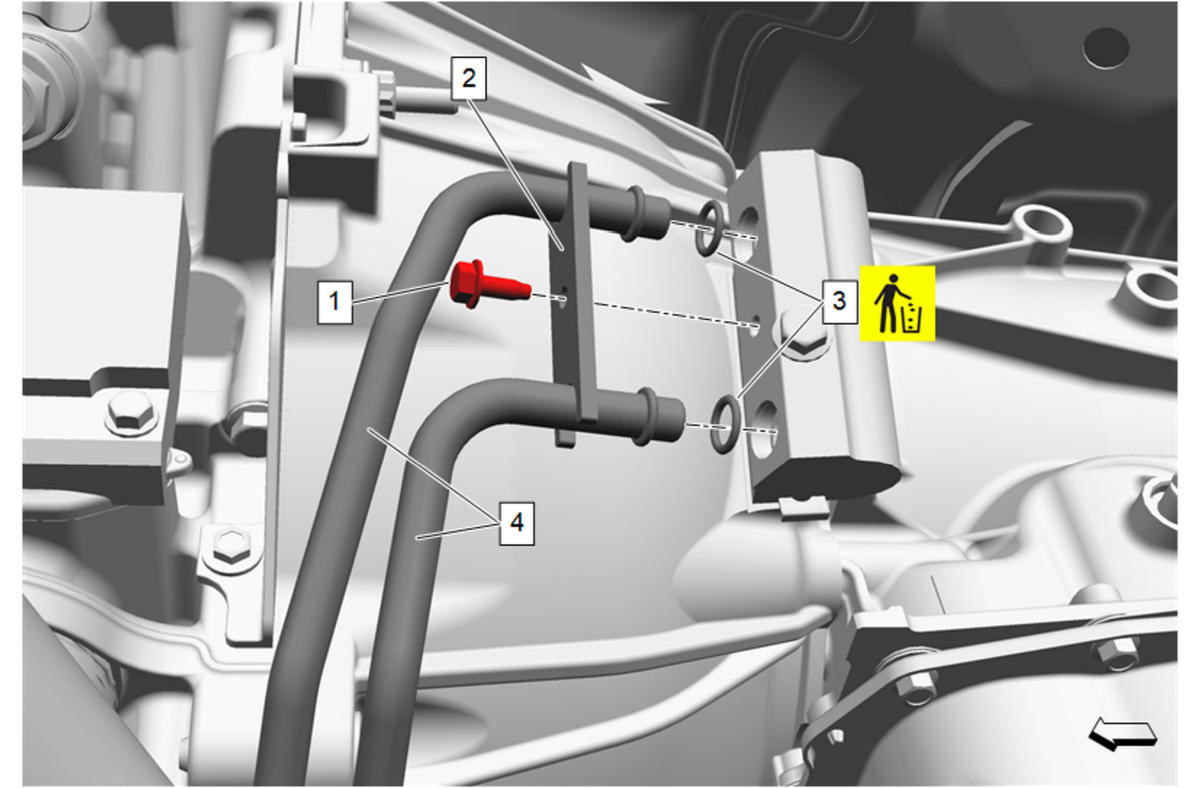

GM5651784Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82/LV3 with MYC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LV3 with 4WD and MYC)
2 Transmission Fluid Cooler Pipe Retainer Mount Plate - - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LV3 with 4WD and MYC)
3 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LV3 with 4WD and MYC)
4 Transmission Fluid Cooler Inlet and Outlet Pipe - - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LV3 with 4WD and MYC)
GM5608248Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L87 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB)
2 Transmission Fluid Cooler Inlet and Outlet Pipe - - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB)
3 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB)
GM5651857Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L3B with MQE

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE)
2 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE)
3 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE)
4 Transmission Fluid Cooler Inlet and Outlet Pipe - - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE)
5 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B with MQE)
GM5989682Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L3B with MQE

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (with L3B/MQE)
2 Automatic Transmission Fluid Cooling Exchanger Nut - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (with L3B/MQE)
GM5153479Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB)
2 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB)
GM5153851Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (with LM2/MQB)
2 Automatic Transmission Fluid Cooling Exchanger Nut - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (with LM2/MQB)
GM5504569Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82/LV3 with MYC, L84 with MQE, L87 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Auxiliary Cooler Pipe Bracket Nut - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LV3 with 4WD and MYC)
GM5569435Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82 with MYC, L84 with MQE, L87 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB)
2 Transmission Fluid Cooler Pipe Clip - - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB)
GM5619440Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB)
GM5153591Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2, MQC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Engine Removal and Installation (2WD) , or Engine Removal and Installation (4WD)
GM5021982Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82 with MYC, L84 with MQE, L87/LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe - - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB)
2 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84 with 4WD and MQE) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L82 with 4WD and MYC) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L84, L87 with 4WD and MQB) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LM2 with 4WD and MQB)
GM5634164Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82 with MYC, L84 with MQE, L87/LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bracket Bolt - - 9 N.m (80 lb in) Transmission Fluid Auxiliary Cooler Replacement , or Transmission Fluid Auxiliary Cooler Replacement (MQE with L84) , or Transmission Fluid Auxiliary Cooler Replacement (MQB with LM2, L84, L87)
GM5654327Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L84 with MQE

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Cooler Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (with L84 and MQE)
2 Transmission Cooler Bypass Valve - - - Transmission Cooler Bypass Valve Replacement (with L84 and MQE)
3 Transmission Cooler Bypass Valve Seal Yes - - Transmission Cooler Bypass Valve Replacement (with LM2 and MQB) , or Transmission Cooler Bypass Valve Replacement (with L84 and MQE) , or Transmission Cooler Bypass Valve Replacement (with L82 and MYC)

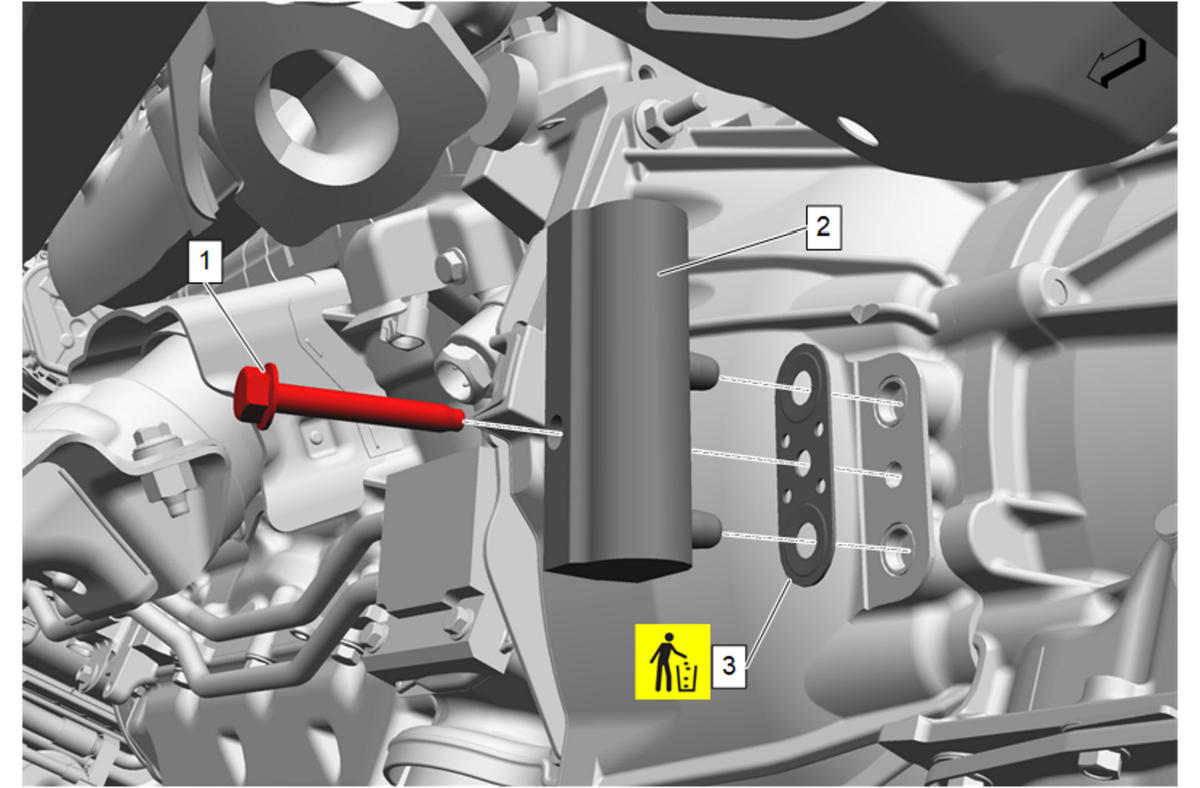

GM5654562Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82 with MYC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Cooler Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (with L82 and MYC)
2 Transmission Cooler Bypass Valve - - - Transmission Cooler Bypass Valve Replacement (with L82 and MYC)
3 Transmission Cooler Bypass Valve Seal Yes - - Transmission Cooler Bypass Valve Replacement (with L82 and MYC)
GM5617646Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Cooler Bypass Valve Replacement (with LM2 and MQB)
GM5619646Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Cooler Bypass Valve Replacement (with LM2 and MQB)
GM5624981Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (with LM2 and MQB)
2 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (with LM2 and MQB)
GM5659364Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82/LV3 with MYC, L84 with MQE, L87/LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 20 N.m (15 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Auxiliary Cooler (Right)
GM5659390Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, L82/LV3 with MYC, L84 with MQE, L87/LM2 with MQB

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 20 N.m (15 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Auxiliary Cooler (Right)

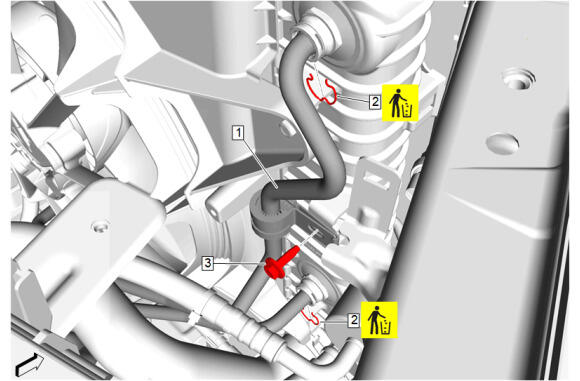

GM5568876Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LV3 with MYC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe - - - Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper
2 Transmission Fluid Cooler Pipe Connector Retainer - - - Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper
3 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper
GM5659549Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LV3 with MYC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 20 N.m (15 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper
GM5906622Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Transmission Cooling Components, LV3 with MYC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 20 N.m (15 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower
