Removal Procedure

  1. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)Tire and Wheel Removal and Installation (Steel Wheel)

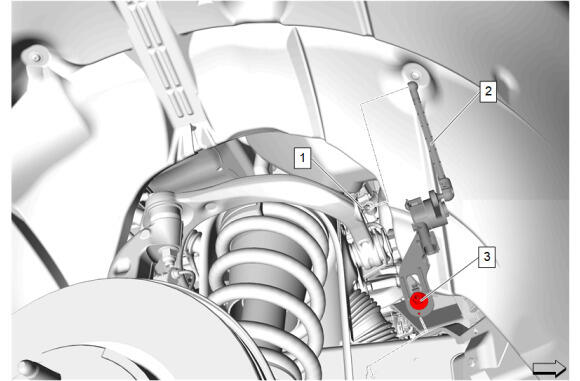

  2. GM5633135Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the front suspension 4 corner leveling system position sensor link (2) from the electronic suspension front position sensor link ball stud (1).
  4. Disconnect the electrical connector.
  5. Loosen the front suspension 4 corner leveling system position sensor (3).
  6. Remove the front suspension 4 corner leveling system position sensor (3) from the keyhole slot at the frame.
