Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

{If equipped} Retainer Clip (1) - Disengage
Courtesy of GENERAL MOTORS COMPANY

Remove the underbody splash shield:
1. Underbody Splash Shield Bolt (1) - Remove [4x]
2. Underbody Splash Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

{with NZZ} Remove the underbody skid shield:
1. Underbody Skid Shield Bolt (1) - Remove [2x]
2. Underbody Skid Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

{without NZZ} Remove the steering gear skid shield:
1. Steering Gear Skid Shield Bolt (1) - Remove [2x]
2. Steering Gear Skid Shield (2) - Remove
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Inner Tie Rod Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

Using CH-43631 Ball Joint Separator (1), remove the steering linkage outer tie rod from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Outer Clamp (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Clamp (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

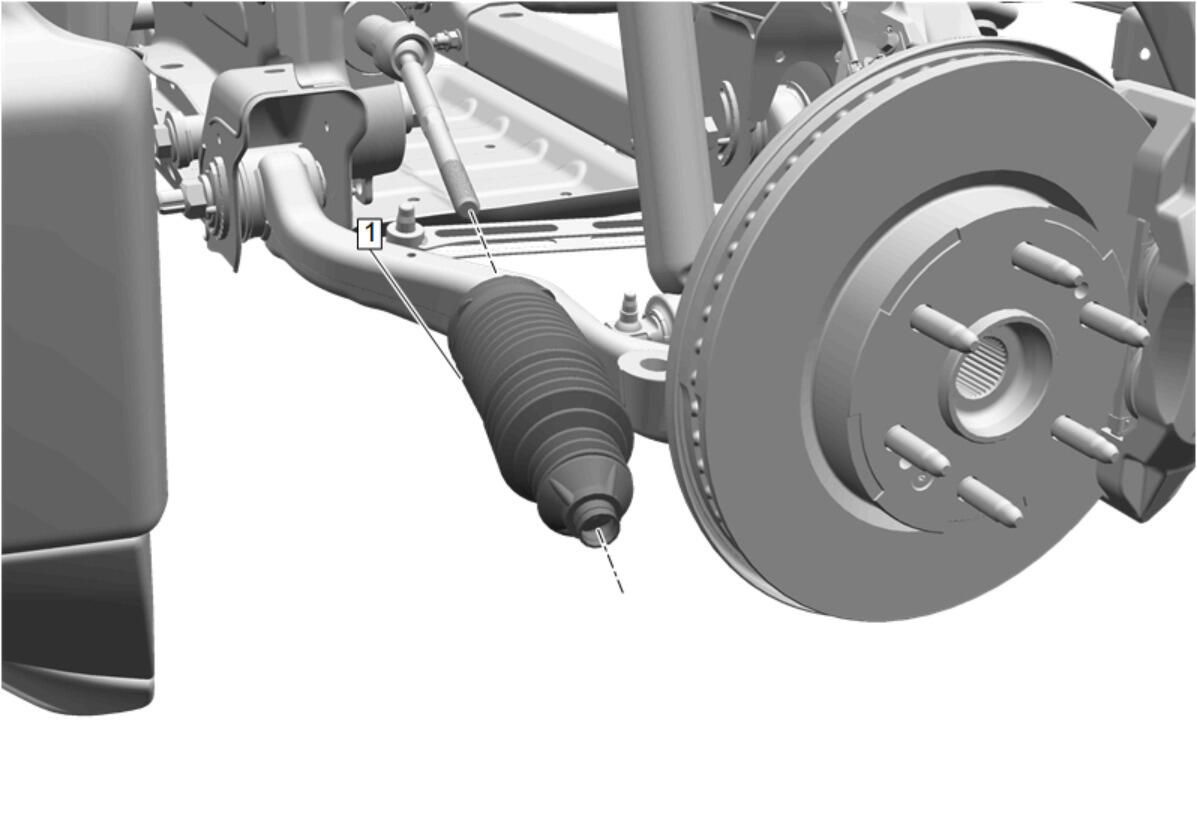

Steering Gear Boot (1) - Remove
