Installation Procedure

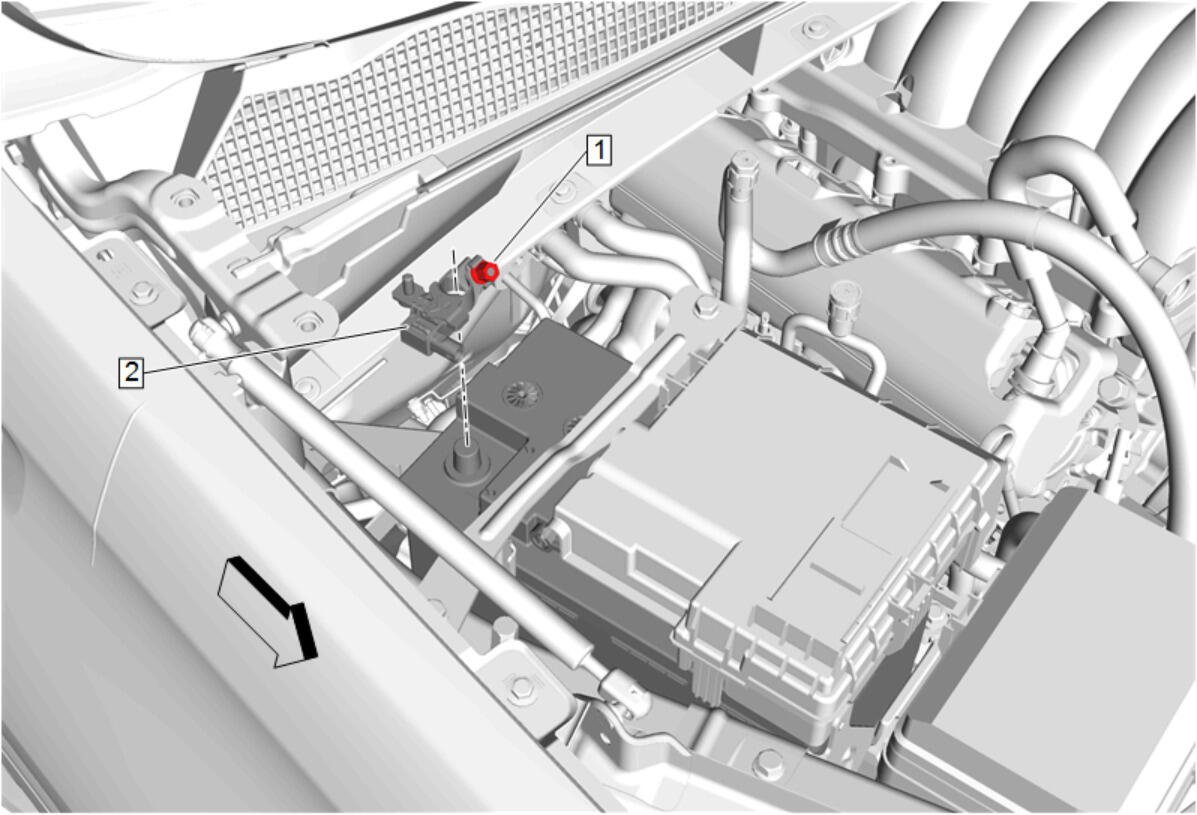

  1. GM5001289Courtesy of GENERAL MOTORS COMPANY

    Battery Sensor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Post Clamp Nut (1) - Tighten - Fastener Specifications

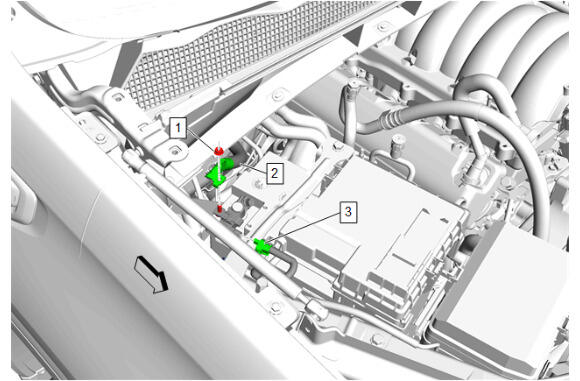

  3. GM5001288Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (2) - Install

  4. Battery Negative Cable Ground Nut (1) @Battery Sensor Module - Install and tighten - Fastener Specifications
  5. Electrical Connector (3) - Connect
