Removal Procedure
Electrical Connector (1) @Battery Current Sensor (2) - Disconnect
- WARNING:
Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
Battery Negative Cable Ground Nut (1) @Battery Negative Post - Remove
- Battery Negative Cable Ground Nut (2) @Plenum Front Panel - Remove

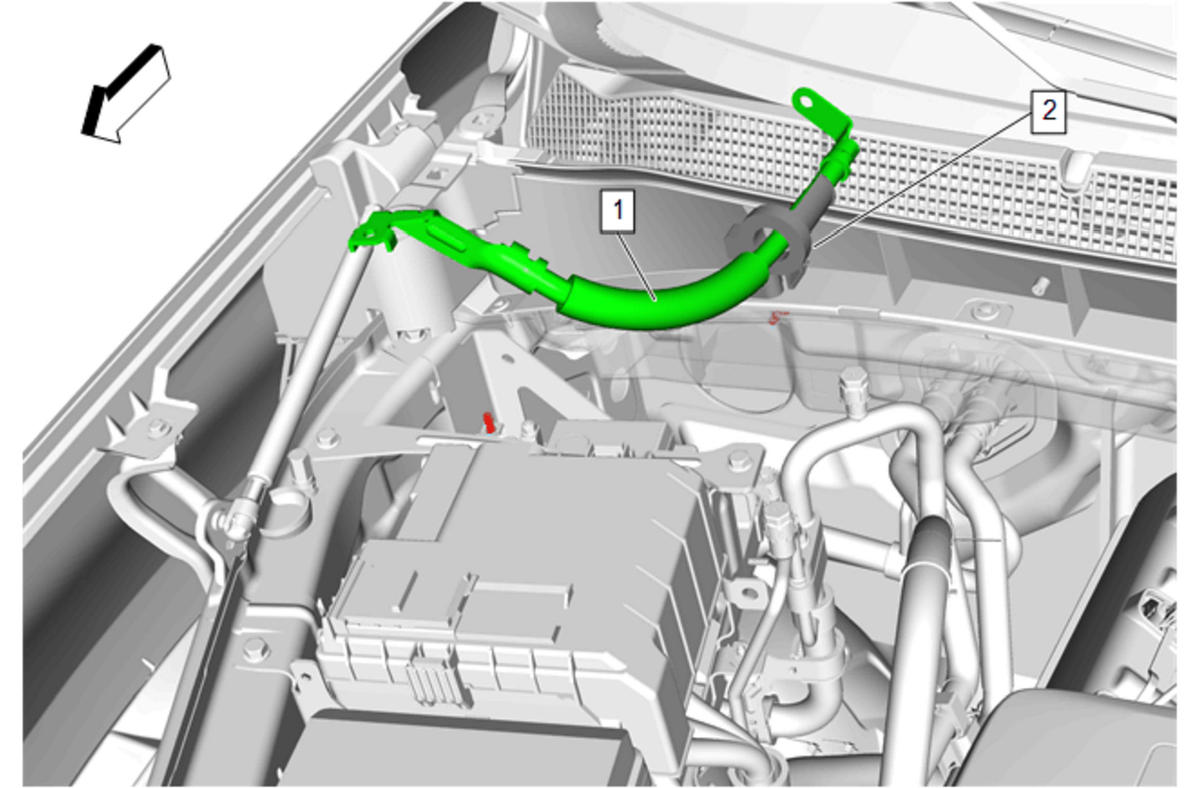

Battery Negative Cable (1) - Remove
- The battery current sensor (2) is serviced with the battery negative cable (1).
