Installation Procedure

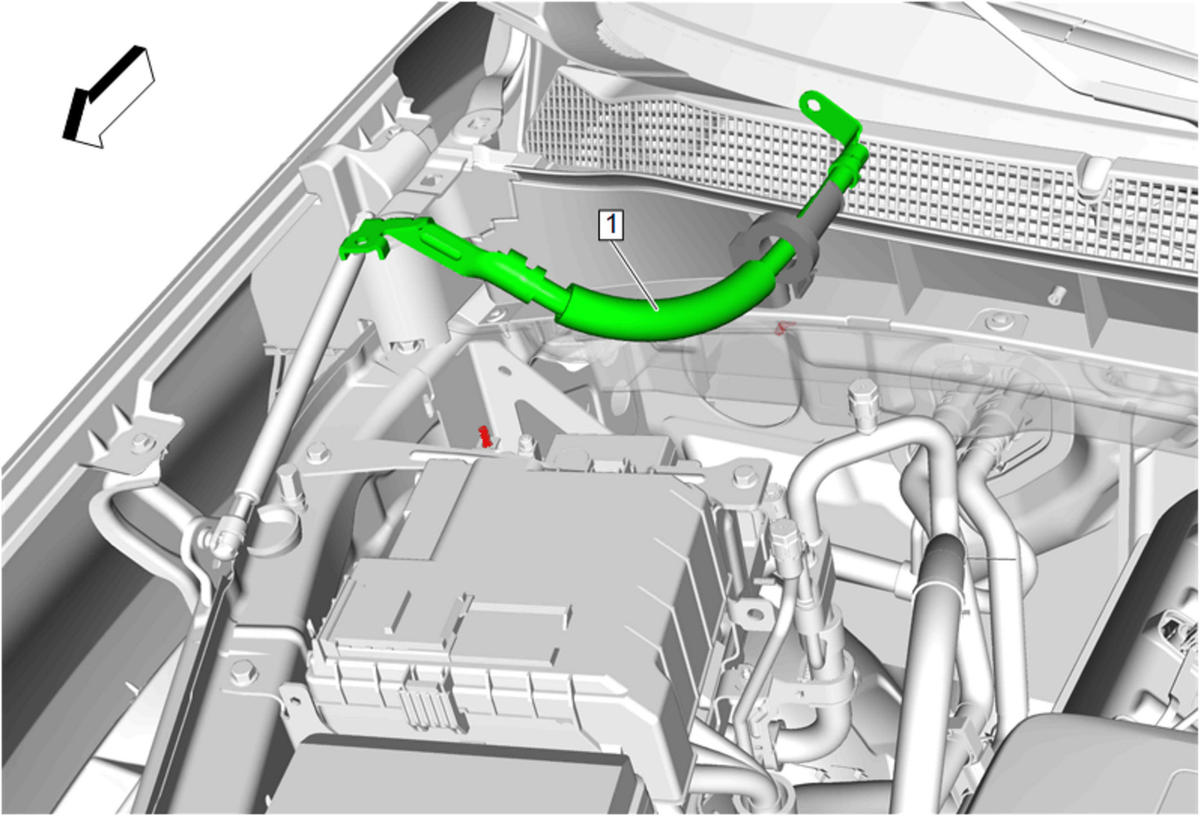

  1. GM4999459Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

  2. GM4999458Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Battery Negative Cable Ground Nut (2) @Plenum Front Panel - Install and tighten - Fastener Specifications

  3. Battery Negative Cable Ground Nut (1) @Battery Negative Post - Install and tighten - Fastener Specifications

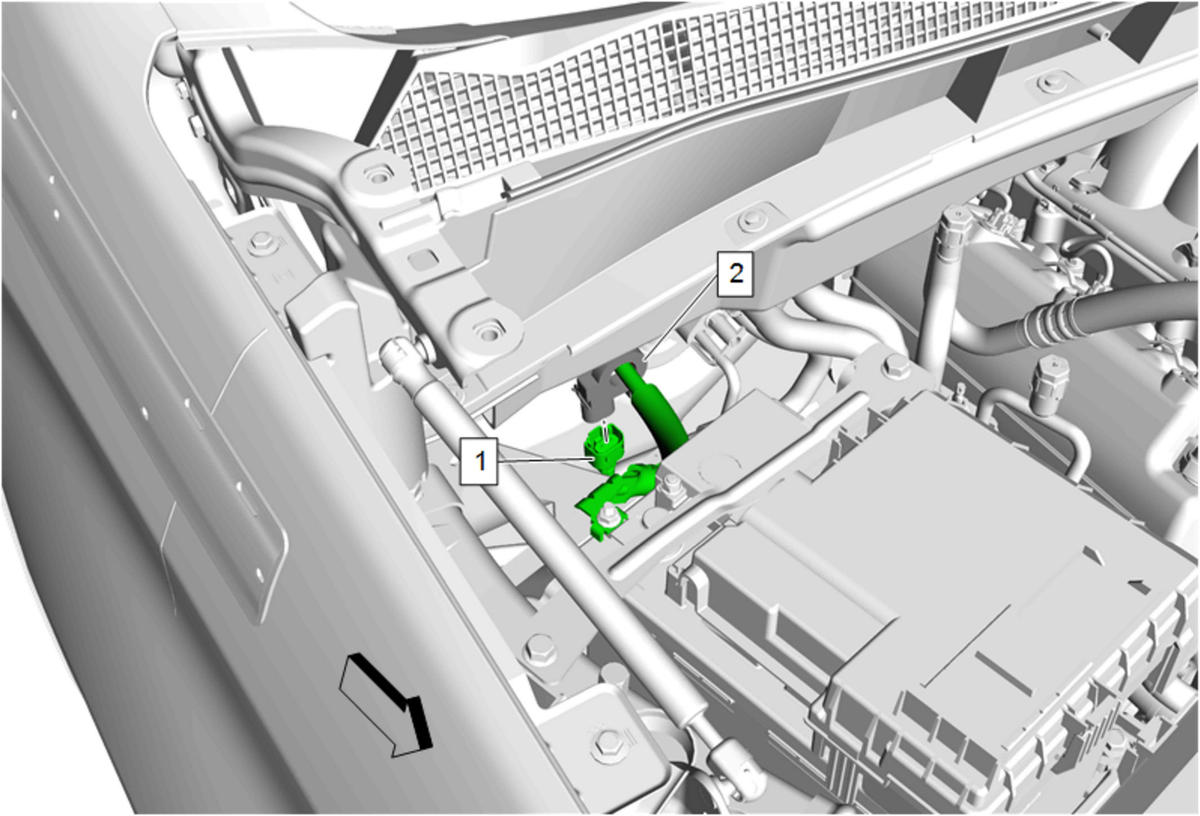

  4. GM4999457Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @Battery Current Sensor (2) - Connect
