Installation Procedure

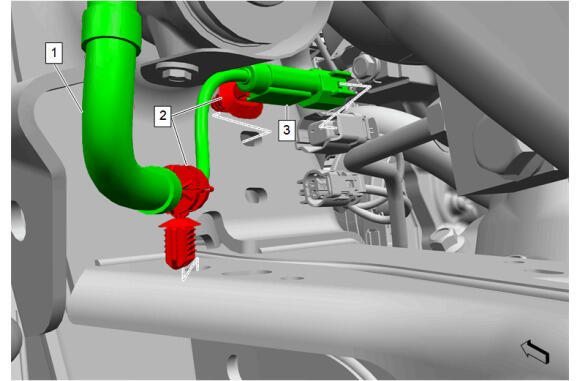

Front Wheel Speed Sensor Wiring Harness (1) - Install
- Connect the electrical connector. (3)
- Front Wheel Speed Sensor Retainer (2) - Install

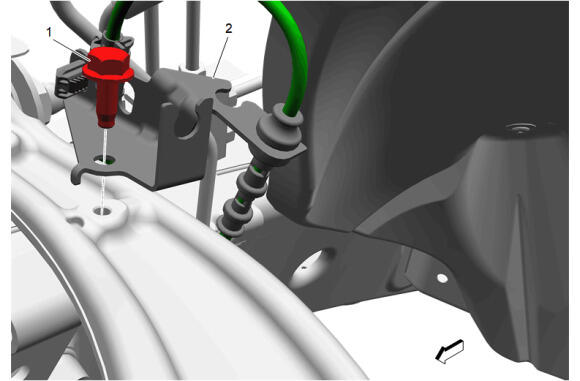

Front Wheel Speed Sensor Bracket (2) - Install
- Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
- NOTE:
Typical front wheel speed sensor bracket shown, actual image may vary based on option content.

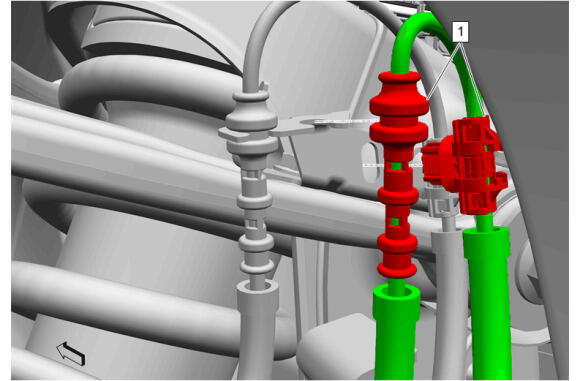

{ If equipped } Front Disc Brake Pad Wear Sensor (1) @Front Wheel Speed Sensor Bracket - Install [2x]

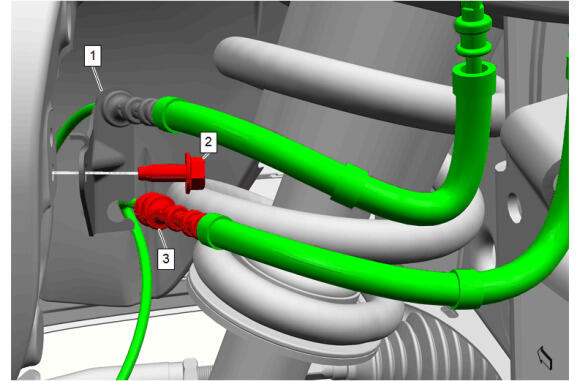

Front Wheel Speed Sensor Bracket (1) - Install
- Front Wheel Speed Sensor Bracket Bolt (2) - Install and tighten - Fastener Specifications
- { If equipped } Front Disc Brake Pad Wear Sensor (3) @Front Wheel Speed Sensor Bracket - Install
Front Wheel Speed Sensor Bracket (2) - Install
- Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (3) and mounting pad on the front steering knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Front Wheel Speed Sensor (3) - Install
- Front Wheel Speed Sensor Bolt (4) - Install and tighten - Fastener Specifications
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel) , or Tire and Wheel Removal and Installation (Steel Wheel)
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
