Installation Procedure

  1. GM5536168Courtesy of GENERAL MOTORS COMPANY

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. With the aid of an assistant, install the windshield (1) and locating pins (2) to the vehicle.

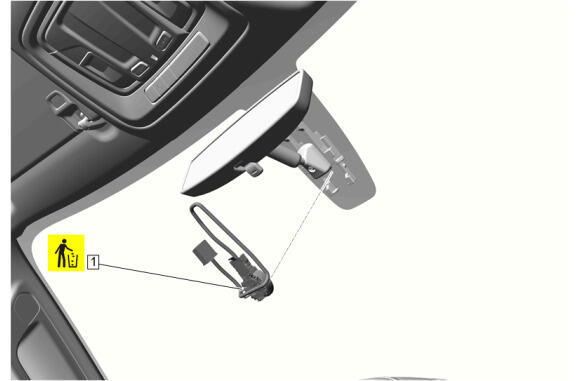

  3. GM4994596Courtesy of GENERAL MOTORS COMPANY

    Inside Air Moisture and Windshield Temperature Sensor (1) - Install NEW

  4. GM5042233Courtesy of GENERAL MOTORS COMPANY

    If equipped, install the front view driver information camera bracket (1) to the windshield and slide downward to engage the pins.

  5. GM5041945Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. {If equipped} Front View Camera (1) - Install
  7. Secure the retaining tabs.
  8. GM4584911Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install

  9. Slide the mirror onto the rearview mirror button.
  10. {If equipped} Connect the electrical connector.
    11. CAUTION:

    Refer to Fastener Caution .

  11. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications

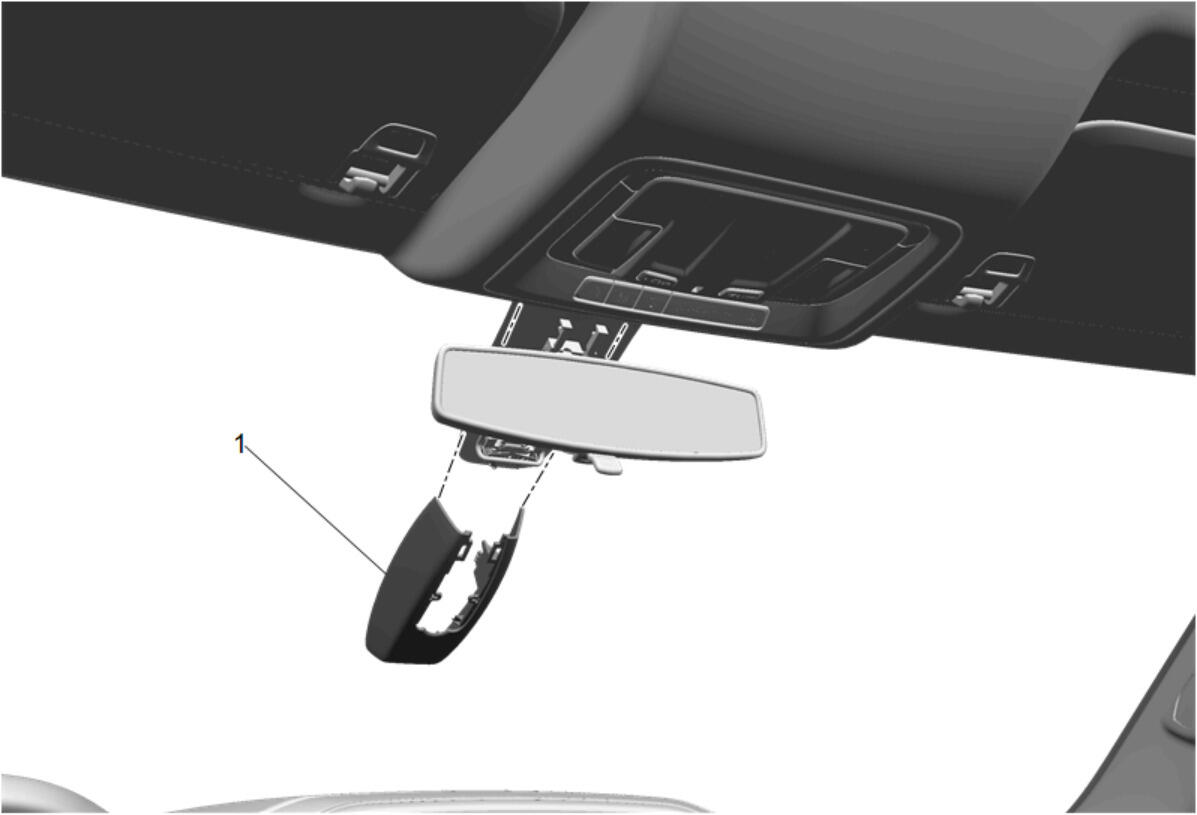

  12. GM5042122Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  13. Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

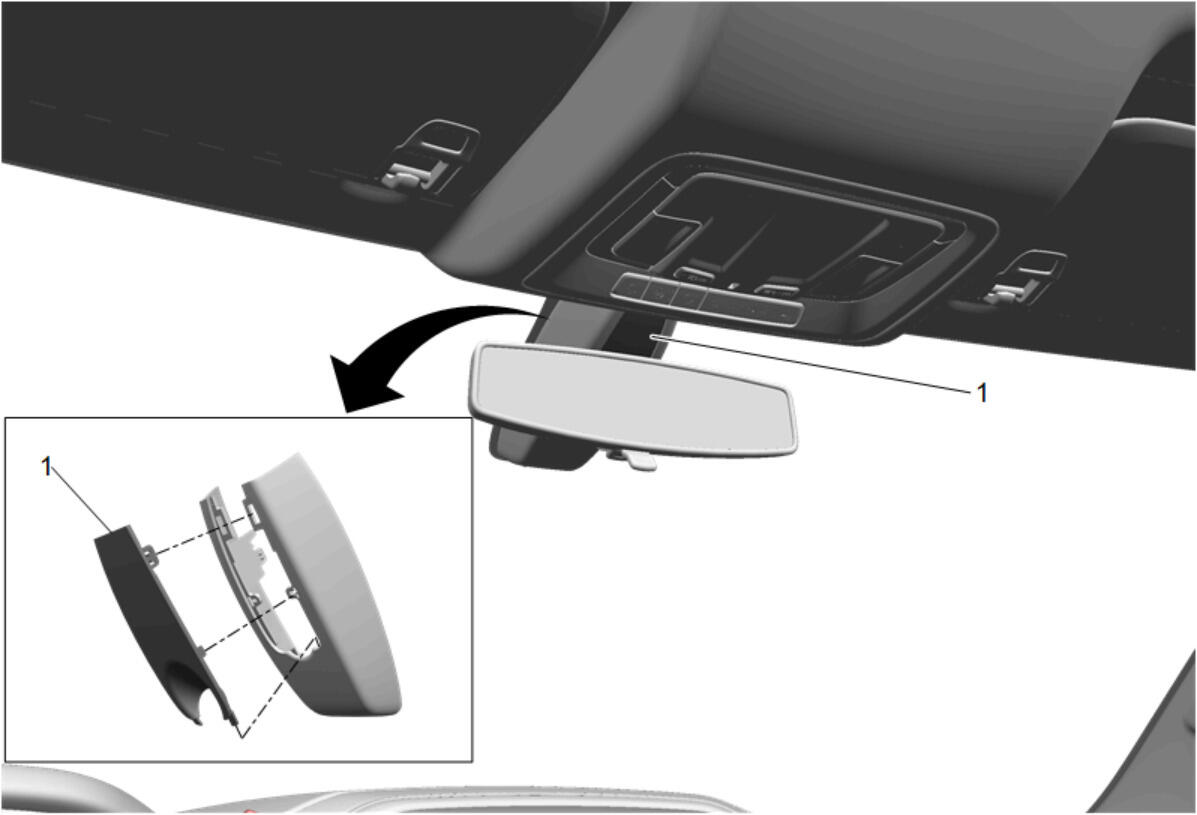

  14. GM5042128Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  15. GM5537718Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  16. GM5042391Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  17. Connect the windshield washer nozzle hose to the windshield washer pump hose.
  18. Air Inlet Grille Panel Retainer (1) - Install [8x]
  19. GM5575838Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal (2) - Install [2x]

  20. Air Inlet Grille Panel Retainer (1) - Install [2x]
  21. GM5628133Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension- Left Side (1) - Install

  22. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  23. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  24. GM5648878Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Air Inlet Grille Panel Extension- Right Side (1) - Install

  25. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  26. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  27. GM5039607Courtesy of GENERAL MOTORS COMPANY

    Radio Antenna (1) - Install

  28. Rotate the radio antenna clockwise to secure the radio antenna to the radio antenna base.
  29. GM5522078Courtesy of GENERAL MOTORS COMPANY

    Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

  30. Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.
  31. Windshield Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
  32. Windshield Wiper Arm Finish Cap (1) - Install [2x]
  33. GM5532162Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  34. Lubricate the windshield with clean washer fluid.
  35. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  36. Ensure the windshield wipers are in the full park position.
  37. Enable the SIR System. SIR Disabling and Enabling
  38. {If equipped} Perform the front view camera learn. Front View Camera Module Learn
