Removal Procedure

Rear Seat Back Cushion - Remove - Rear Seat Back Cushion Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Remove the rear sliding window control module bolt (1) from the rear sliding window regulator (2).
Pull forward on the rear sliding window regulator (2) to release it from the rear sliding window module.
Courtesy of GENERAL MOTORS COMPANY

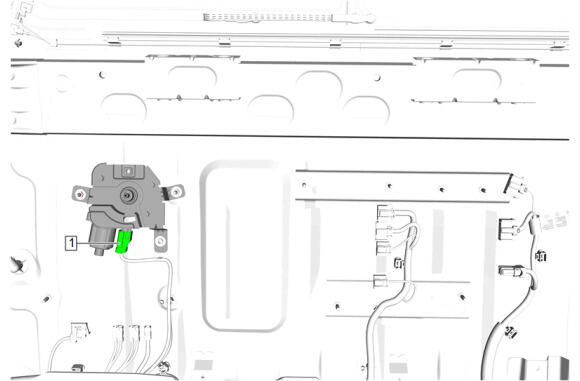

Disconnect the electrical connector (1) from the rear sliding window module.
Courtesy of GENERAL MOTORS COMPANY

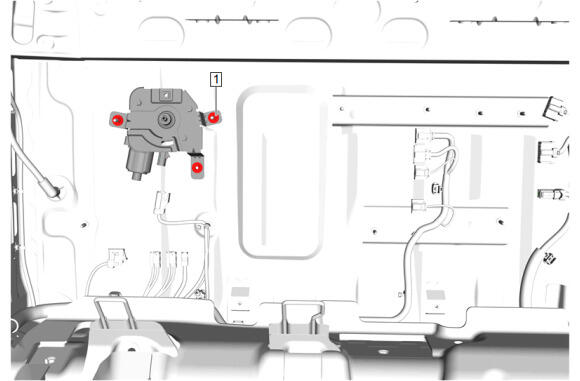

Rear Sliding Window Control Module Nut (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Remove the rear sliding window module (1) from the vehicle.
