Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

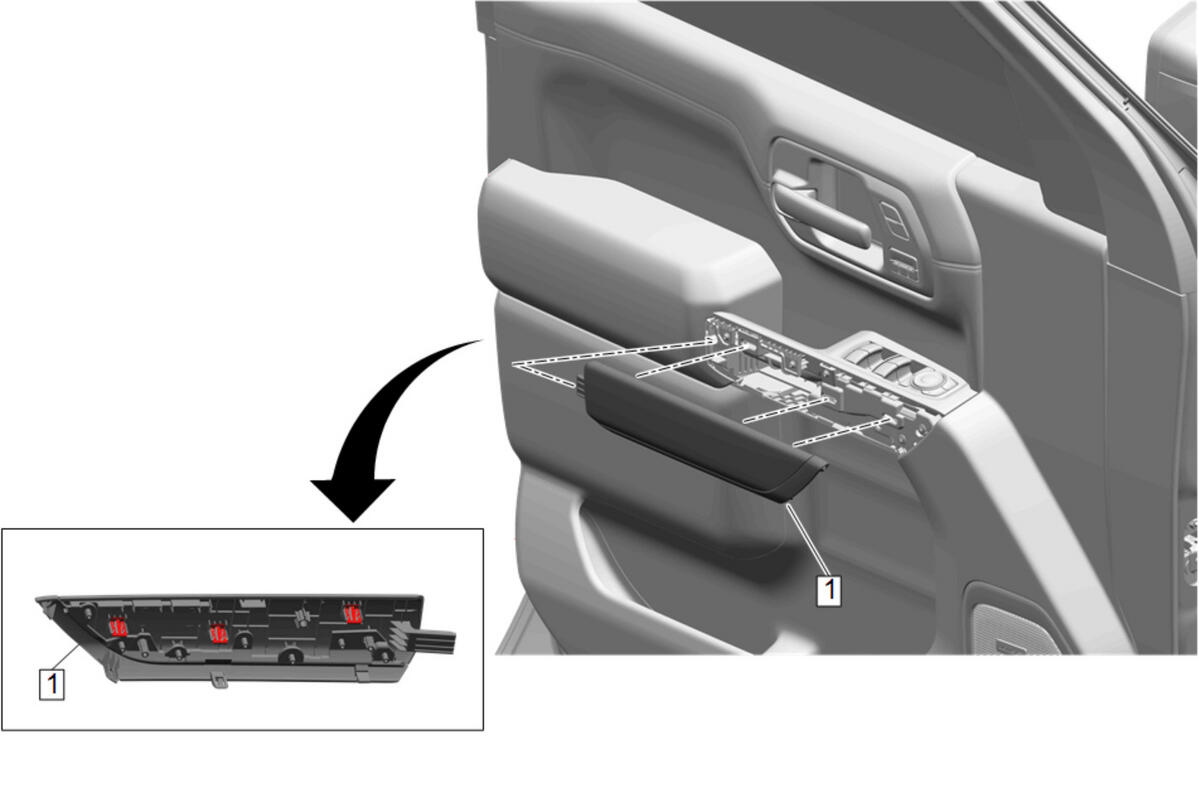

Front Side Door Window Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

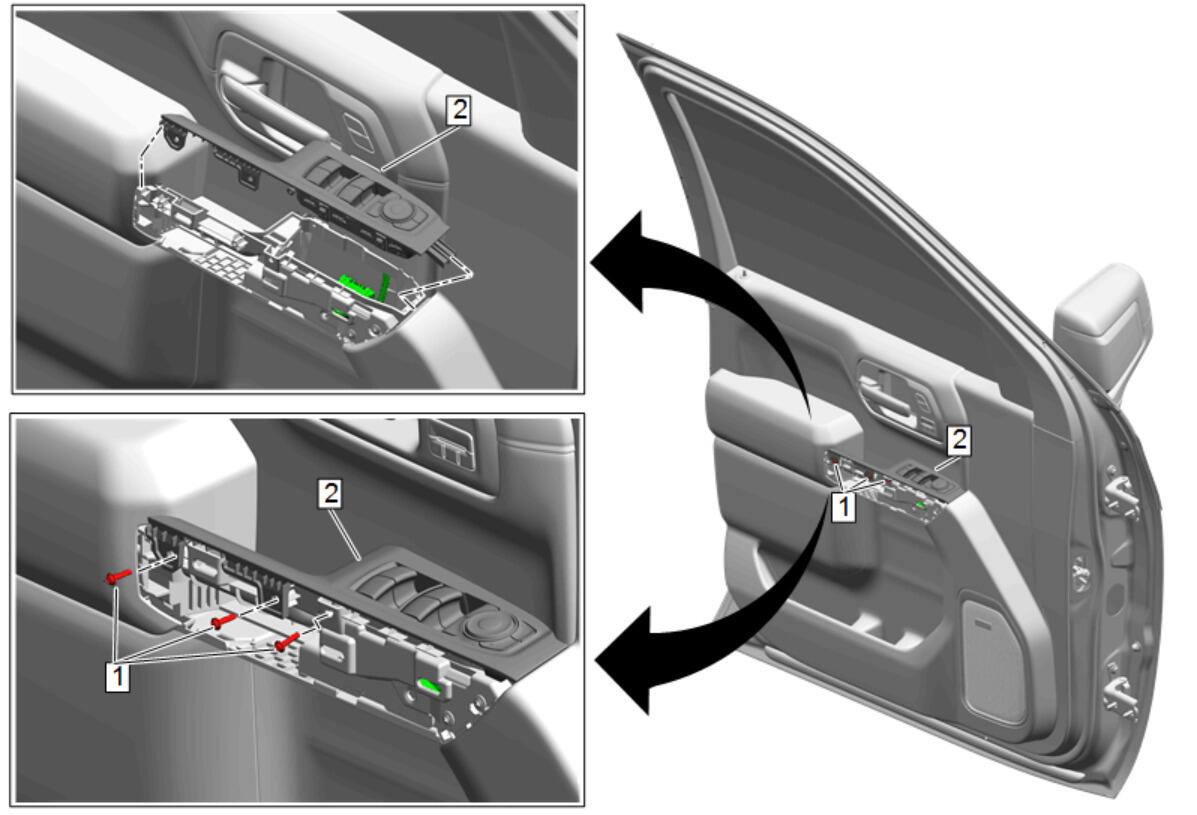

Front Side Door Accessory Switch Mount Plate - Driver Side (2) - Install
Connect the electrical connector.

CAUTION:

Refer to Fastener Caution .

Front Side Door Trim Panel Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Armrest Cover Trim (1) - Install
