Pedestrian Sound Alert Module Replacement

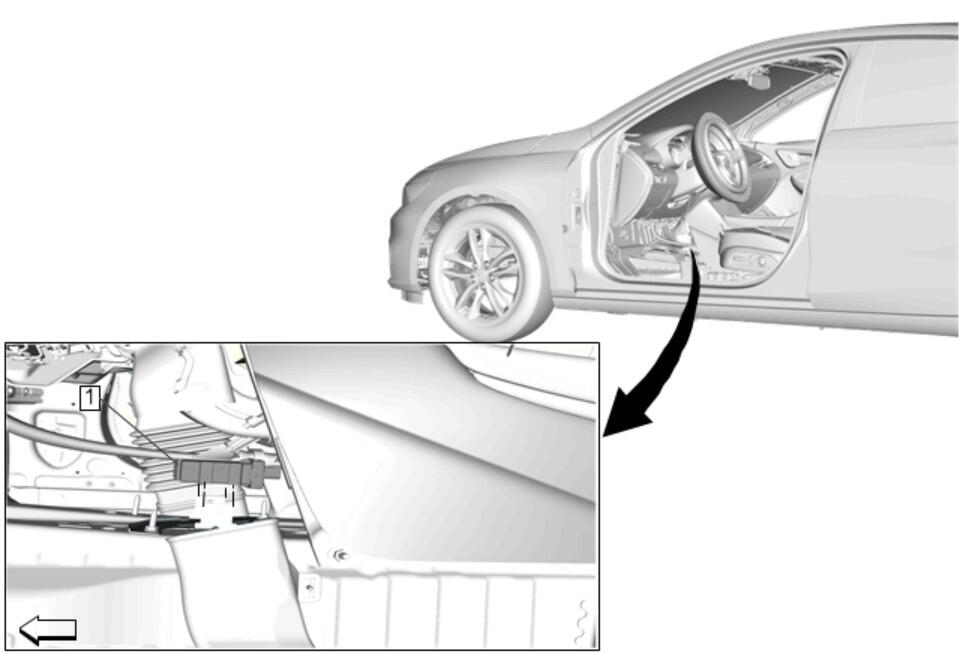

GM4216946Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Front Floor Panel Carpet Replacement - Right Side
  2. Floor Rear Air Outlet Duct Adapter Replacement (Left Side) , or Floor Rear Air Outlet Duct Adapter Replacement (Right Side)
1 Pedestrian Sound Alert Module

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
  3. Control Module References for programming and setup information, if required.
