Battery Tray Support Replacement

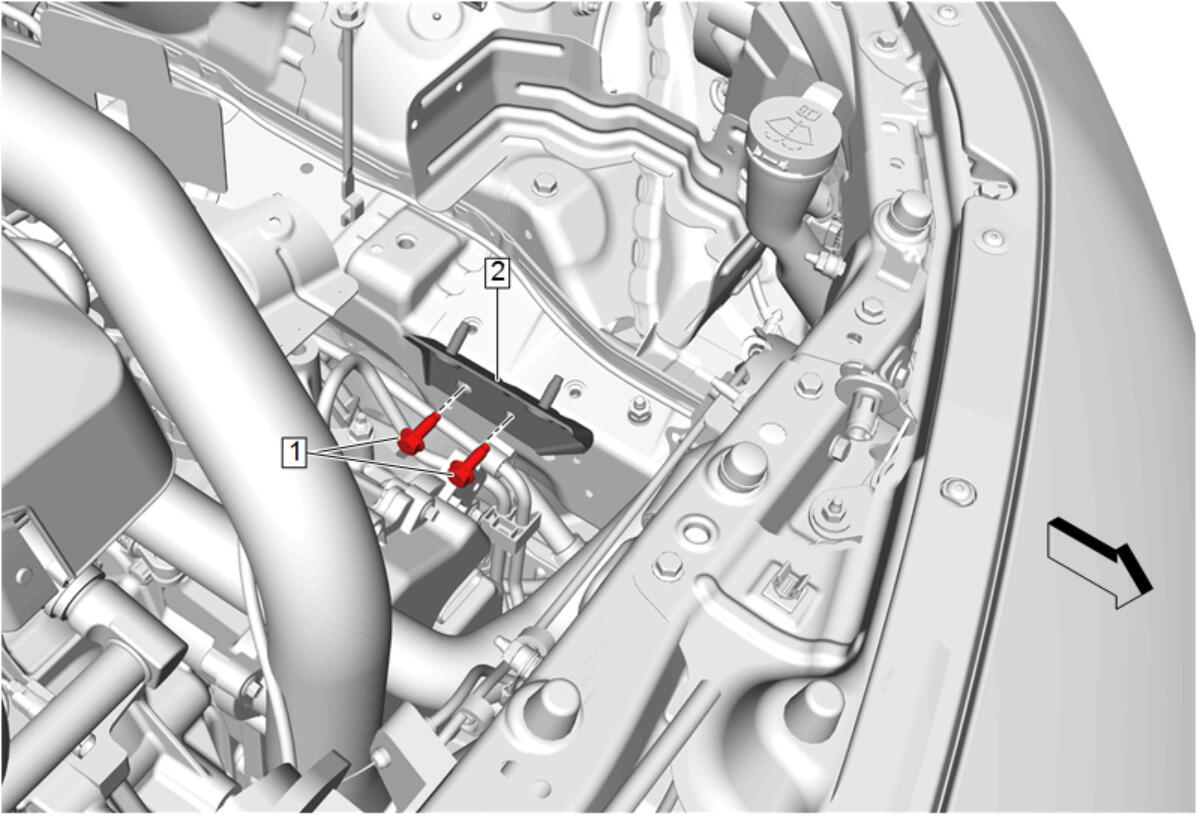

GM4953238Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Battery Tray Replacement (LFV) , or Battery Tray Replacement (LTG)
1 Battery Tray Support Bolt [2x]
CAUTION:

Fastener Caution


Tighten
22 N.m (16 lb ft)
2 Battery Tray Support
