Installation Procedure

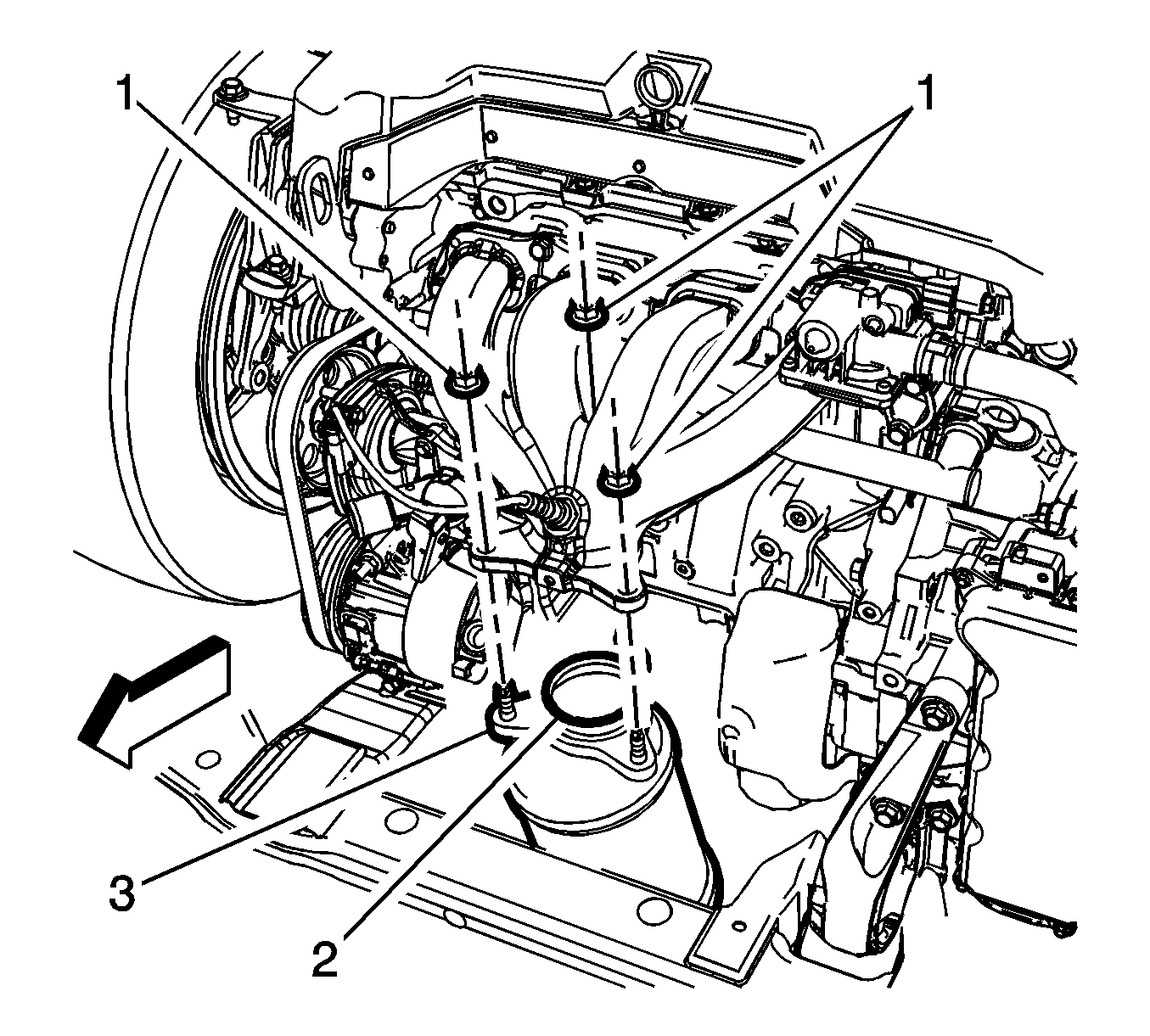

Install the catalytic converter (3) to the exhaust manifold with a NEW catalytic converter seal (2).
- Hand tighten the catalytic converter to exhaust manifold fasteners (1).
- CAUTION:
Refer to Fastener Caution .

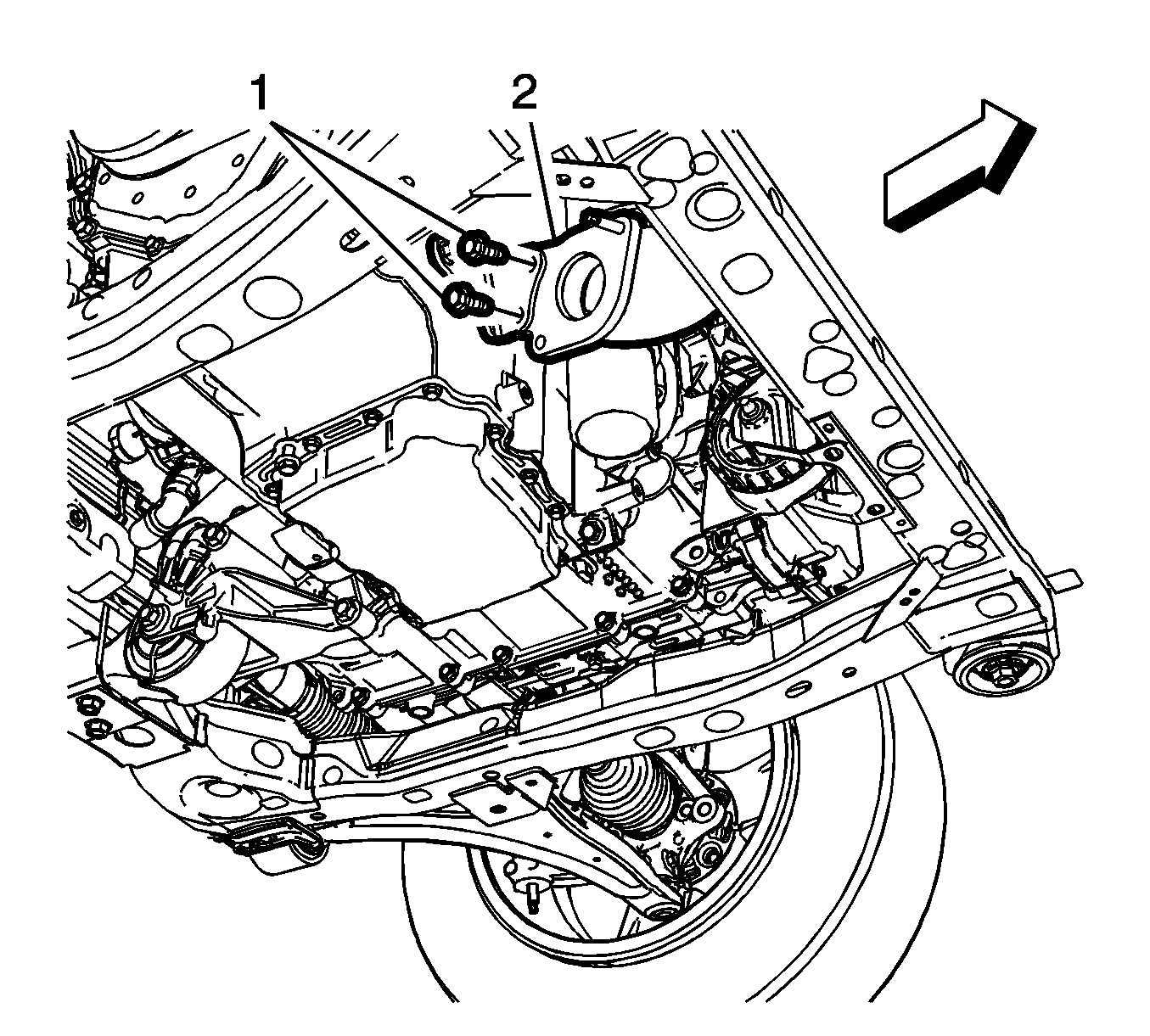

Install the catalytic converter brace fasteners (1) and tighten to 22 N.m (16 lb ft).
Tighten the catalytic converter fasteners (1) to 58 N.m (43 lb ft).
- Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement .
- NOTE:
Do not twist or damage the flex coupling on the exhaust front pipe.

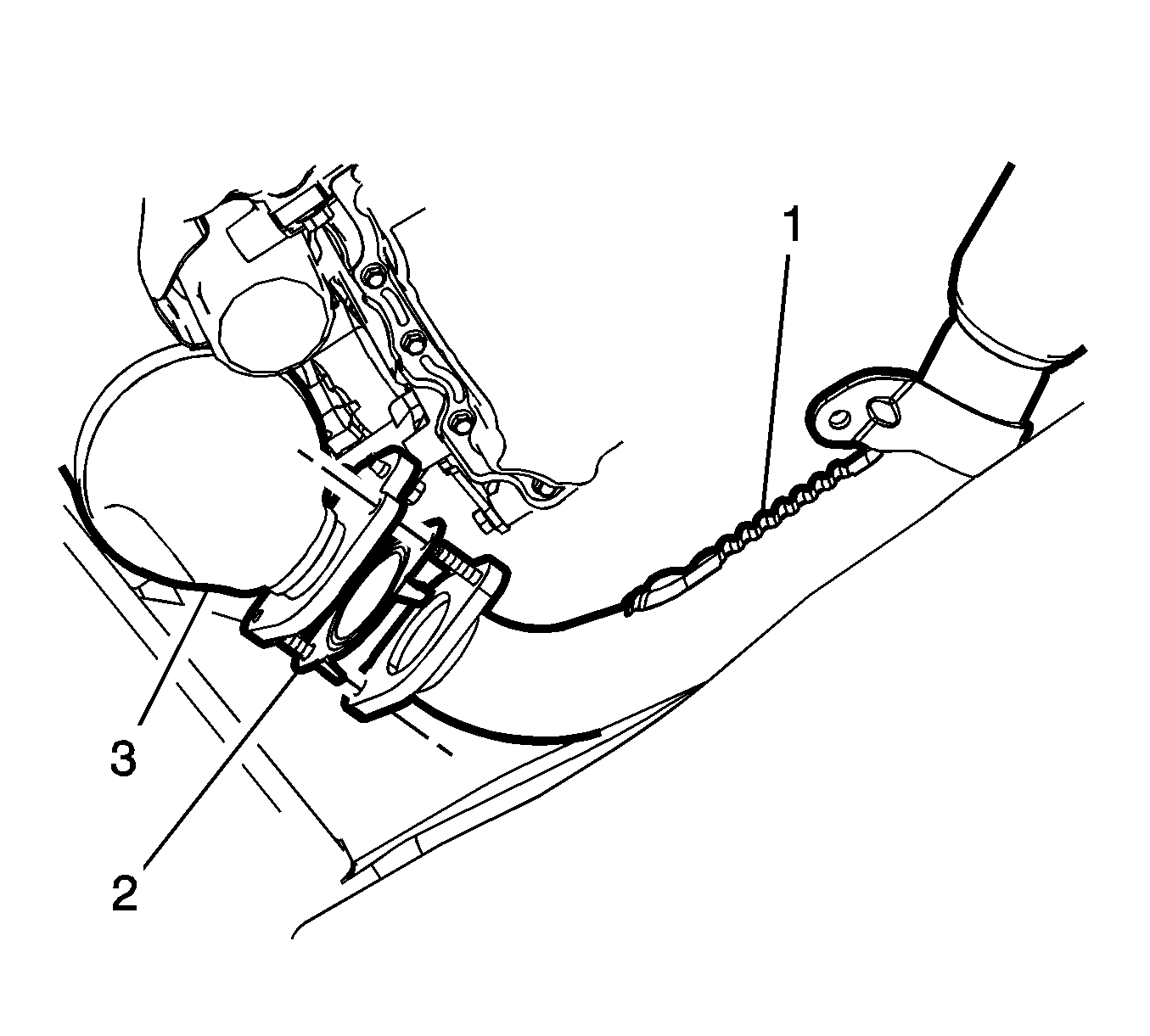

Install the exhaust front pipe (1) to the catalytic converter (3) with a NEW gasket (2).

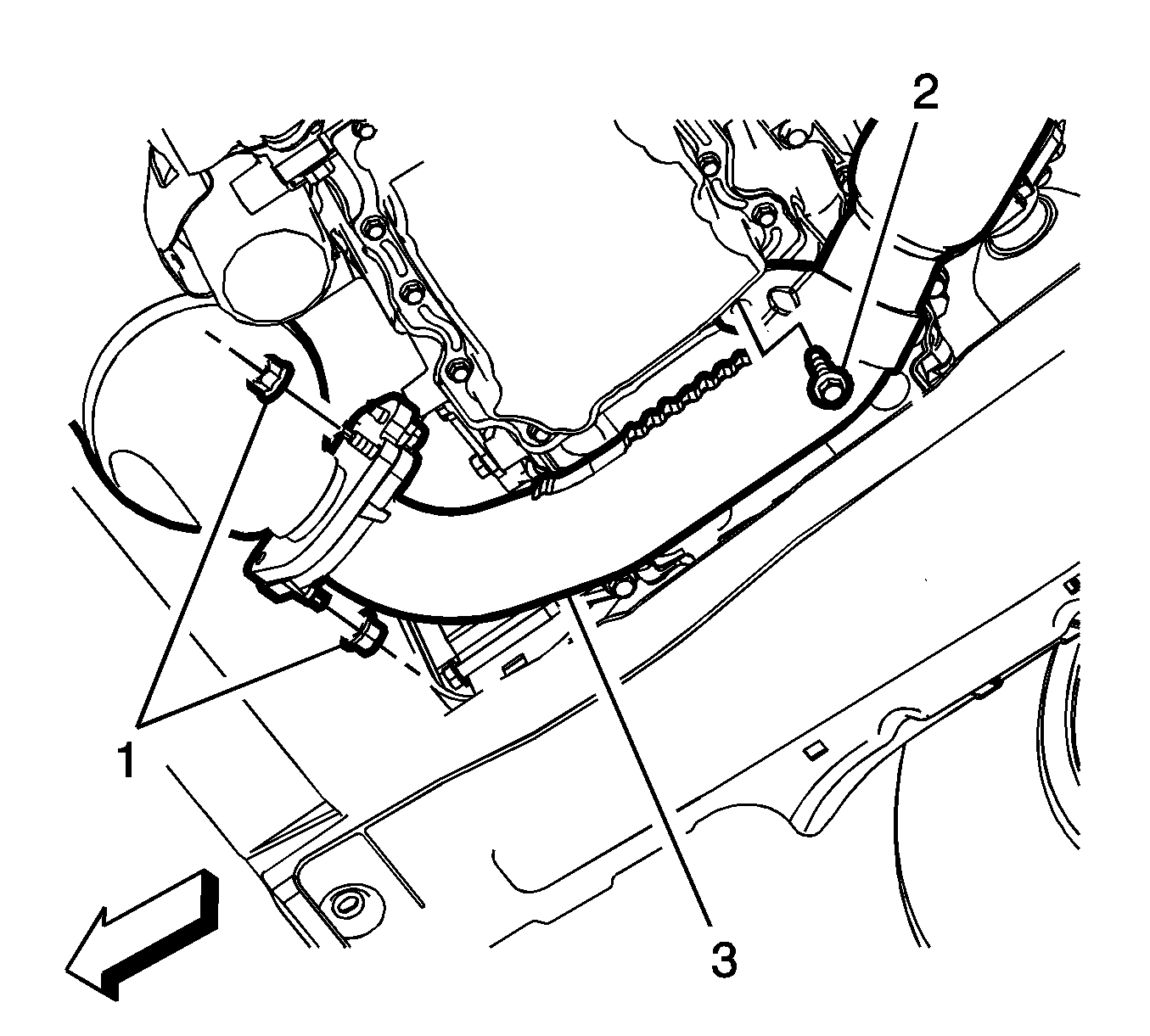

Install the lower catalytic converter fasteners (1) and tighten to 28 N.m (21 lb ft).
- Install the exhaust front pipe retainer fastener (2) and tighten to 22 N.m (16 lb ft).
- Start the engine and check for exhaust leaks.
