Rear Compartment Lid Latch Replacement

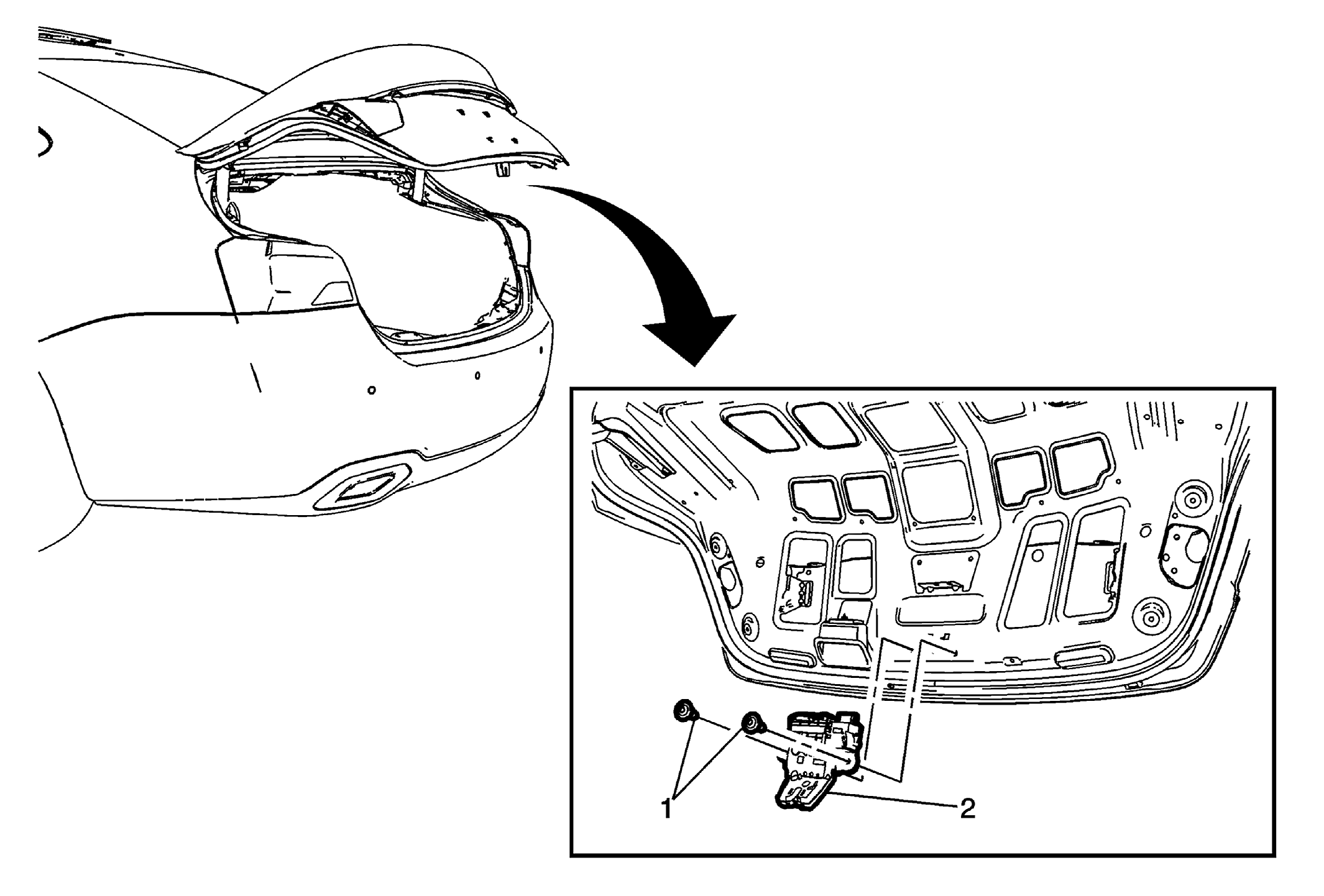

GM2901284

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
Remove the rear compartment lid latch release cable handle. Refer to Rear Compartment Lid Latch Release Cable Handle Replacement

1

Rear Compartment Lid Latch Bolt[2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N. m (80 lb in)

2

Rear Compartment Lid Latch

Procedure

Disconnect the electrical connector.
Slide the rear compartment lid latch to the left side and then remove.
