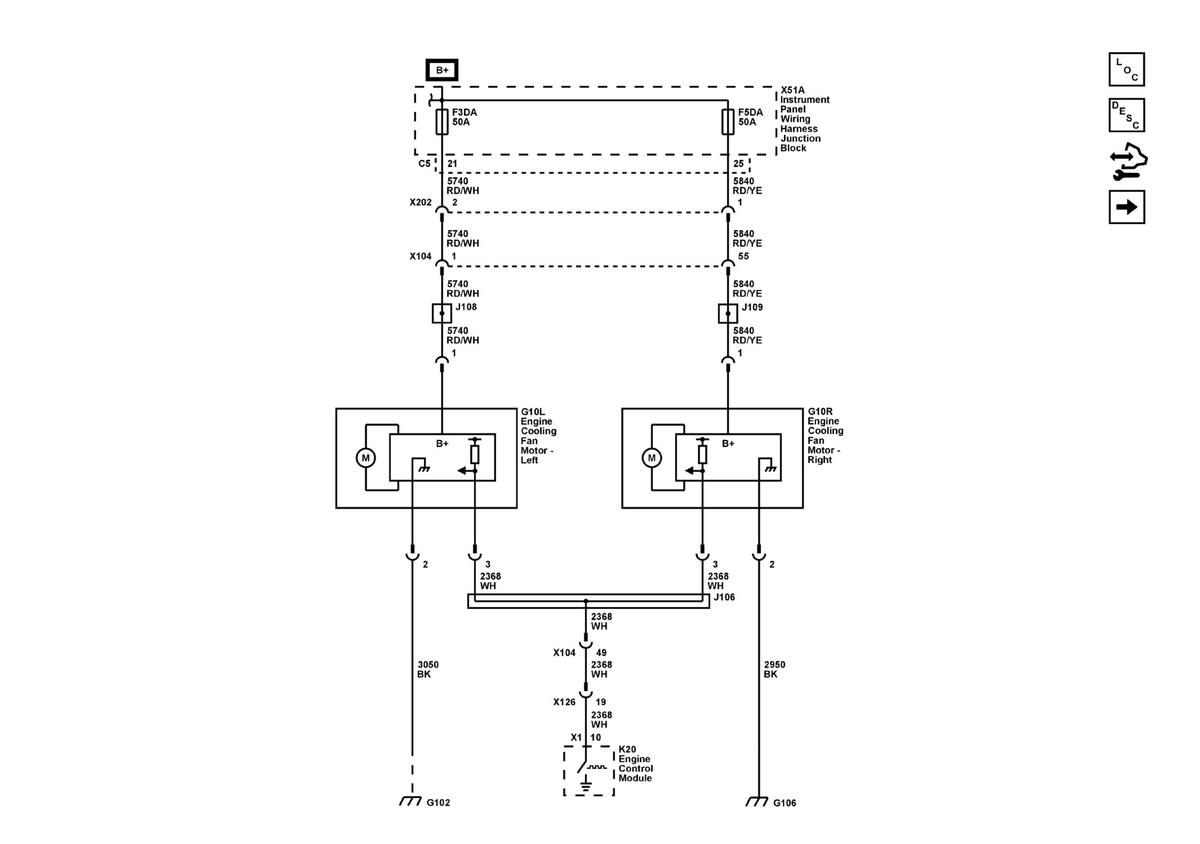

Home >> Chevrolet >> 2020 >> Corvette 2D Convertible >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Heating And Cooling >> Schematic Wiring Diagrams >> Engine Heating/Cooling Wiring Schematics >> Engine Cooling
