Engine Wiring Harness Fuse Block Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

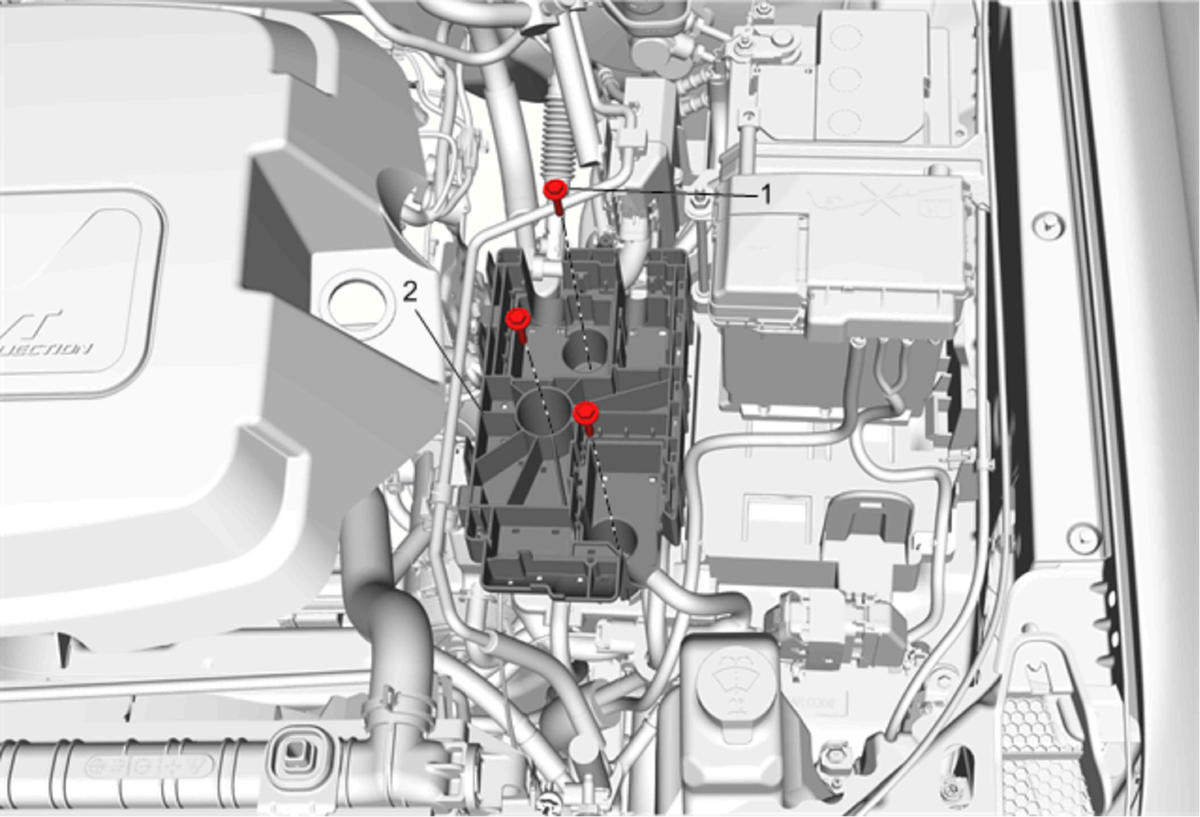

Callout	Component Name
Preliminary Procedures Engine Wiring Harness Junction Block Replacement Unclip the condenser tube from the engine wiring harness fuse block bracket. Condenser Tube Replacement (LCV) , or Condenser Tube Replacement (LWN) , or Condenser Tube Replacement (LGZ) Remove the 3 fuse block electrical connectors from the engine wiring harness fuse block bracket.
1	Engine Wiring Harness Fuse Block Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Engine Wiring Harness Fuse Block Bracket Procedure Disconnect and unclip all necessary electrical components from the engine wiring harness fuse block bracket.

Callout

Component Name

Preliminary Procedures

Engine Wiring Harness Junction Block Replacement
Unclip the condenser tube from the engine wiring harness fuse block bracket. Condenser Tube Replacement (LCV) , or Condenser Tube Replacement (LWN) , or Condenser Tube Replacement (LGZ)
Remove the 3 fuse block electrical connectors from the engine wiring harness fuse block bracket.

Engine Wiring Harness Fuse Block Bracket Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
7 N.m (62 lb in)

Engine Wiring Harness Fuse Block Bracket
Procedure
Disconnect and unclip all necessary electrical components from the engine wiring harness fuse block bracket.
