Battery Tray Replacement

Courtesy of GENERAL MOTORS COMPANY

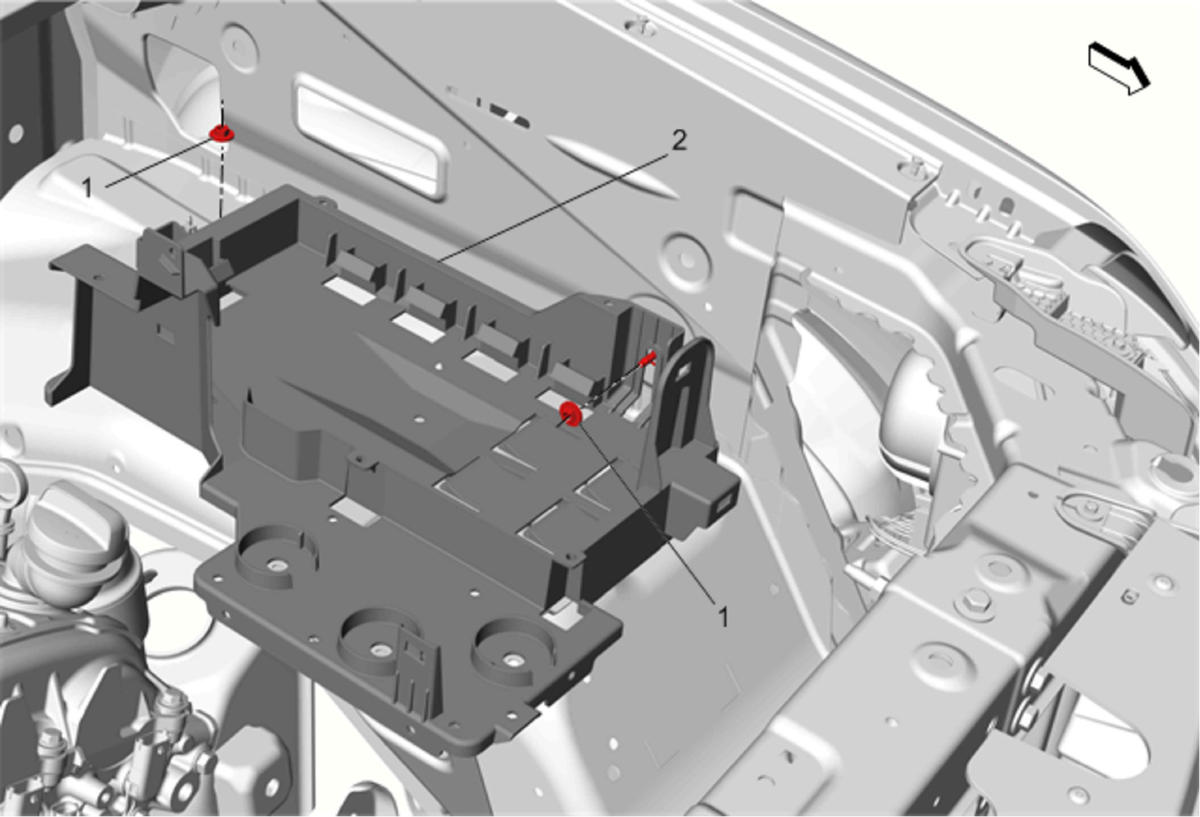

Callout	Component Name
Preliminary Procedures Battery Replacement Engine Wiring Harness Fuse Block Bracket Replacement
1	Battery Tray Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Battery Tray Procedure Disconnect and unclip all necessary electrical components from the battery tray.

Callout

Component Name

Preliminary Procedures

Battery Tray Fastener [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Battery Tray
Procedure
Disconnect and unclip all necessary electrical components from the battery tray.
