Electronic Suspension Front Position Sensor Replacement: Installation
- NOTE:
Ensure that the level senor is properly seated on the frame rail.

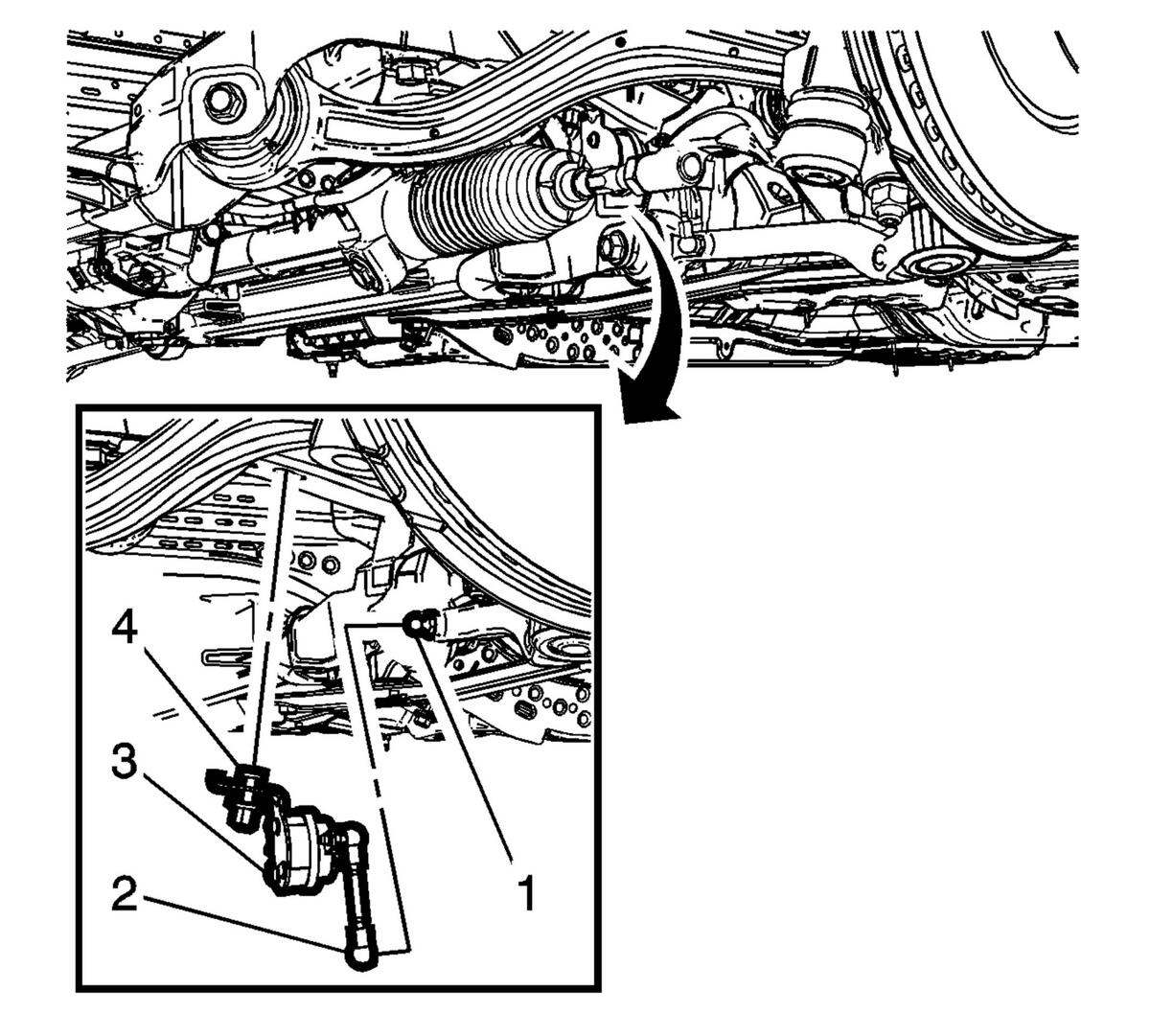

Position the level sensor (3) on the frame rail.
- Tighten the level senor nut (4) to 9 N.m (80 lb in).
- Install the level sensor link (2) on the lower control arm ball stud (1).

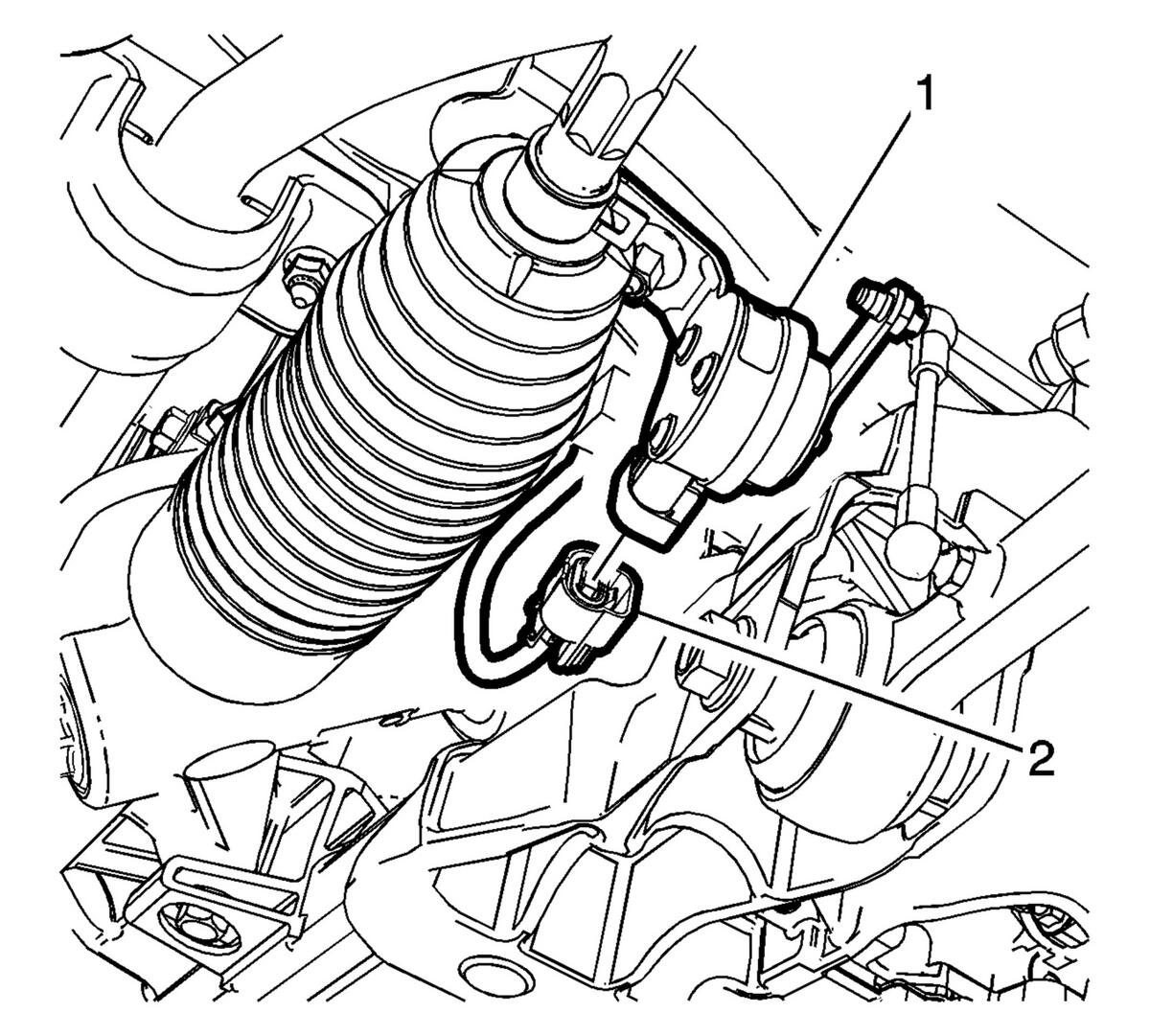

Reconnect the level sensor electrical connector (2) to the electronic level sensor (1).
- Install the front wheel house liner. Refer to Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1) .
- Remove the support and lower the vehicle.
- Reprogram the level sensor.
CAUTION:
Refer to Fastener Caution .
