Installation Procedure

  1. GM4888560Courtesy of GENERAL MOTORS COMPANY

    If you are replacing the battery with a serviced NEW battery, detach the vent plug (1), that comes with the positive post cover.

  2. GM4888677Courtesy of GENERAL MOTORS COMPANY

    Install the vent plug (1), opposite side of the battery vent hose (2).

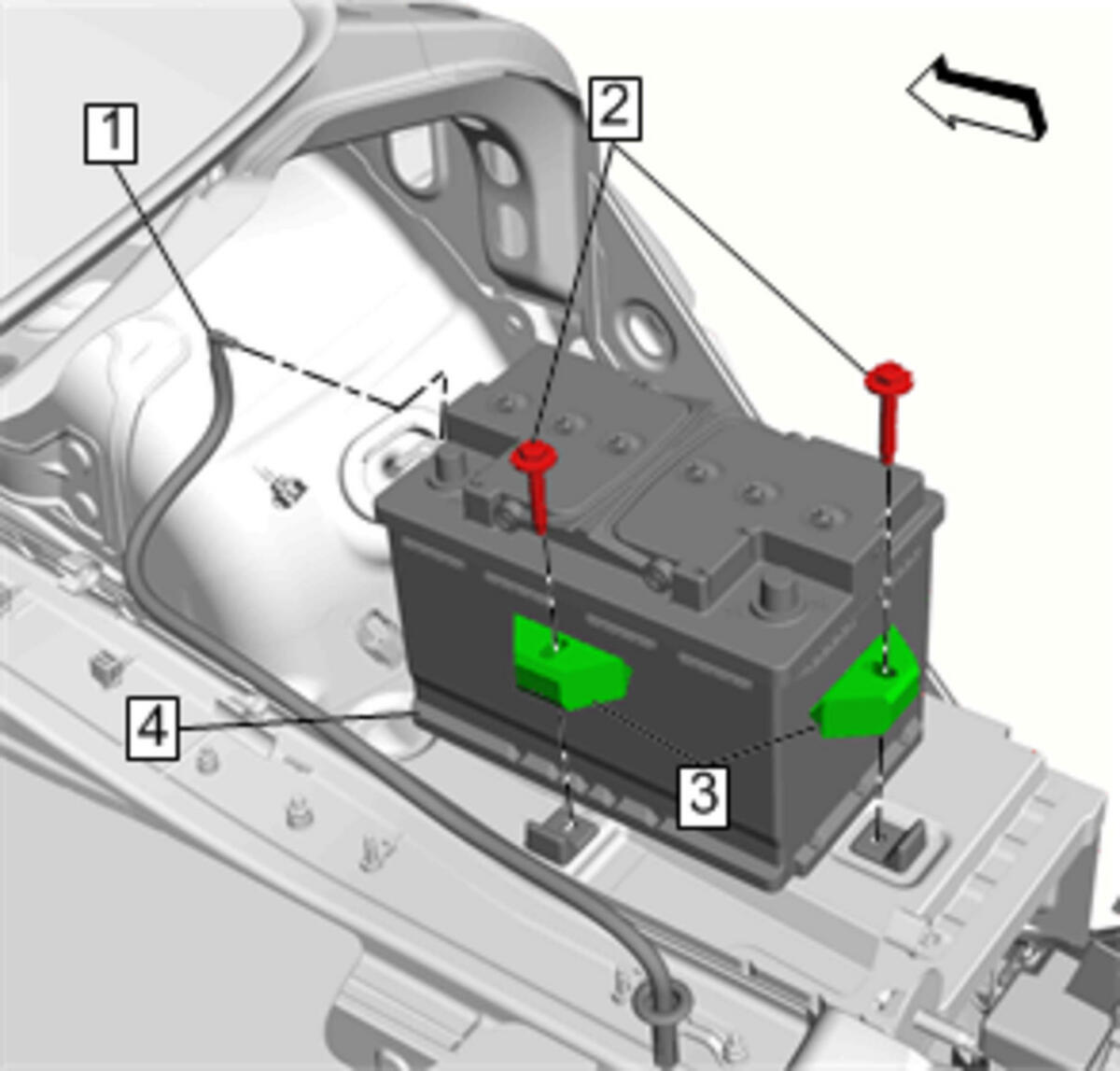

  3. GM4196695Courtesy of GENERAL MOTORS COMPANY

    Battery (4) - Install

  4. Battery Hold Down Retainer (3) - Install [2X]
    5. CAUTION:

    Refer to Fastener Caution

  5. Battery Hold Down Bolt (2) - Install and tighten [2X] 22 N.m (16 lb ft)
  6. Battery Vent Tube (1) - Install

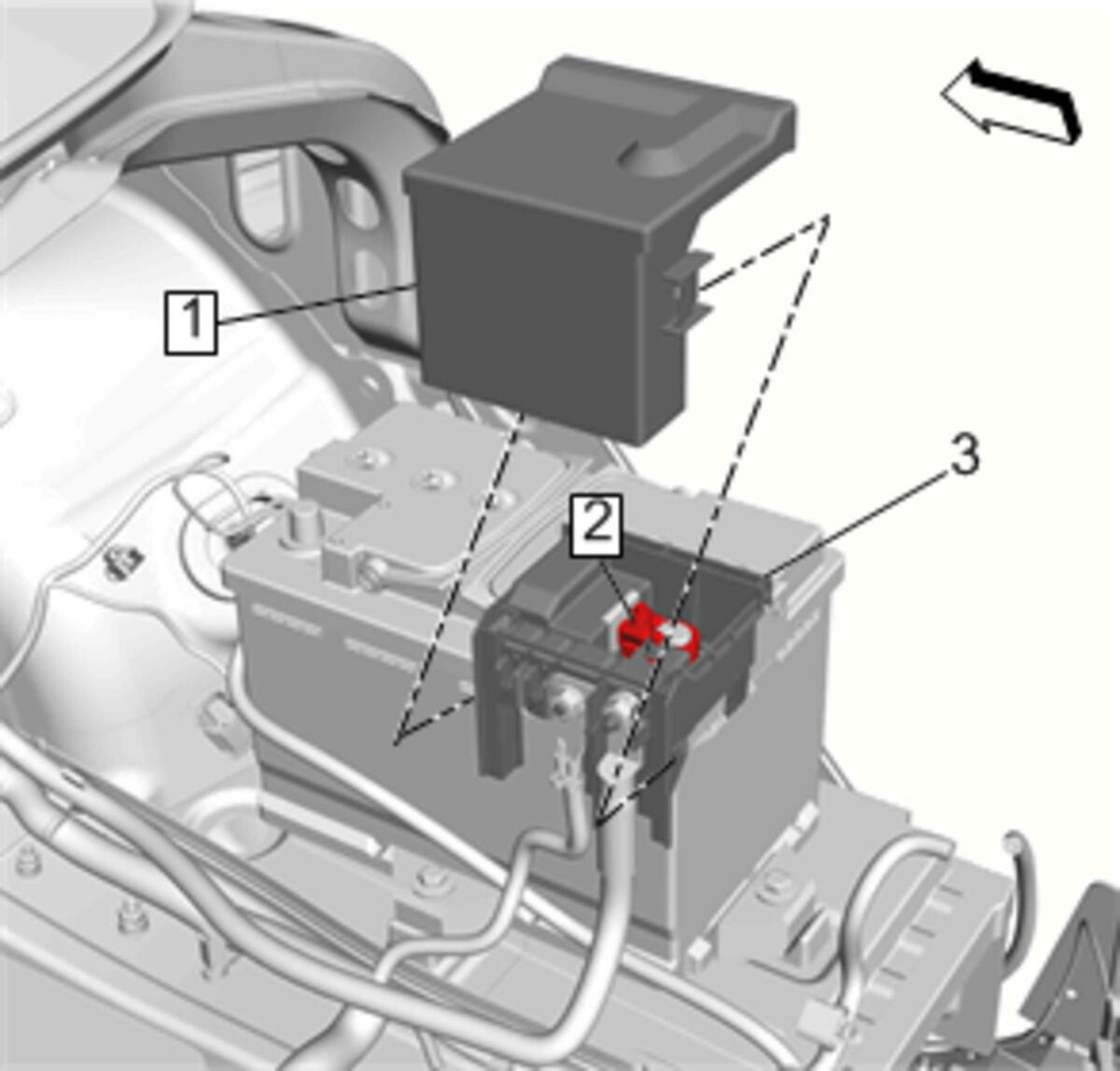

  7. GM4196690Courtesy of GENERAL MOTORS COMPANY

    Rear Body Fuse Block (3) - Install

  8. Battery Positive Post Clamp Nut (2) - Tighten 4.5 N.m (40 lb in)
  9. Rear Body Fuse Block Cover (1) - Install
  10. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  11. Rear Compartment Side Trim Replacement - Right Side (Coupe) , or Rear Compartment Side Trim Replacement - Right Side (Convertible) - Install
