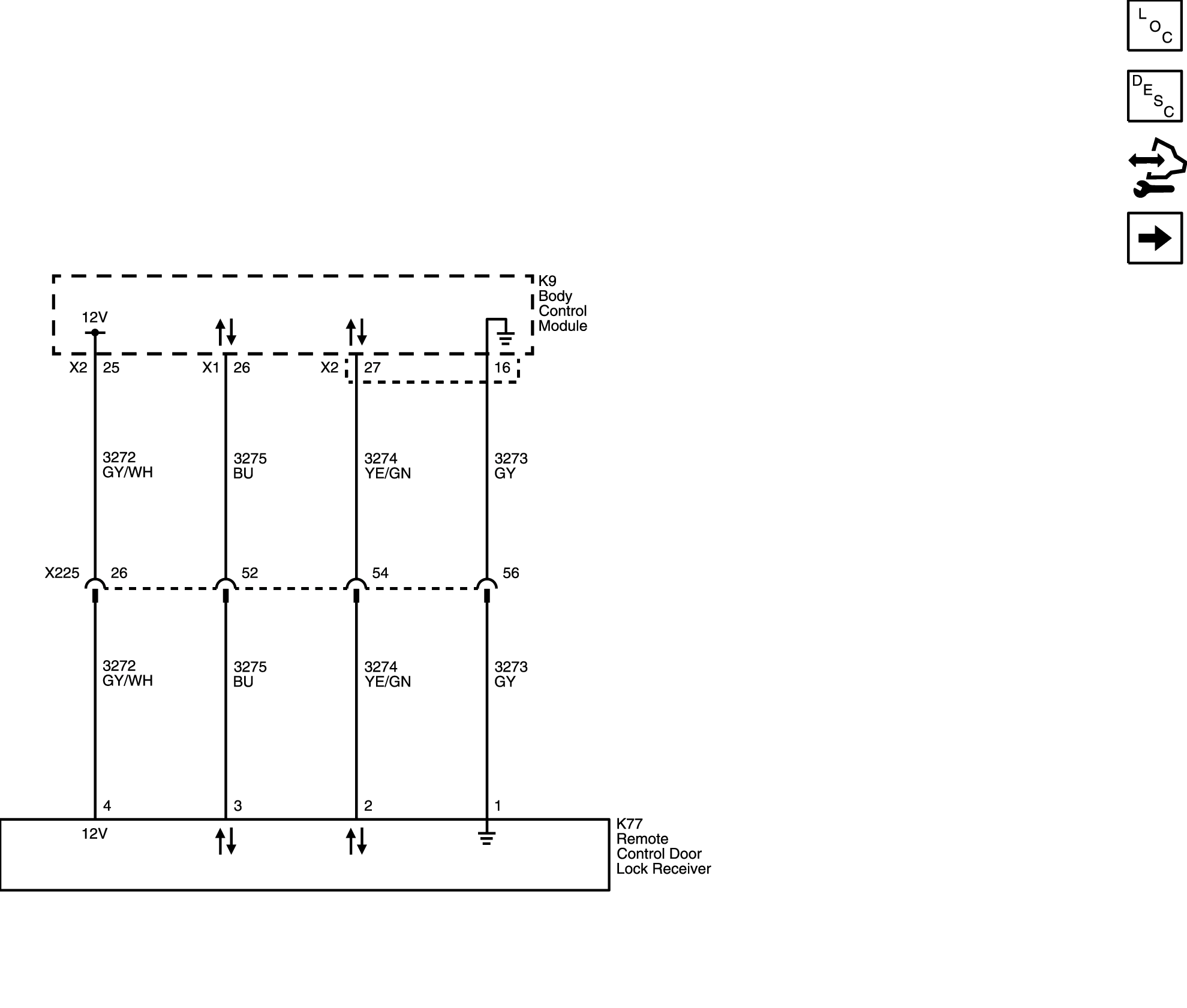

Home >> Chevrolet >> 2020 >> Camaro SS, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
