Installation Procedure

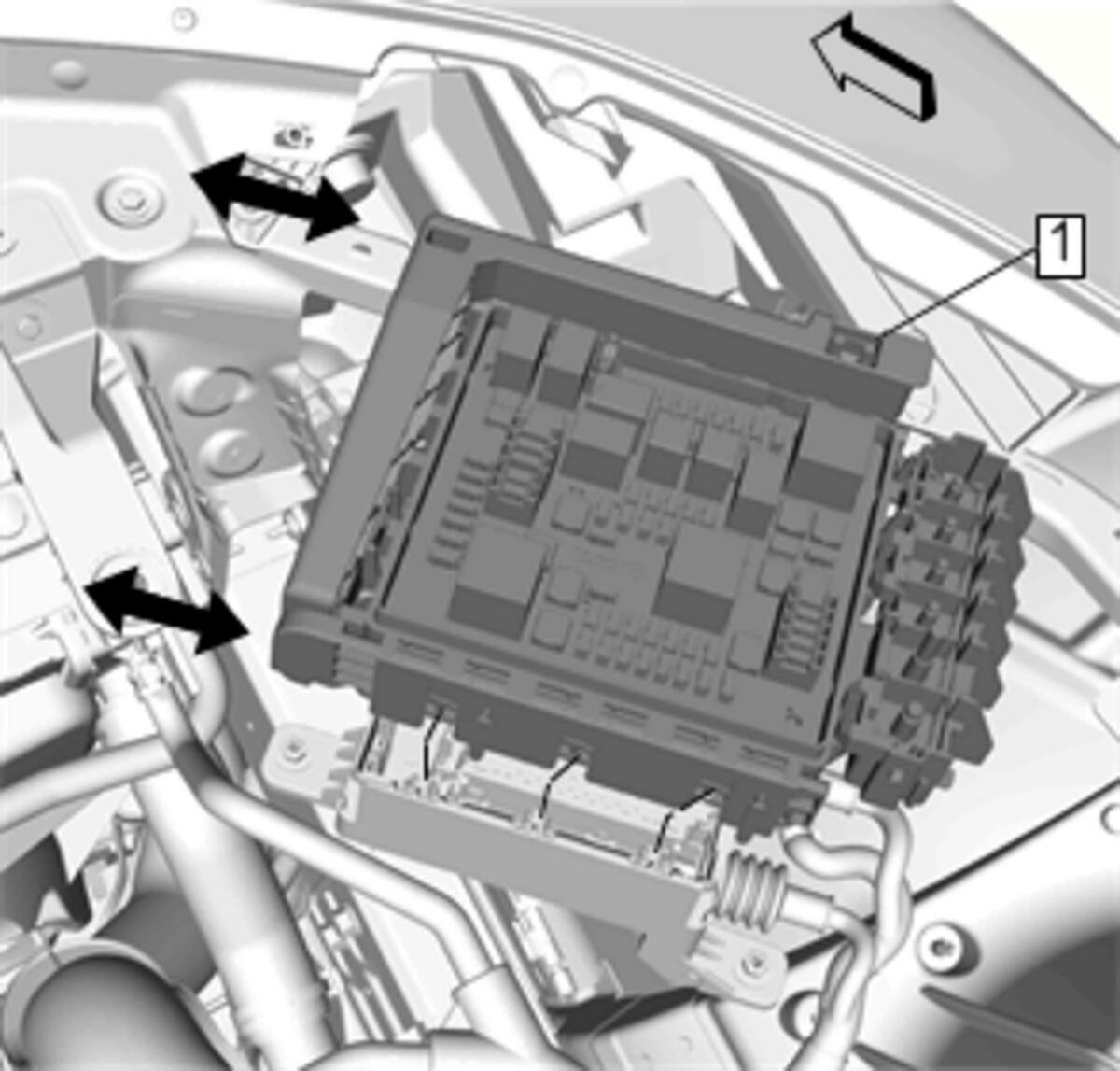

  1. GM4194638Courtesy of GENERAL MOTORS COMPANY

    Install the engine wiring harness junction block (1) to the bracket. Slide the locking bar rearward to lock the engine wiring harness junction block to the bracket.

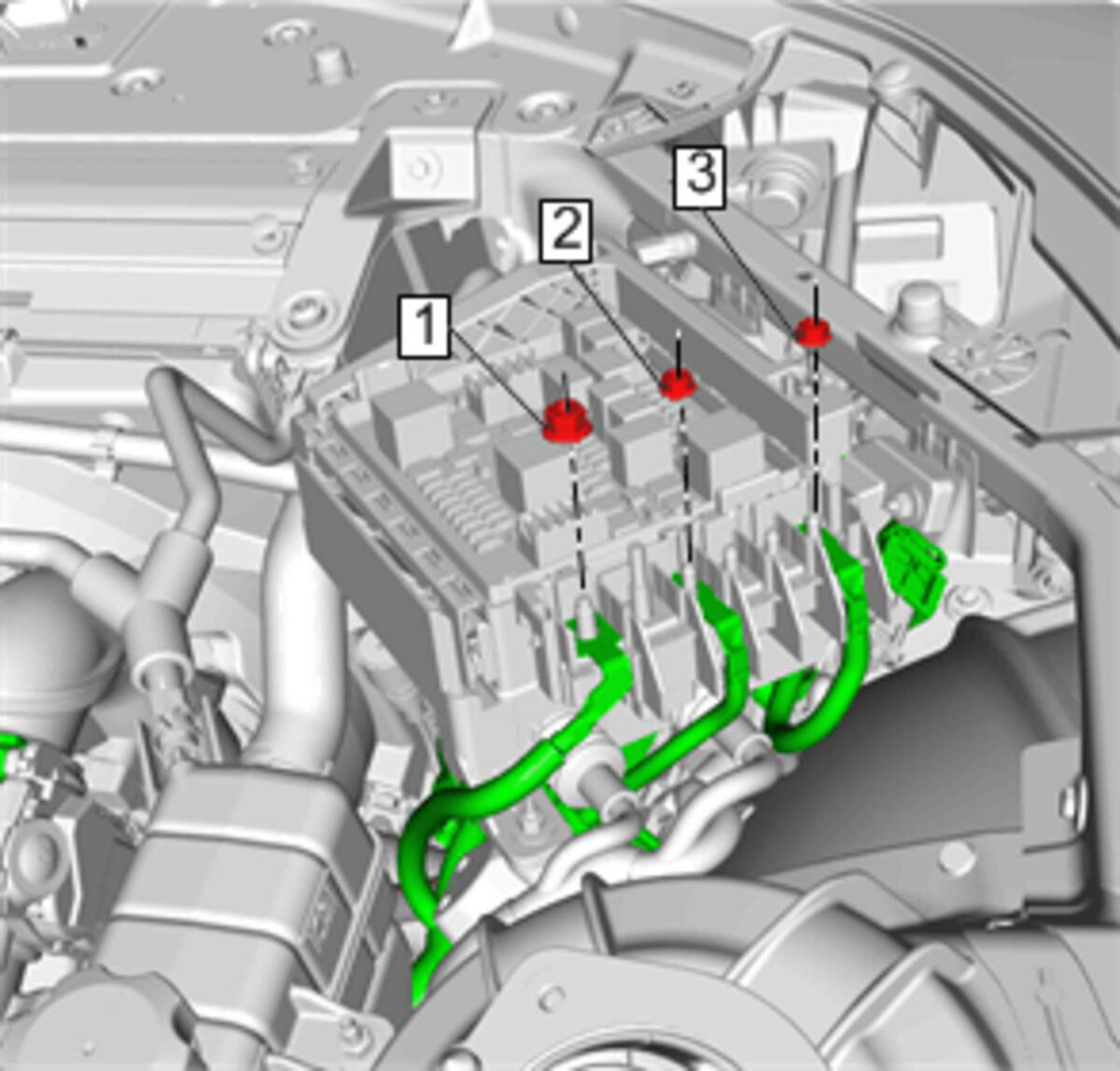

  2. GM4194633Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Engine Wiring Harness Nut. (1) Install and tighten 9 N.m (80 lb in).

  3. Engine Wiring Harness Nut. (2) Install and tighten 9 N.m (80 lb in).
  4. Forward Lamp Wiring Harness Nut. (3) Install and tighten 9 N.m (80 lb in).

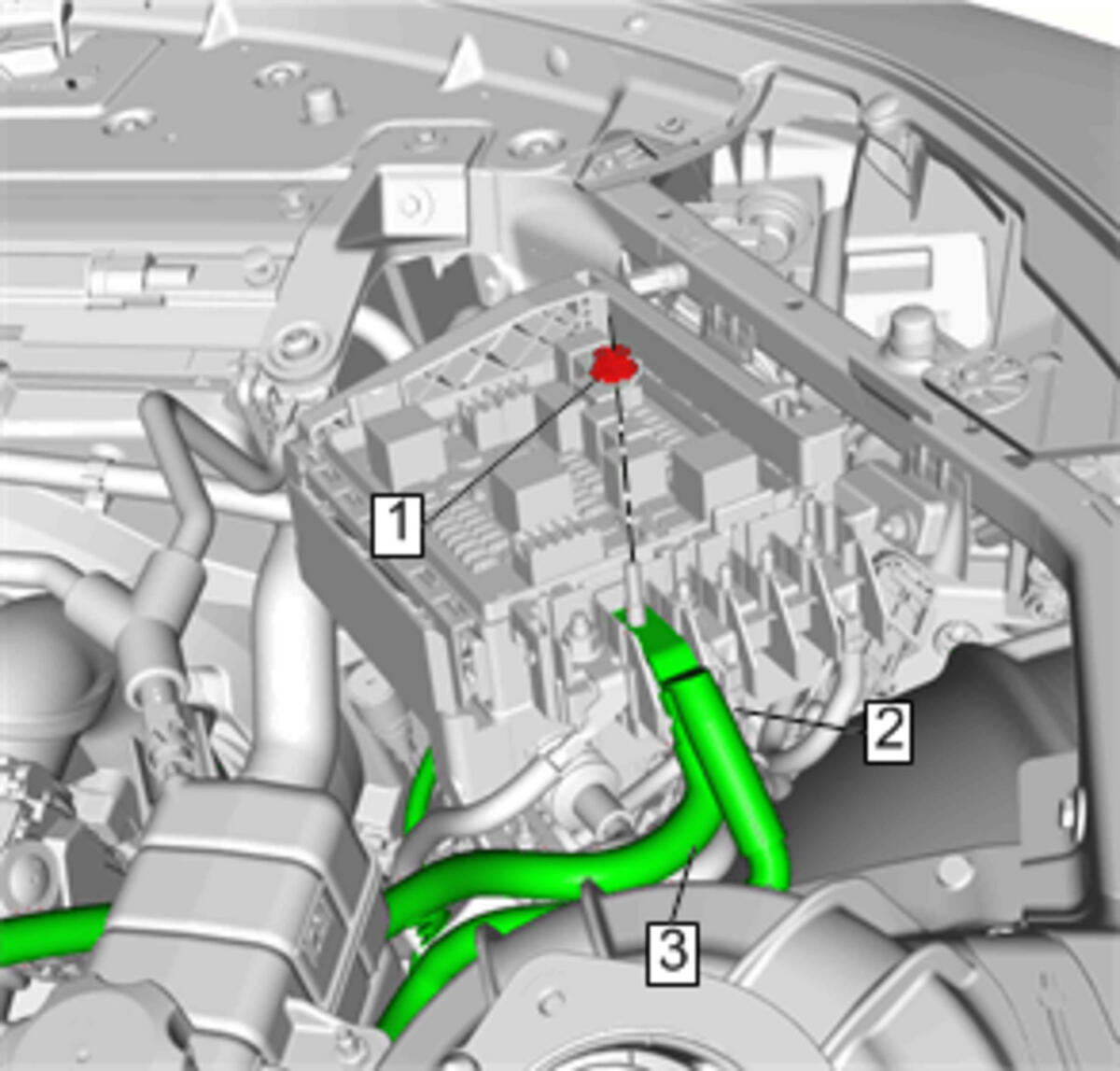

  5. GM4194630Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (2) - Install

  6. Battery Positive Cable Terminal Nut. (1) Install and tighten 12 N.m (106 lb in).

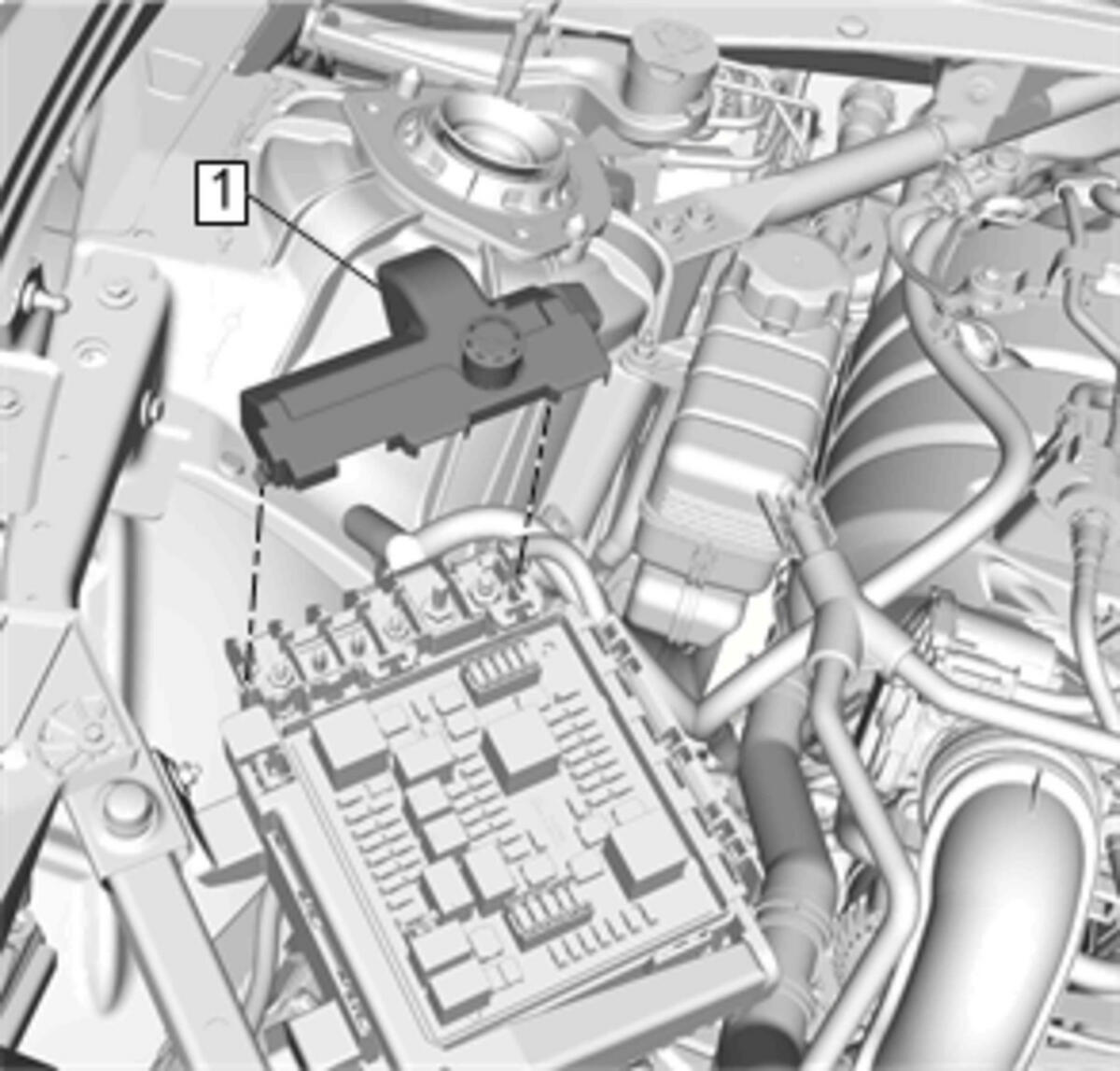

  7. GM4194629Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block Terminal Cover - Install

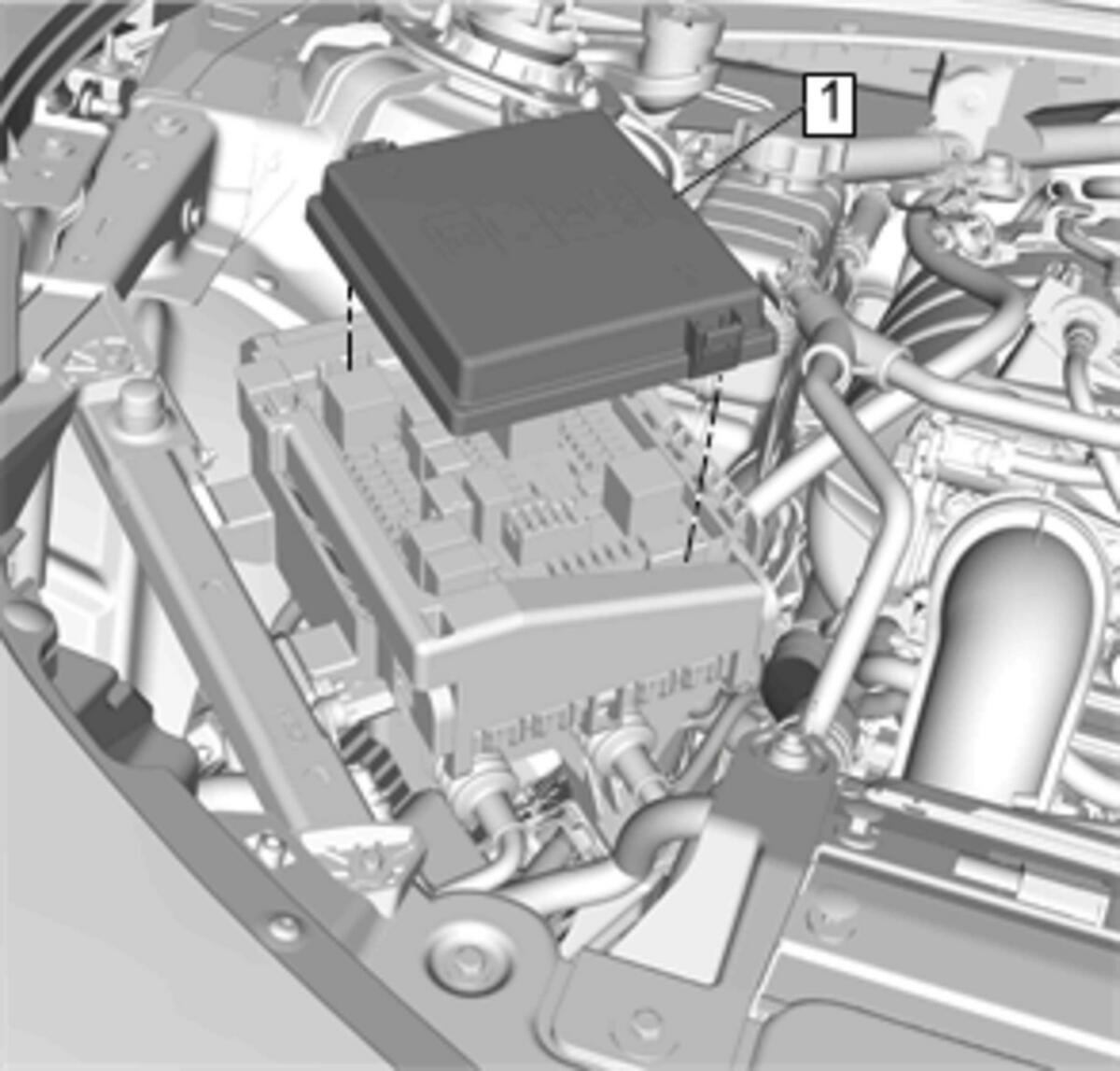

  8. GM4194626Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block Cover - Install

  9. Battery Negative Cable Disconnection and Connection  - Connect
