Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

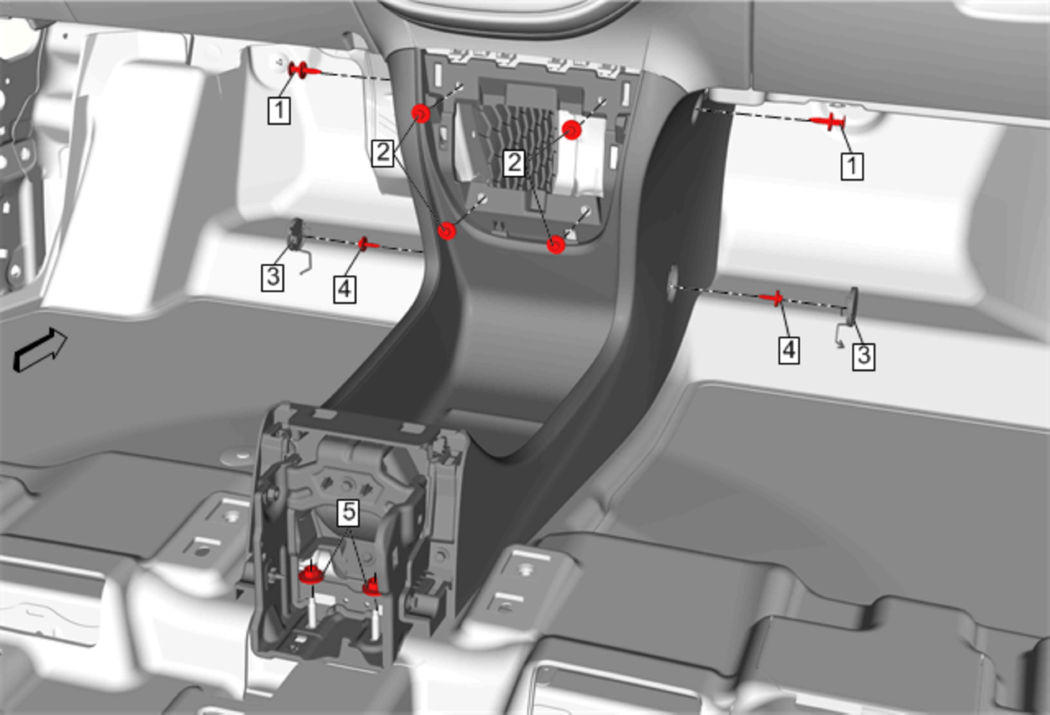

Front Floor Console (1) - Install
Connect the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Front Floor Console Nut (5) - Install and tighten [2x] 5 N.m (44 lb in)
Front Floor Console Bolt (4) - Install and tighten [2x] 3 N.m (27 lb in)
Front Floor Console Cap (3) - Install [2x]
Front Floor Console Bolt (2) - Install and tighten [4x] 3 N.m (27 lb in)
Clip (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

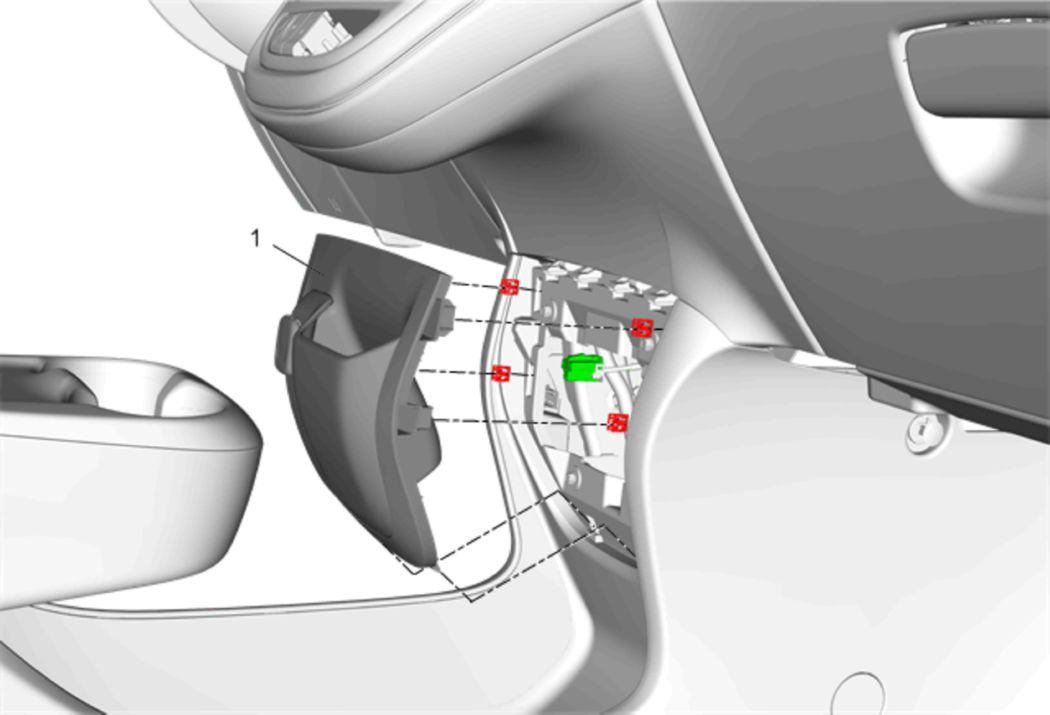

Front Floor Console Compartment Trim Plate (1) - Install - Front Floor Console Compartment Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

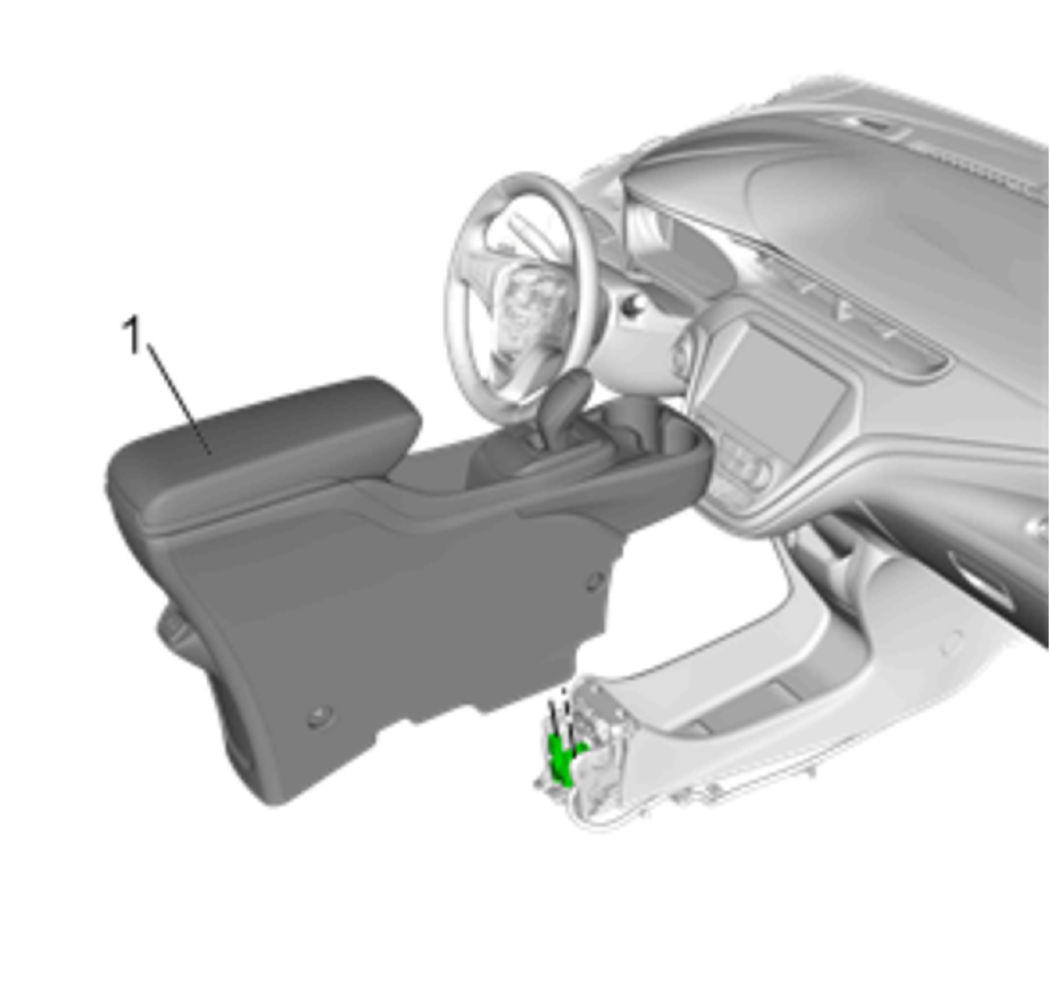

Rear Floor Console (1) - Install - Rear Floor Console Replacement
