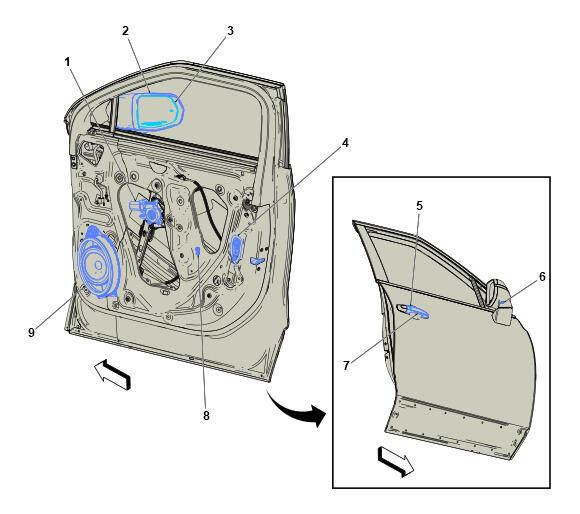

Passenger Door Components
Passenger Door Components
| Component Name | Callout |
|---|---|
| M74P Window Motor - Passenger M74P Window Motor - Passenger | 1 |
| A9B Outside Rearview Mirror - Passenger | 2 |
| E17P Outside Rearview Mirror Glass - Passenger E17P Outside Rearview Mirror Glass - Passenger X1 , or E17P Outside Rearview Mirror Glass - Passenger X2 , or E17P Outside Rearview Mirror Glass - Passenger X3 (UKC) | 3 |
| A23P Door Latch Assembly - Passenger A23P Door Latch Assembly - Passenger | 4 |
| B27P Door Handle Switch - Passenger Exterior | 5 |
| B225R Sideview Camera - Right (UV2) B225R Sideview Camera - Right (UV2) | 6 |
| A24P Door Handle Assembly - Passenger Exterior A24P Door Handle Assembly - Passenger Exterior | 7 |
| B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front | 8 |
| P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door (UQA) , or P19AH Speaker - Right Front Door (UQF) | 9 |
