Removal Procedure

    WARNING:

    Refer to SIR Warning .

  1. Disable the SIR system. SIR Disabling and Enabling
  2. With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - Steering Wheel Wiring Schematics
  3. GM4116907Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Remove - Instrument Panel Knee Bolster Replacement

  4. GM4116910Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (1) - Remove - Instrument Panel Lower Airbag Replacement - Driver Side

  5. GM4116912Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (1) - Remove - Floor Front Air Outlet Duct Replacement - Left Side

  6. GM4116915Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Reposition the steering column upper trim cover as necessary.

    Steering Column Lower Trim Cover (1) - Remove - Steering Column Lower Trim Cover Replacement

  7. CAUTION:

    With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:

    • The steering column
    • The intermediate shaft (s)
    • The steering gear

    After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.

  8. With the steering wheel in the straight ahead position, LOCK the steering column.
  9. GM4116920Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Place match marks on the steering column shaft and the intermediate steering shaft to aid in installation.

    Intermediate Steering Shaft (1) @ Steering Column - Separate - Intermediate Steering Shaft Replacement

  10. Disconnect the steering column electrical connectors as necessary.
  11. GM4116922Courtesy of GENERAL MOTORS COMPANY

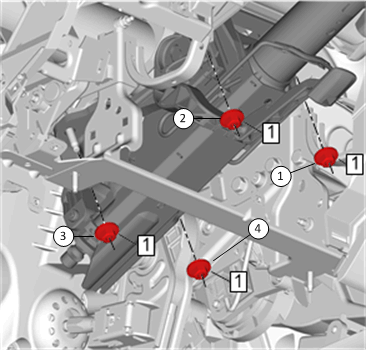

    Steering Column Nut (1) - Remove [4x]

  12. GM4116926Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Once the steering column is removed from the vehicle, the column is extremely susceptible to damage. Dropping the column assembly on the end could collapse the steering shaft or loosen the plastic injections, which maintain column rigidity. Leaning on the column assembly could cause the jacket to bend or deform. Any of the above damage could impair the columns collapsible design. Do NOT hammer on the end of the shaft, because hammering could loosen the plastic injections, which maintain column rigidity. If you need to remove the steering wheel, refer to the Steering Wheel Replacement procedure in this section.

    Remove the steering column (1) from the vehicle.

  13. If replacing the steering column, transfer components as necessary.
  14. If replacing the steering column, copy the match marks from the OLD steering column to the NEW steering column.
