Drive Motor Battery Coolant Level Sensor Replacement

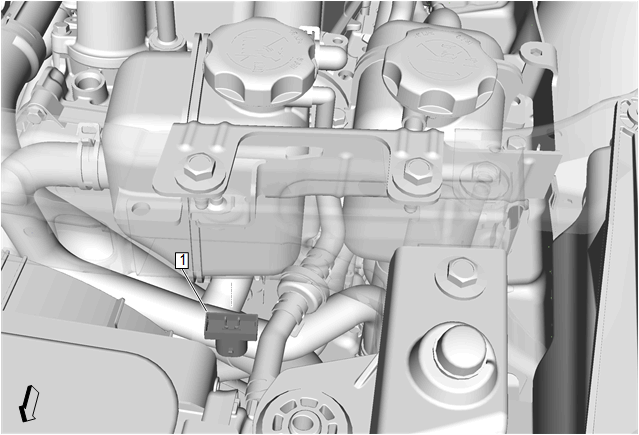

GM5401317Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Disconnect the electrical connector from the drive motor battery coolant level sensor.
1 Drive Motor Battery Coolant Level Sensor
