Q8 Control Solenoid Valve Assembly
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
|
|

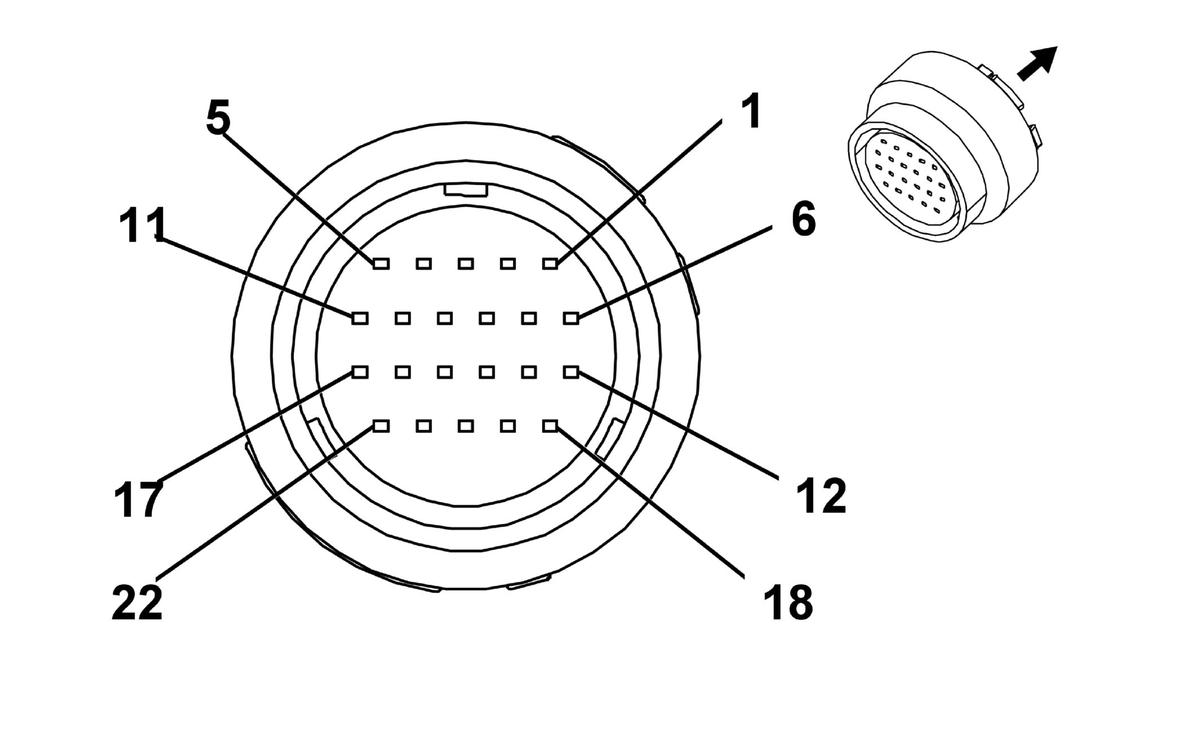

Connector Part Information
- Harness Type: Engine
- OEM Connector: 7283-8750-30
- Service Connector: 19333489
- Description: 22-Way F 090 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19329957 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/GY |
1525 |
Shift Solenoid Control 1 |
I |
- |
| 2 |
0.5 |
YE/VT |
1526 |
Shift Solenoid Control 2 |
I |
- |
| 3 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
BN/GN |
1527 |
Shift Solenoid Control 3 |
I |
- |
| 7 |
0.5 |
BU/VT |
1528 |
Shift Solenoid Control 4 |
I |
- |
| 8 |
0.5 |
BN/VT |
1529 |
Shift Solenoid Control 5 |
I |
- |
| 9 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.5 |
BN/WH |
585 |
Transmission Oil Temperature Sensor Signal |
I |
- |
| 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.5 |
YE/BN |
331 |
Oil Pressure Sensor Signal |
I |
- |
| 15 |
0.5 |
GY/BK |
5658 |
Transmission Manual/Automatic Select Direction Signal |
I |
- |
| 16 |
0.5 |
YE |
5642 |
Transmission Manual/Automatic Data Clock |
I |
- |
| 17 |
0.5 |
YE/BU |
5643 |
Transmission Manual/Automatic Data Output |
I |
- |
| 18 |
0.5 |
BK/BN |
586 |
Transmission Oil Temperature Sensor Low Reference |
I |
- |
| 19 - 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.5 |
YE/BU |
4171 |
Transmission Position Sensor A 9V Reference |
I |
- |
