Rear Seat Heater Control Module Replacement

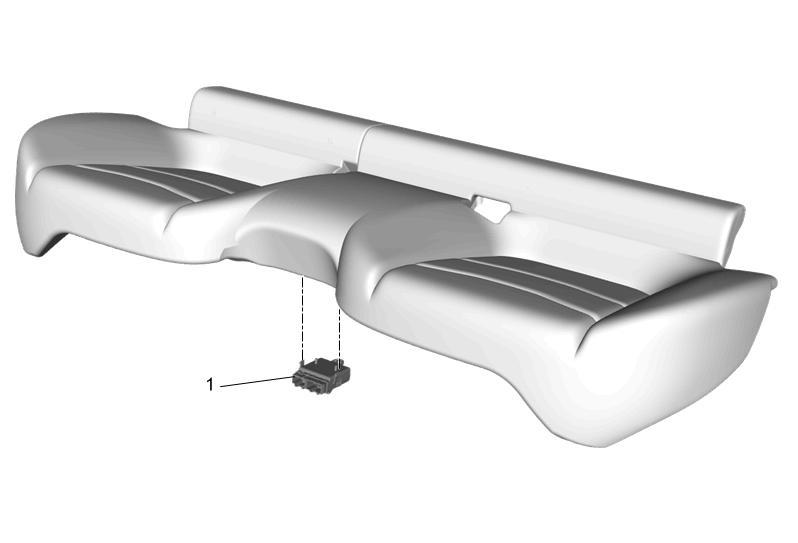

GM4116374Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Cushion Removal and Installation
1 Rear Seat Heater Control Module
