Home >> Chevrolet >> 2019 >> Volt Premier >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

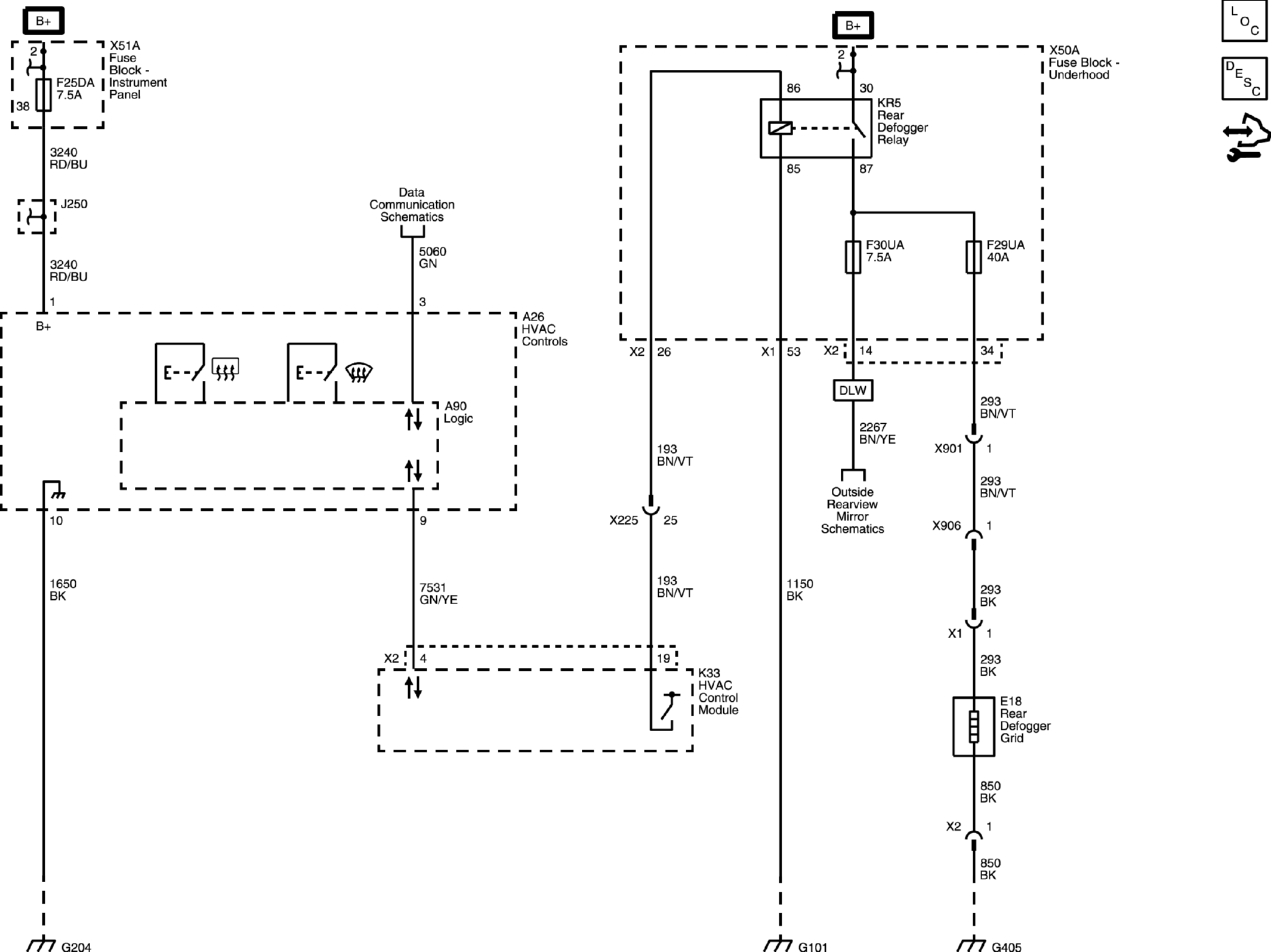

Defogger Wiring Schematics: Defogger

GM4892313

Courtesy of GENERAL MOTORS COMPANY
