UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 4

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Wheelhouse Liner Replacement

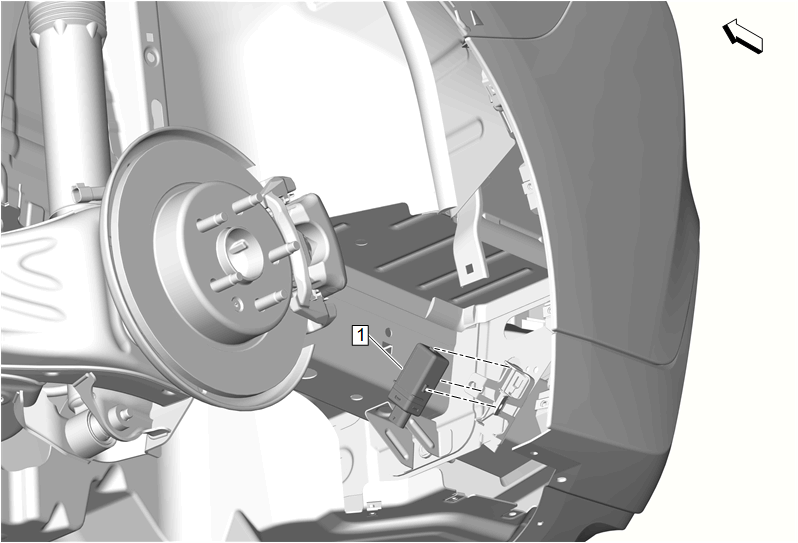

1	UHF Low Energy Remote Control Access Sensor Transceiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

UHF Low Energy Remote Control Access Sensor Transceiver

Procedure
