Liftgate Outside Handle Replacement

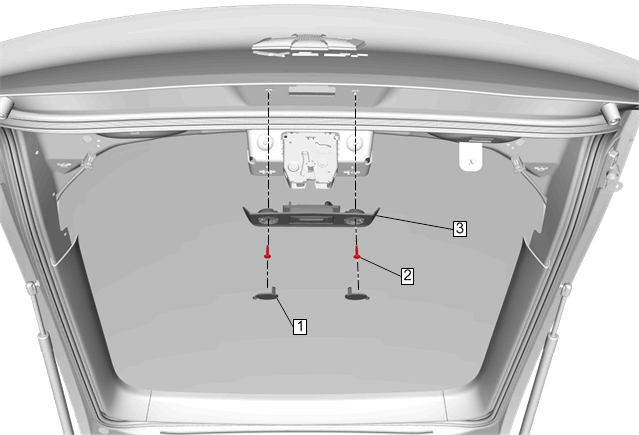

GM4144042Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Lower Trim Finish Panel Replacement .
1 Liftgate Outside Handle Bolt Cap [2x]
2 Liftgate Outside Handle Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2. 5 N. m (22 lb in)
3 Liftgate Outside Handle

Procedure

  1. Release the retainers.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
