Front Side Door Locking Rod Replacement

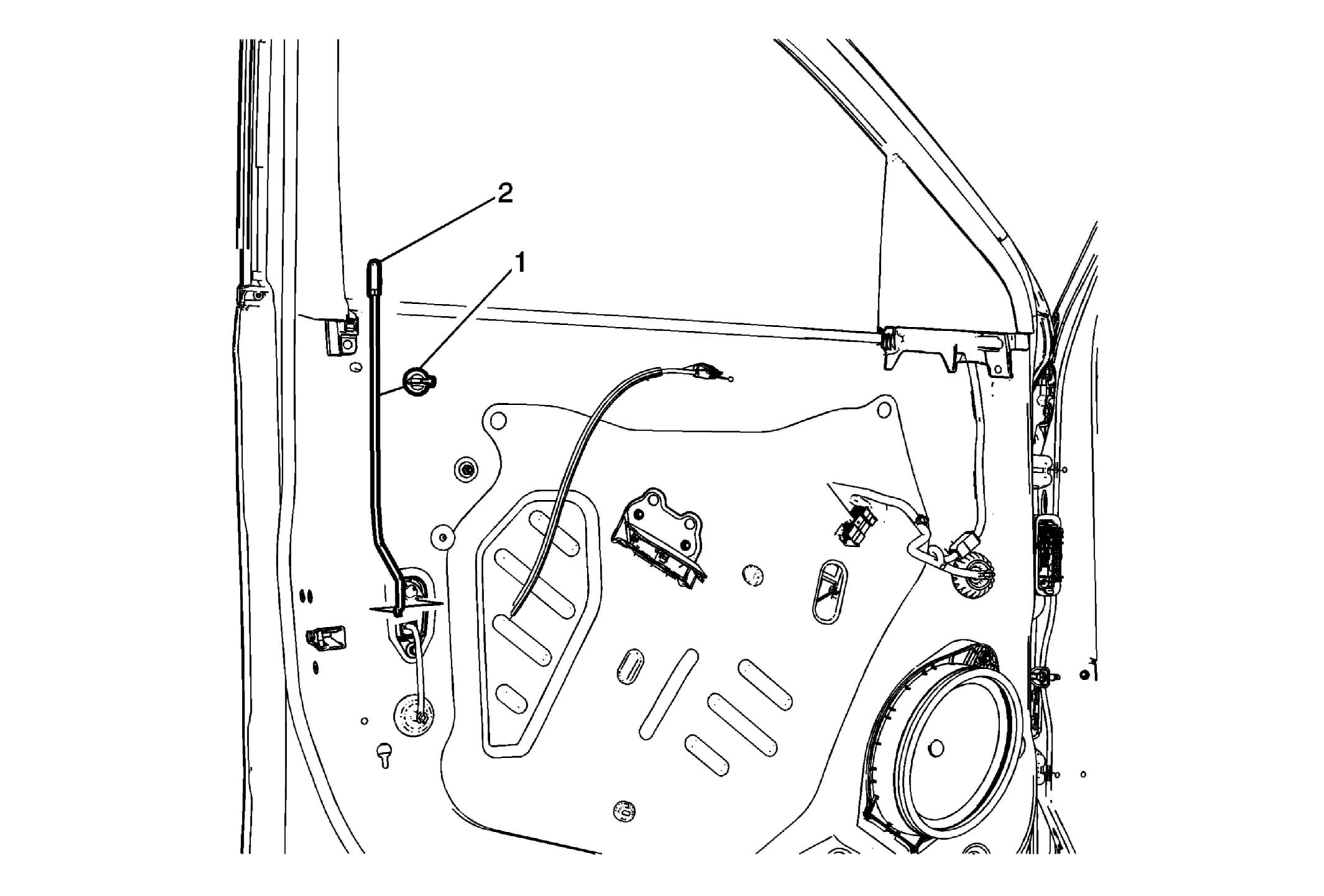

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Locking Rod Clip Procedure Release the locking rod from the clip. |
| 2 | Front Side Door Locking Rod Procedure Turn the locking rod downward, pull outward while turning, releasing it from the latch.
NOTE:
Ensure that the door lock system operates properly before installing the trim. |
