Instrument Panel Switch Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

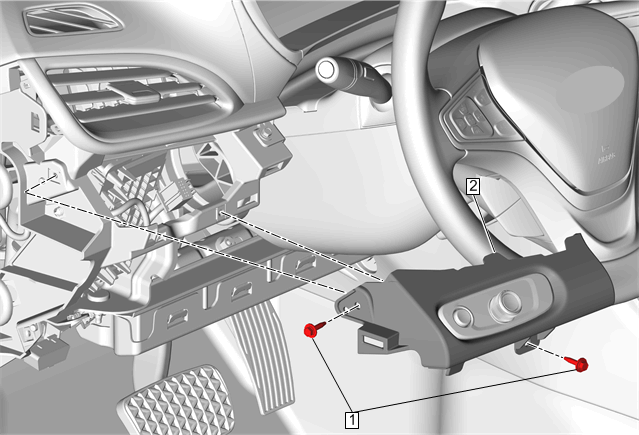

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement
1	Instrument Panel Switch Trim Plate Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Switch Trim Plate Procedure Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Instrument Panel Switch Trim Plate Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Switch Trim Plate

Procedure
