Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (1) @ Front Floor Console Assembly - Install
Courtesy of GENERAL MOTORS COMPANY

Attach the ends of the Front Floor Console Armrest Hinge (1) to the Hinge Arm.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment Door Hinge Pin (1) @ Armrest Assembly - Install
Courtesy of GENERAL MOTORS COMPANY

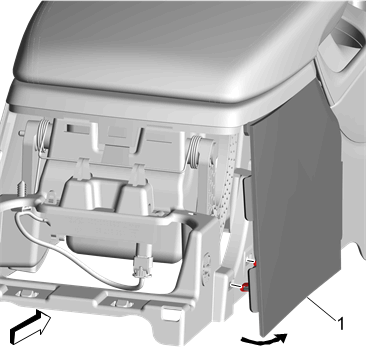

Front Floor Rear Console Side Trim Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest Hinge Washer (2) - Install
Front Floor Console Armrest Clip Hinge Retention (1) @ Hinge Pin - Install
Front Floor Console Rear Cup Holder Replacement - Install
