Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Clean and smooth the rough edges, and remove any burs of plastic from heater and air conditioning evaporator and blower lower module case, where the original blower motor assembly was cut out of the heater and air conditioning evaporator and blower lower module case.

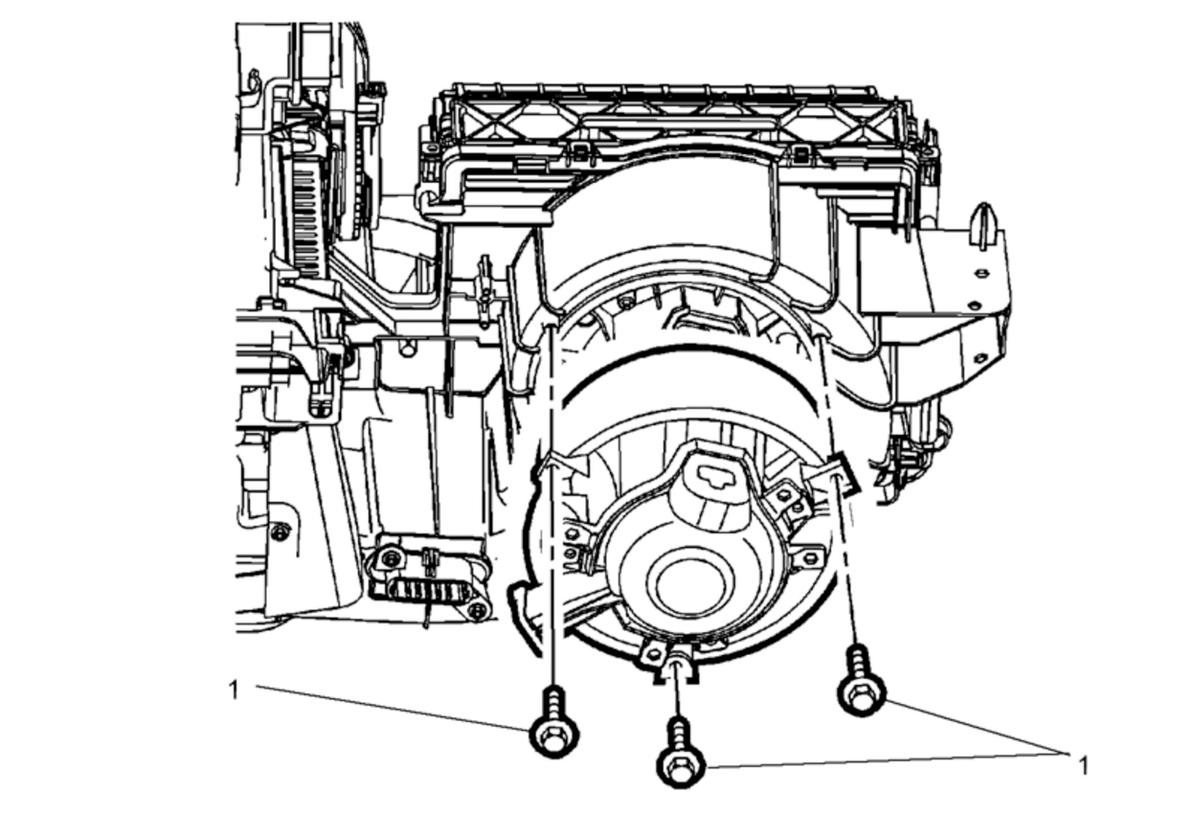

- Attach the blower service ring to the blower motor assembly using service screws (1).
- When using the original blower motor assembly that has been cut out of the lower case, install the blower motor assembly with the service ring assembly to the heater and air conditioning evaporator and blower module lower case, with the additional service screws (1), and tighten the screws.
- When using the service blower motor kit, install the service blower motor assembly to the heater and air conditioning evaporator and blower lower module case, with additional service screws (1), and tighten the screws.

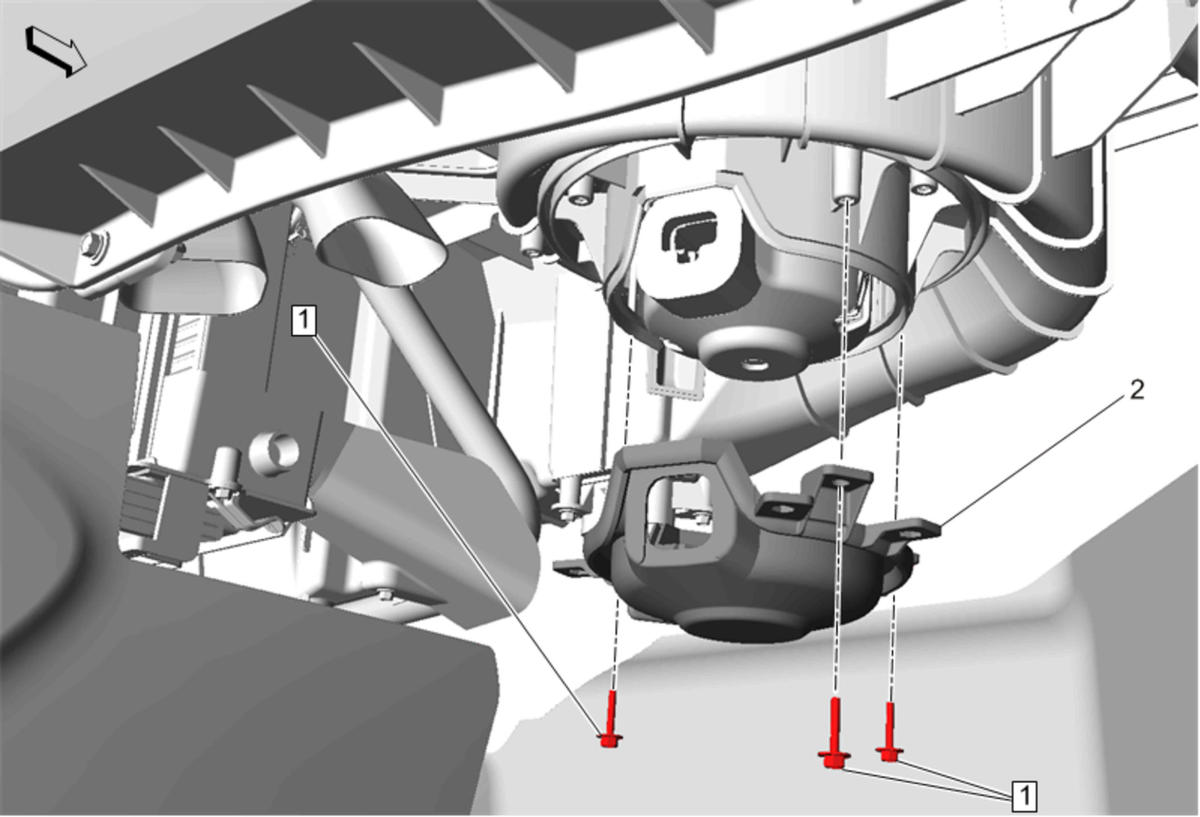

{ If equipped }Blower Motor Cover (2) - Install
- Blower Motor Cover Screw (1) - Install and tighten1.5 N.m (13 lb in)
- Connect the electrical connector.
- Floor Front Air Outlet Duct - Right Side - Install - Floor Front Air Outlet Duct Replacement - Right Side
CAUTION:
Refer to Fastener Caution .
