Installation Procedure

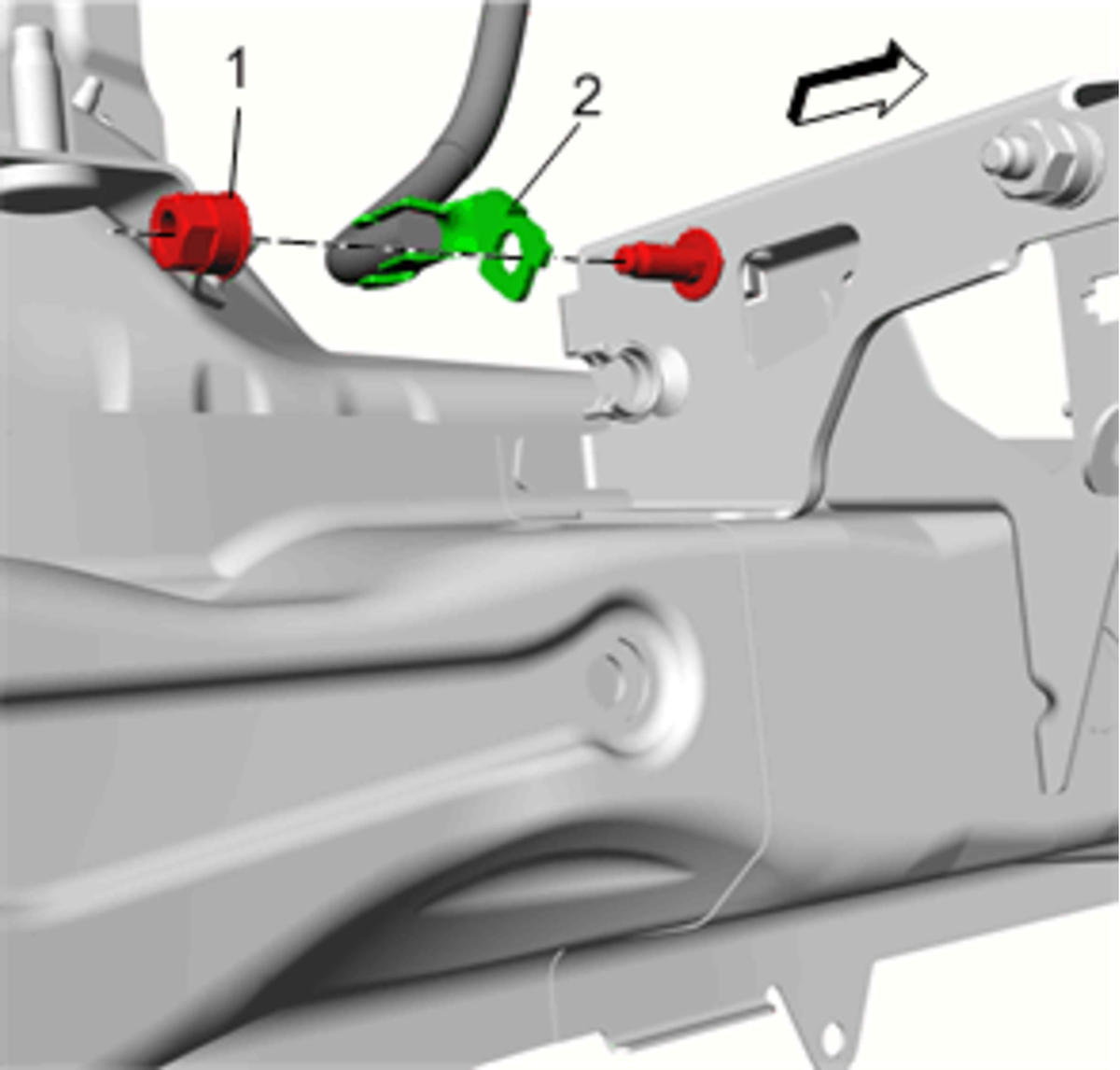

  1. GM4098013Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Battery Negative Cable Frame Ground Fastener (1) - Install and tighten 9 N.m (80 lb in)
  3. Install the battery tray. Battery Tray Replacement
  4. GM4098029Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (2) - Install

  5. Battery Negative Cable Nut (3) - Install and tighten 11 N.m (97 lb in)
  6. GM4098026Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)
