Antilock Brake System Wiring Schematics (Encore)
>>

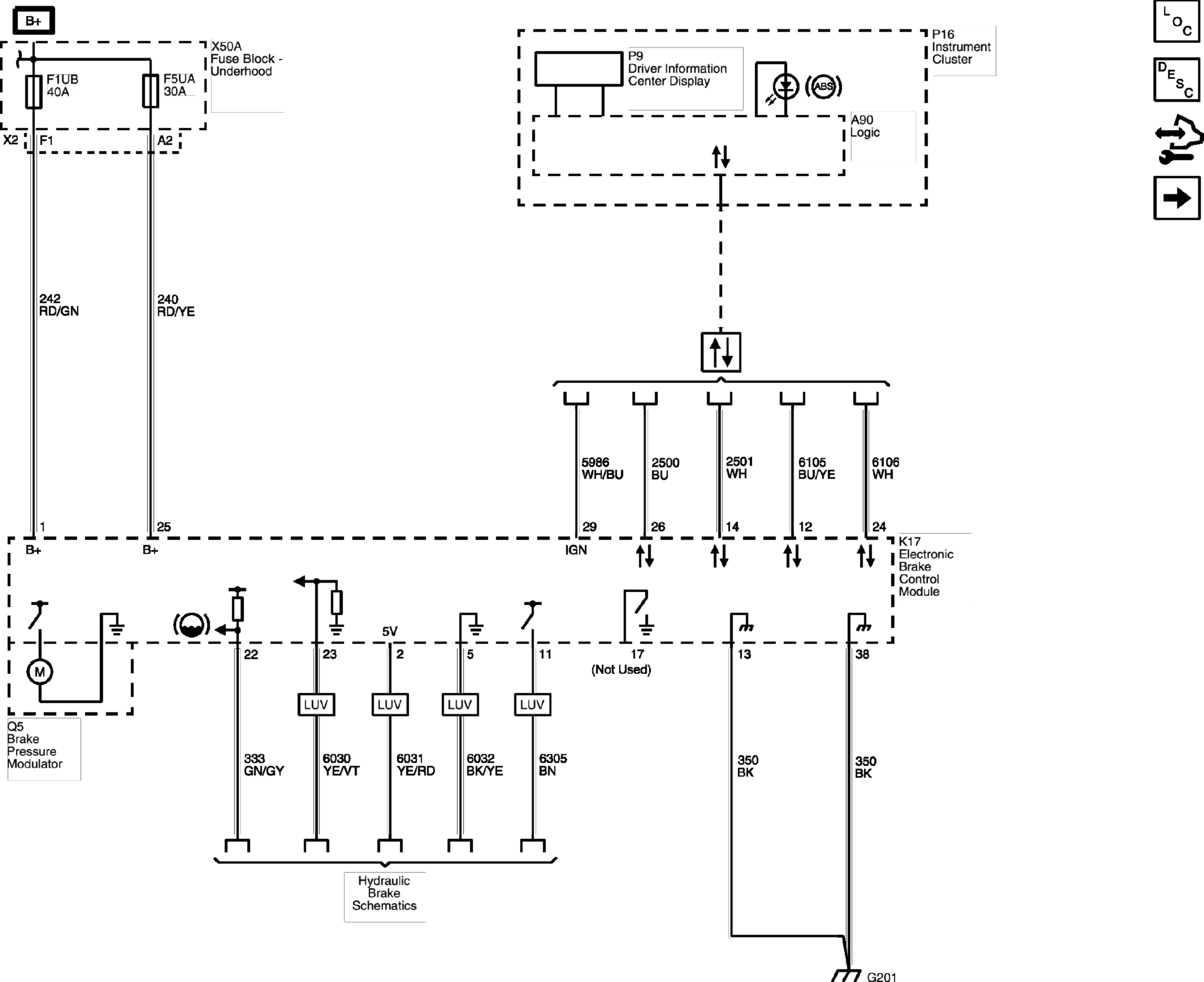

Module Power, Ground and Subsystem References (Encore)
Module Power, Ground and Subsystem References (Encore)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
