Front Seat Back Lumbar Replacement

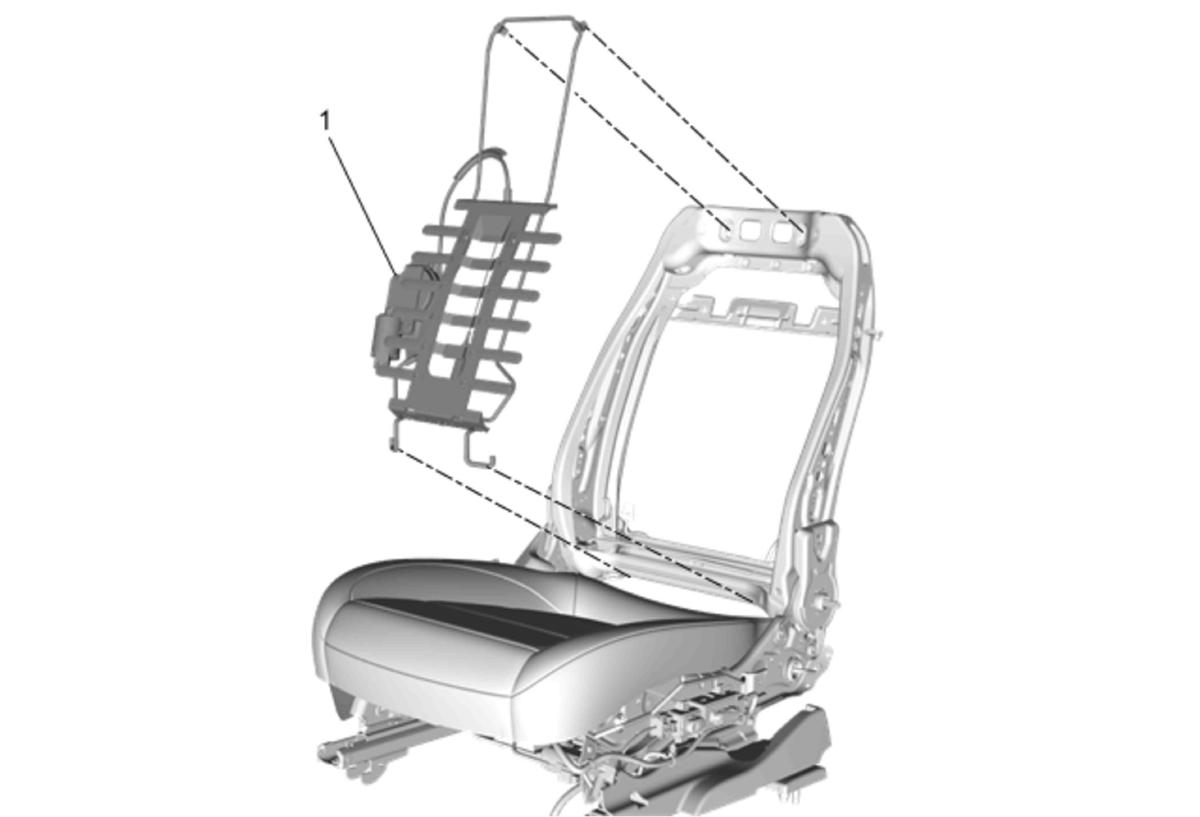

GM4163702Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Back Cover and Pad Replacement
1 Front Seat Back Lumbar
