Installation Procedure

  1. GM4726132Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket (1) - Install

  2. GM4726131Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Serial Data Gateway Module Bracket Bolt (1) - Install and tighten 1.8 N.m (16 lb in)

  3. GM4726130Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module Bracket Bolt (1) - Install and tighten 1.8 N.m (16 lb in)

  4. GM4726129Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install

  5. Connect the electrical connector.
  6. GM4726124Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag Bracket (1) - Install

  7. GM4726118Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag Bracket Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

  8. GM4726112Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

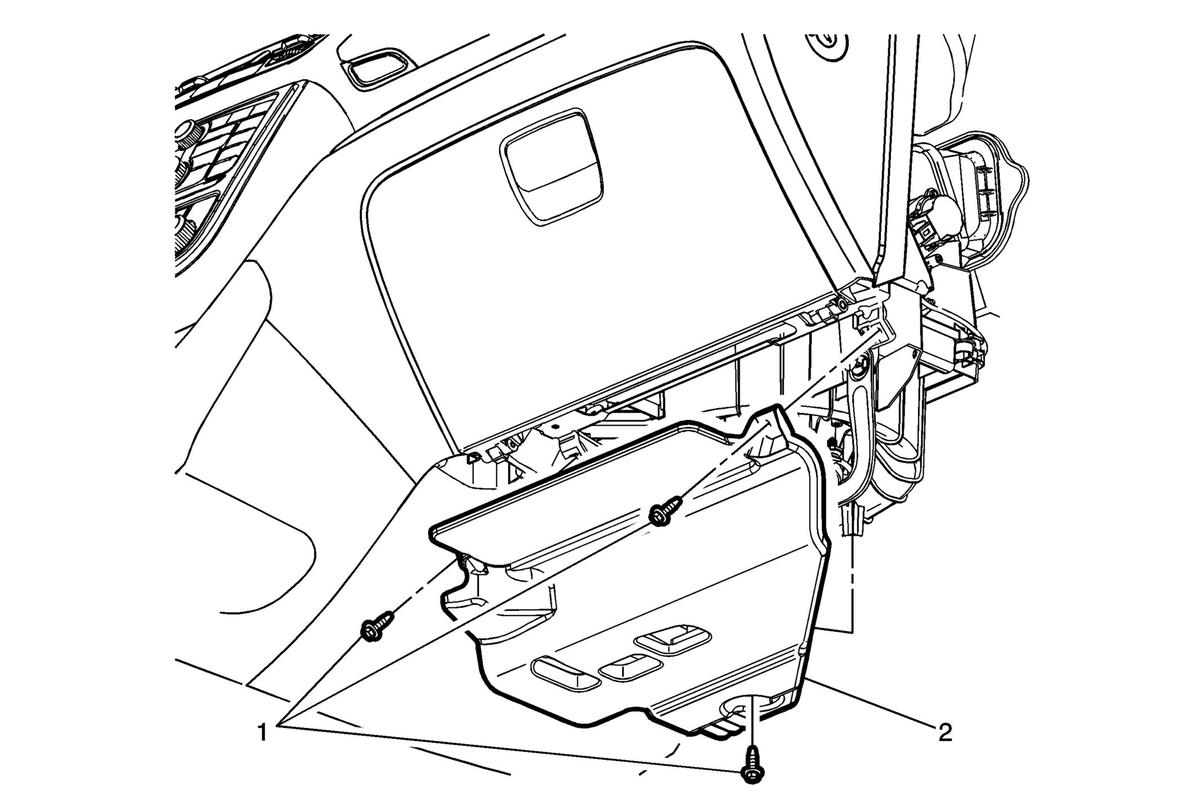

  9. GM2784844Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement (Trax)

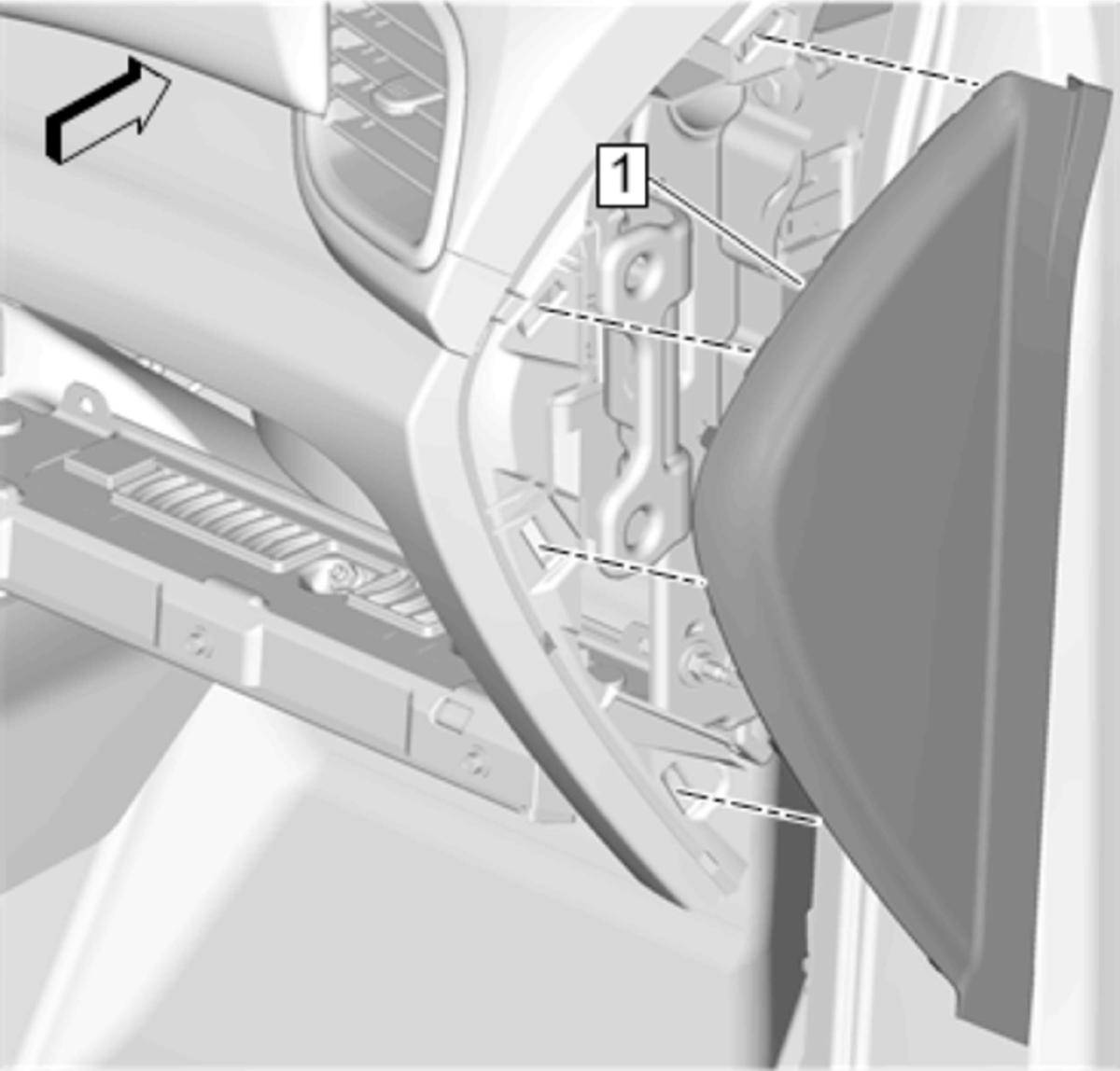

  10. GM4726149Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install - Instrument Panel Outer Trim Cover Replacement (Trax)

  11. GM2788249Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  12. Enable the SIR System. SIR Disabling and Enabling
