Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

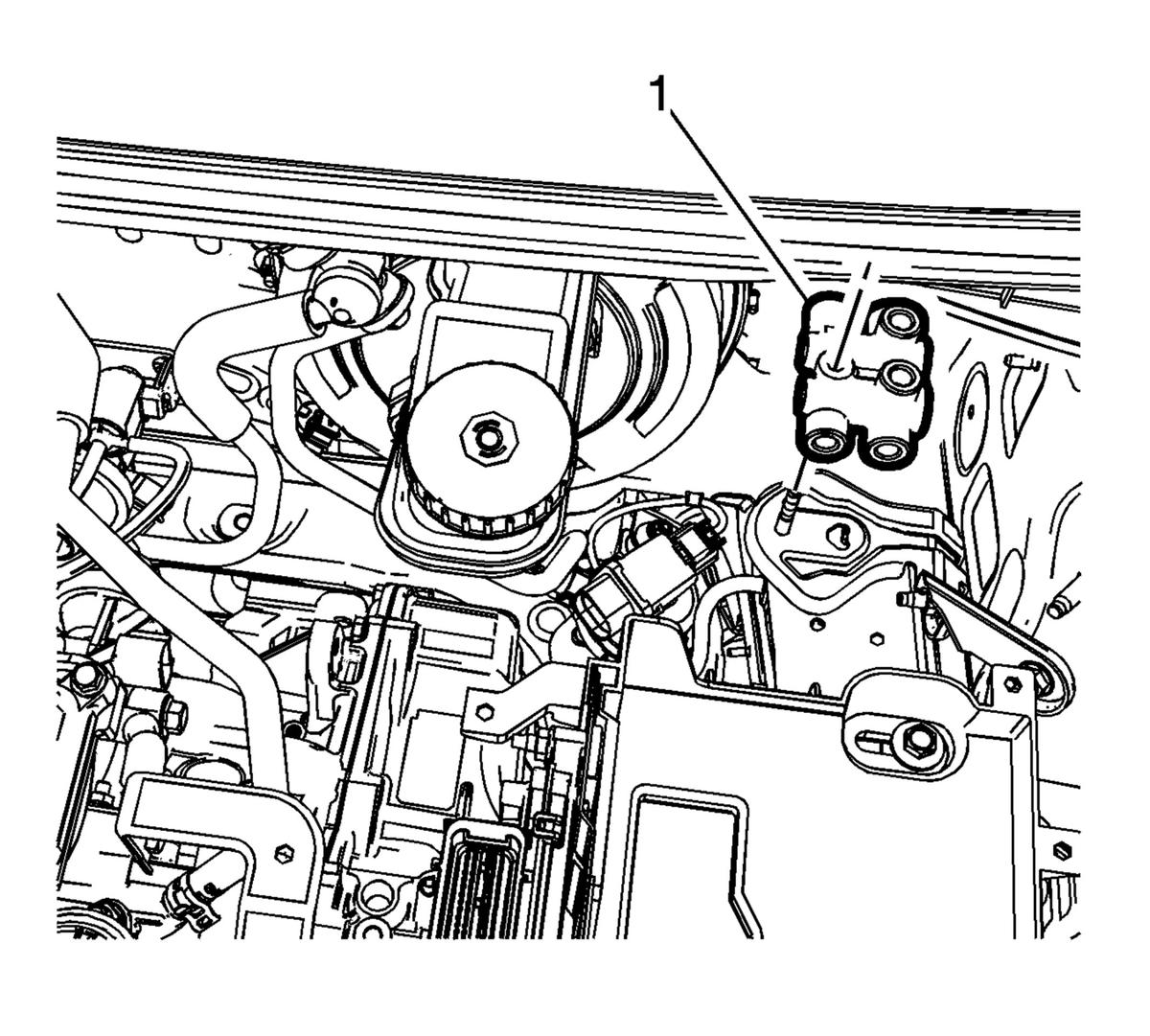

  1. GM2511333

    Install the proportion valve (1).

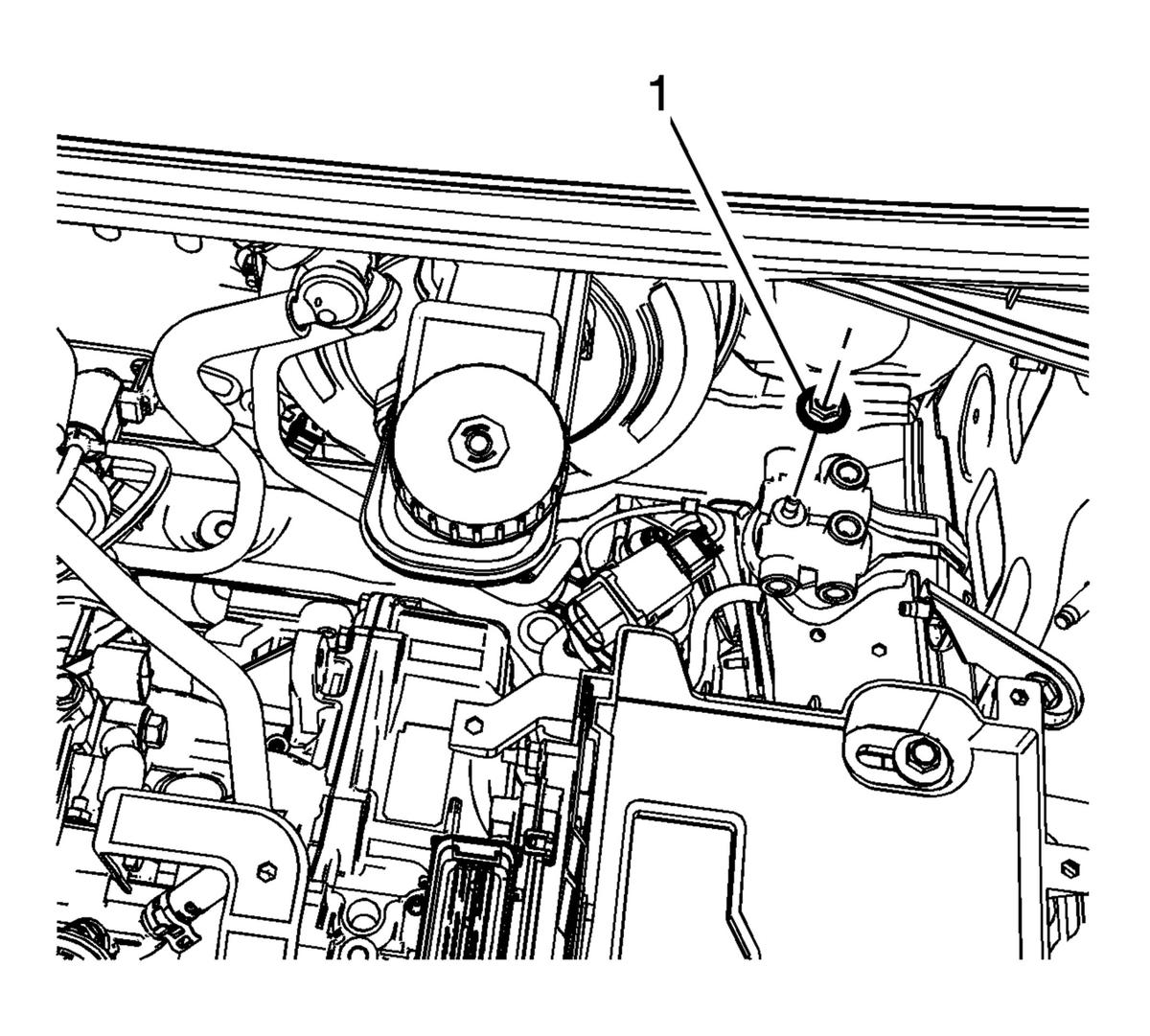

  2. GM2511331
    CAUTION:

    Refer to Fastener Caution .

    Install the proportion valve nut (1) and tighten to 15 N.m (11 lb ft).

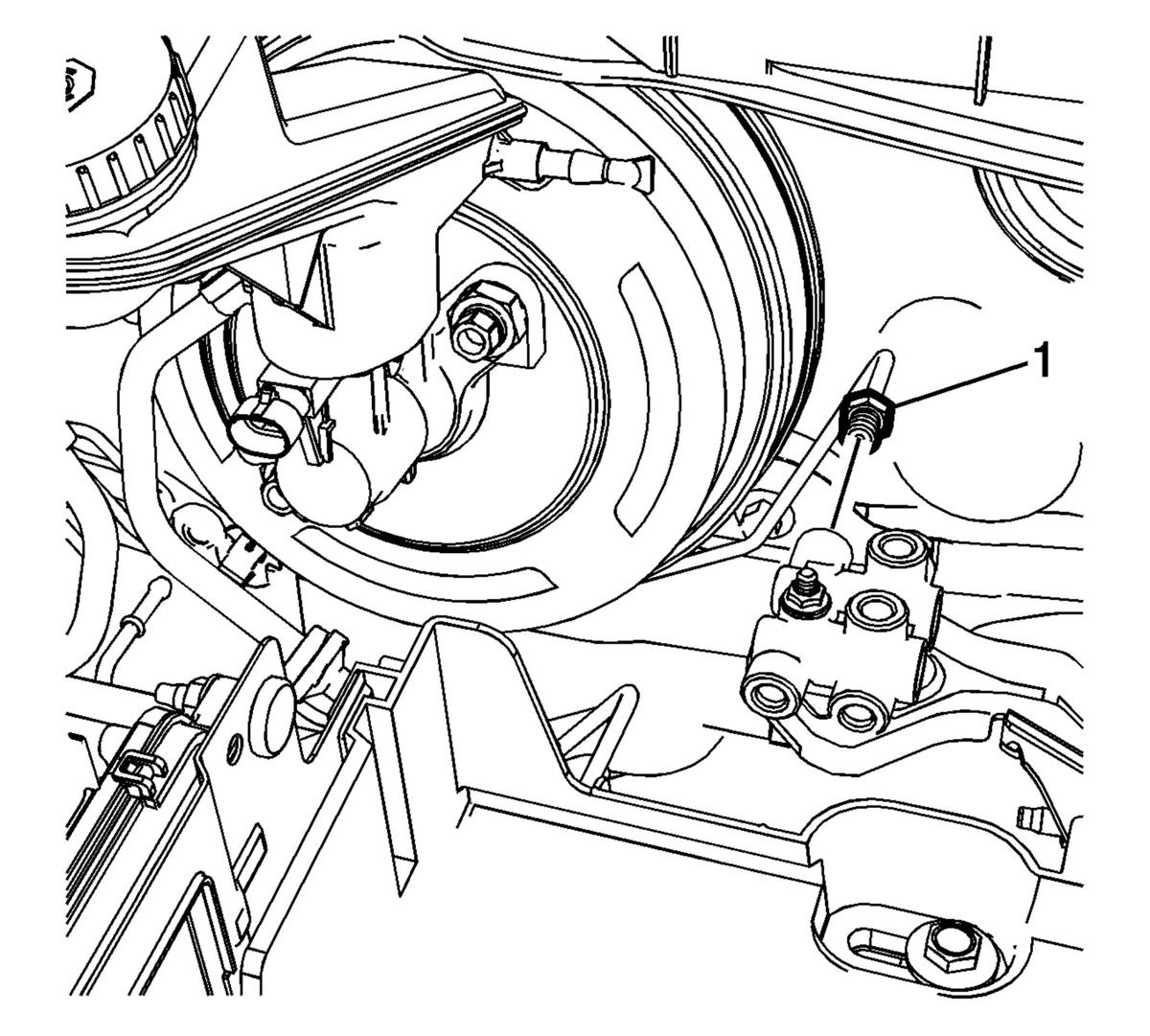

  3. GM2511329

    Connect the left rear brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).

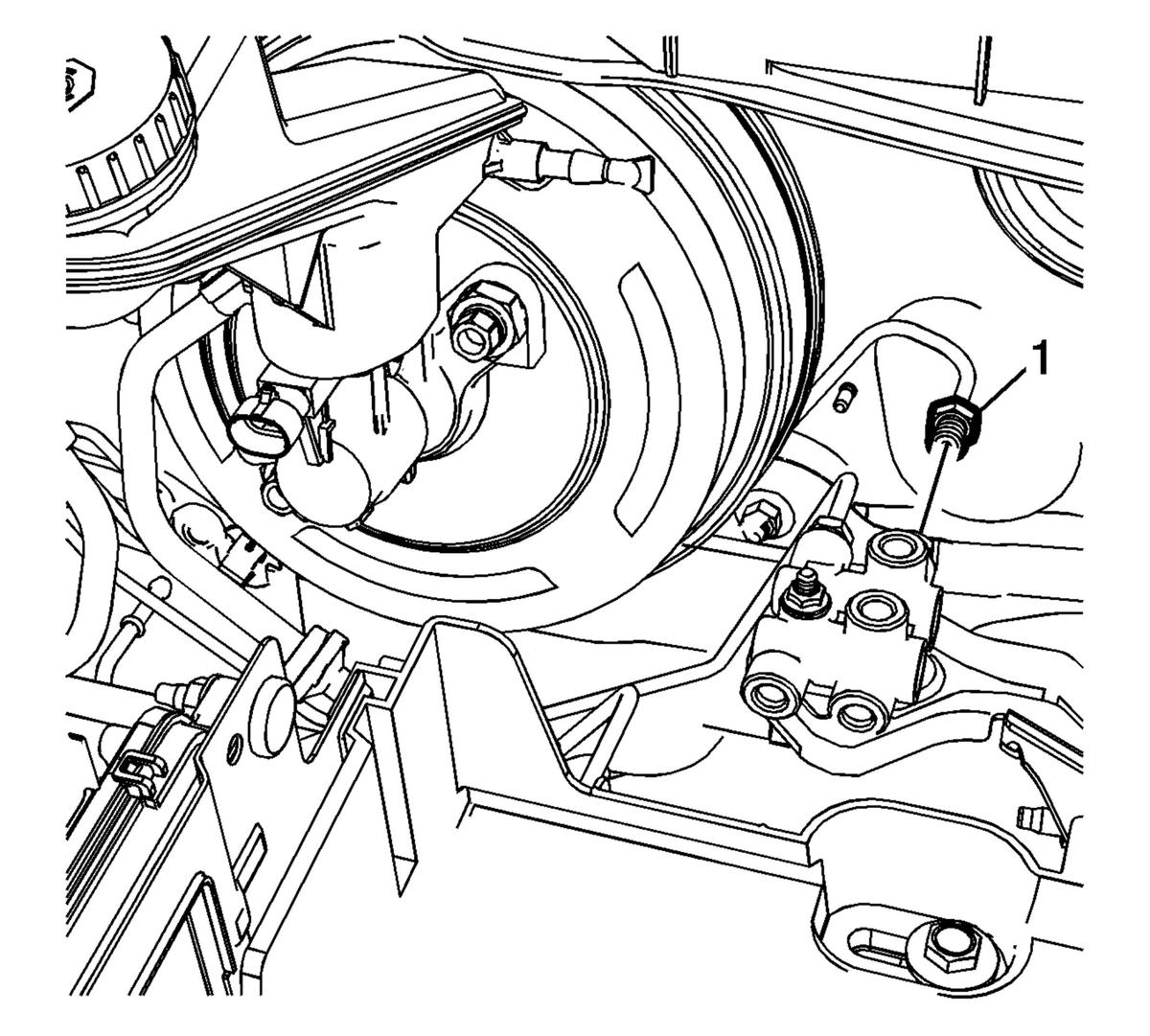

  4. GM2511328

    Connect the right front brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).

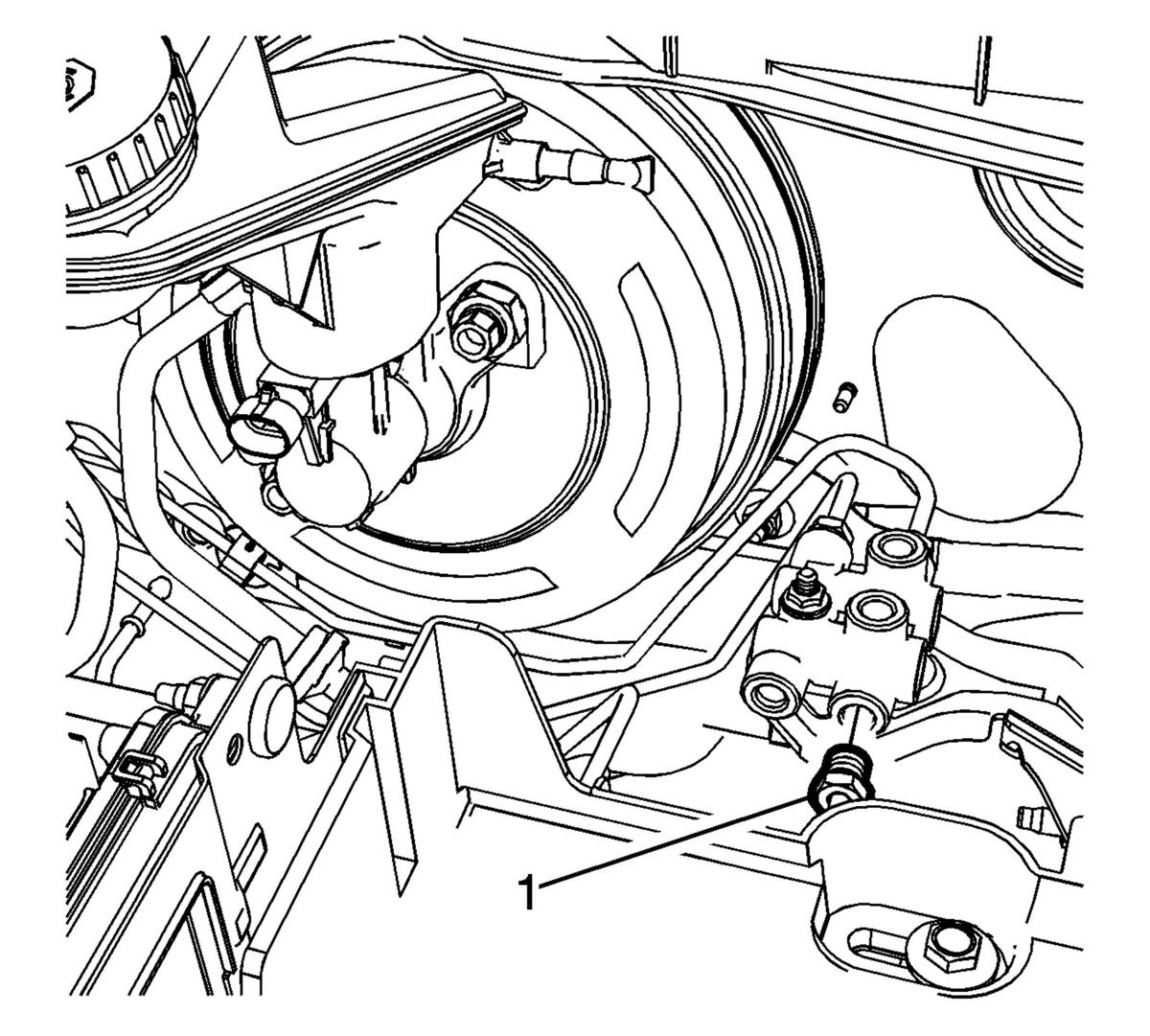

  5. GM2511327

    Connect the left front brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).

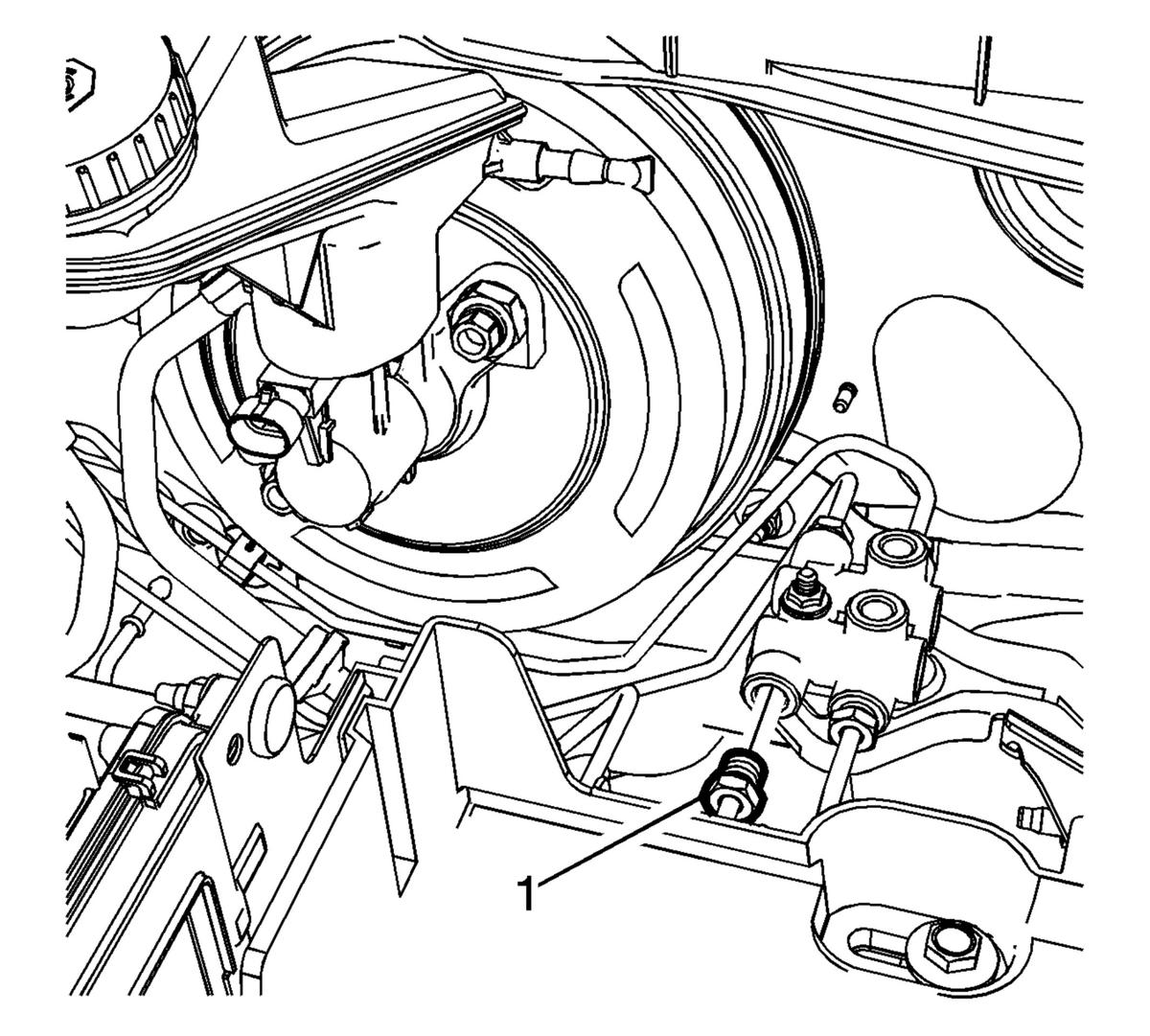

  6. GM2511325

    Connect the right rear brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).

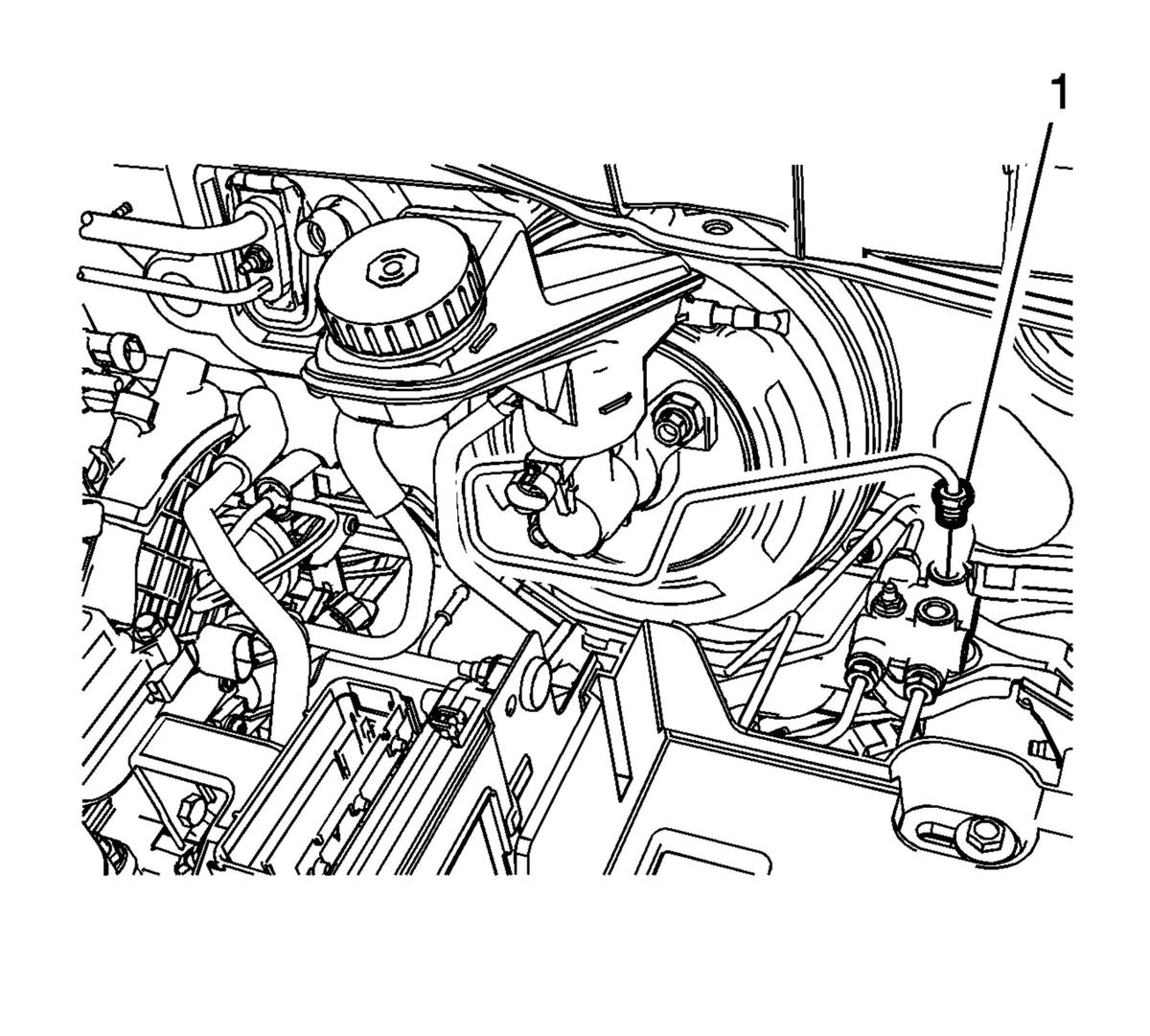

  7. GM2511304

    Connect the master cylinder primary brake pipe fitting (1) to the brake proportion valve and tighten to 18 N.m (13 lb ft).

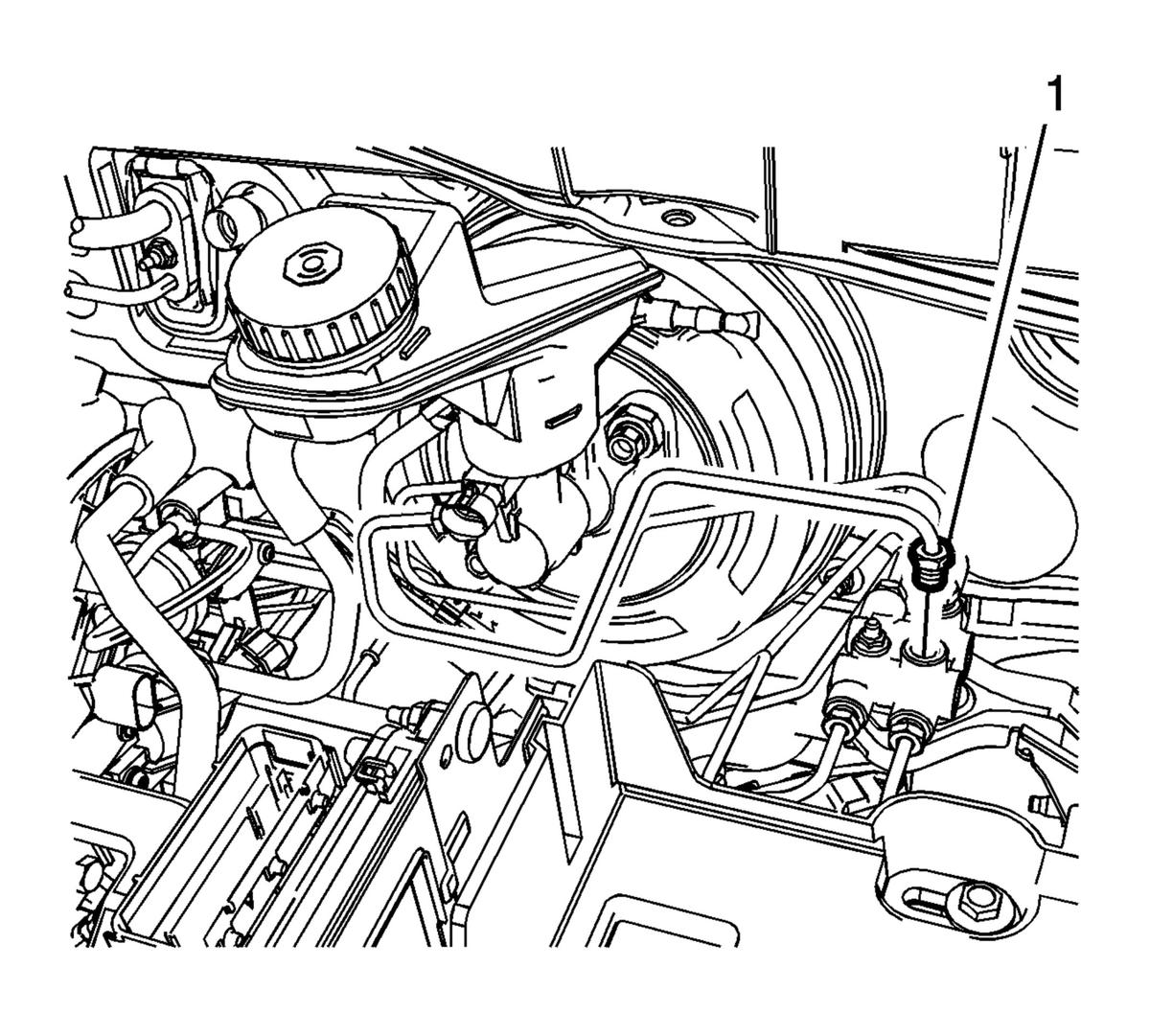

  8. GM2511302

    Connect the master cylinder secondary brake pipe fitting (1) to the brake proportion valve and tighten to 18 N.m (13 lb ft).

  9. Install the battery. Refer to Battery Replacement .
  10. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
