Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

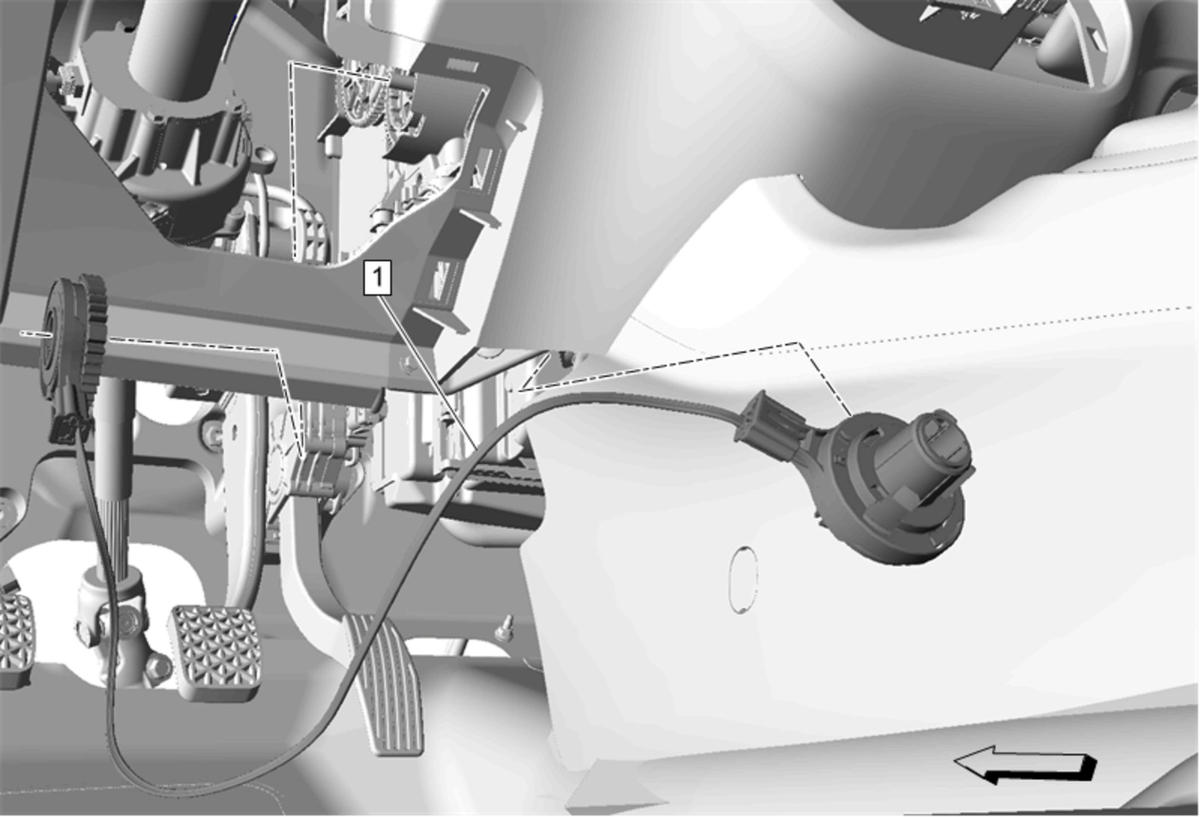

Route the mode control cable (1) behind the instrument panel and the tie bar.
NOTE:
When installing the mode control cable, do not twist the cable wire.

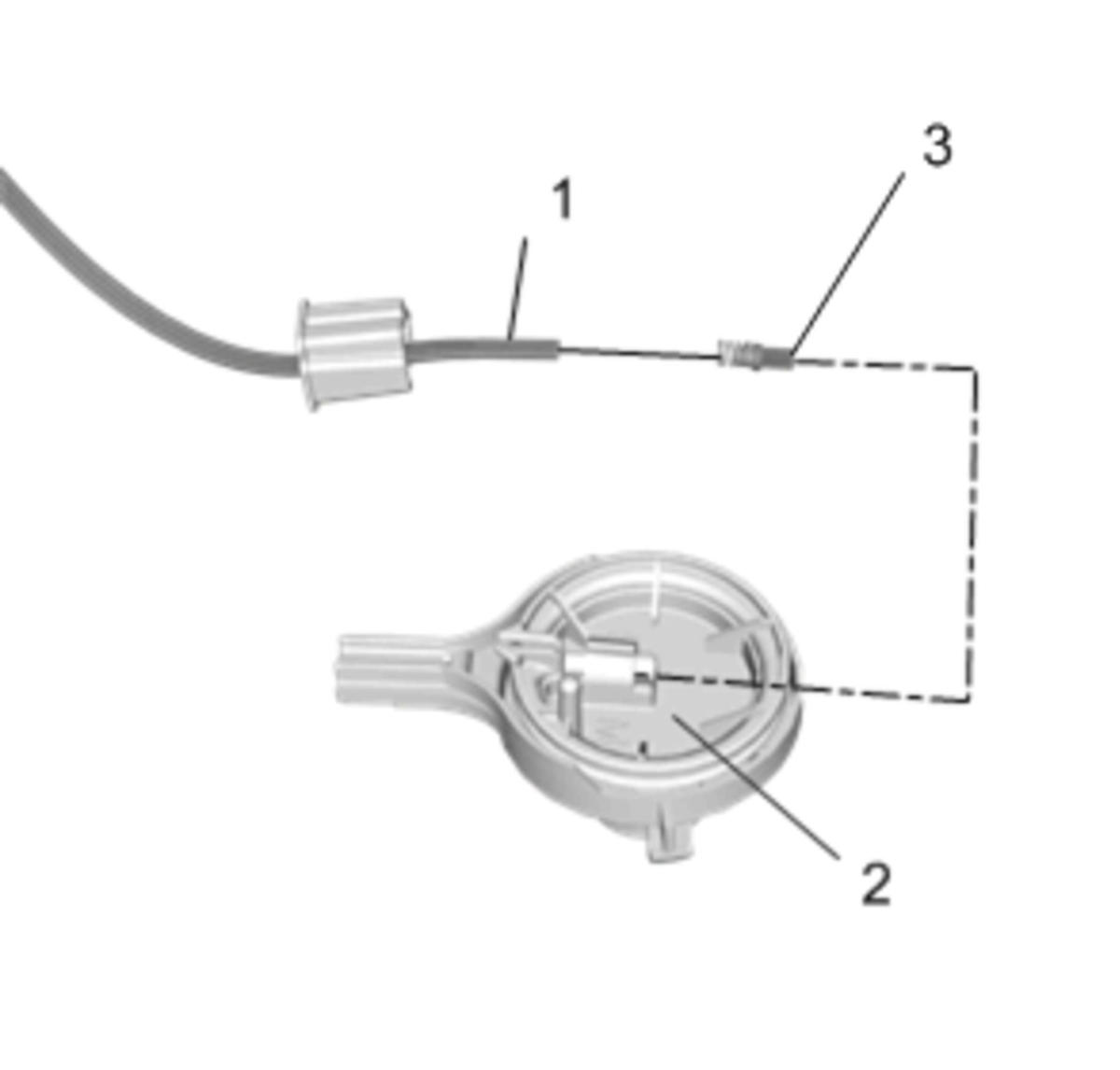

Insert the cable into the detent, move the cable barrel (3) back into the detent to secure the cable to the pulley, (2) to install the mode control cable assembly (1) to the pulley.

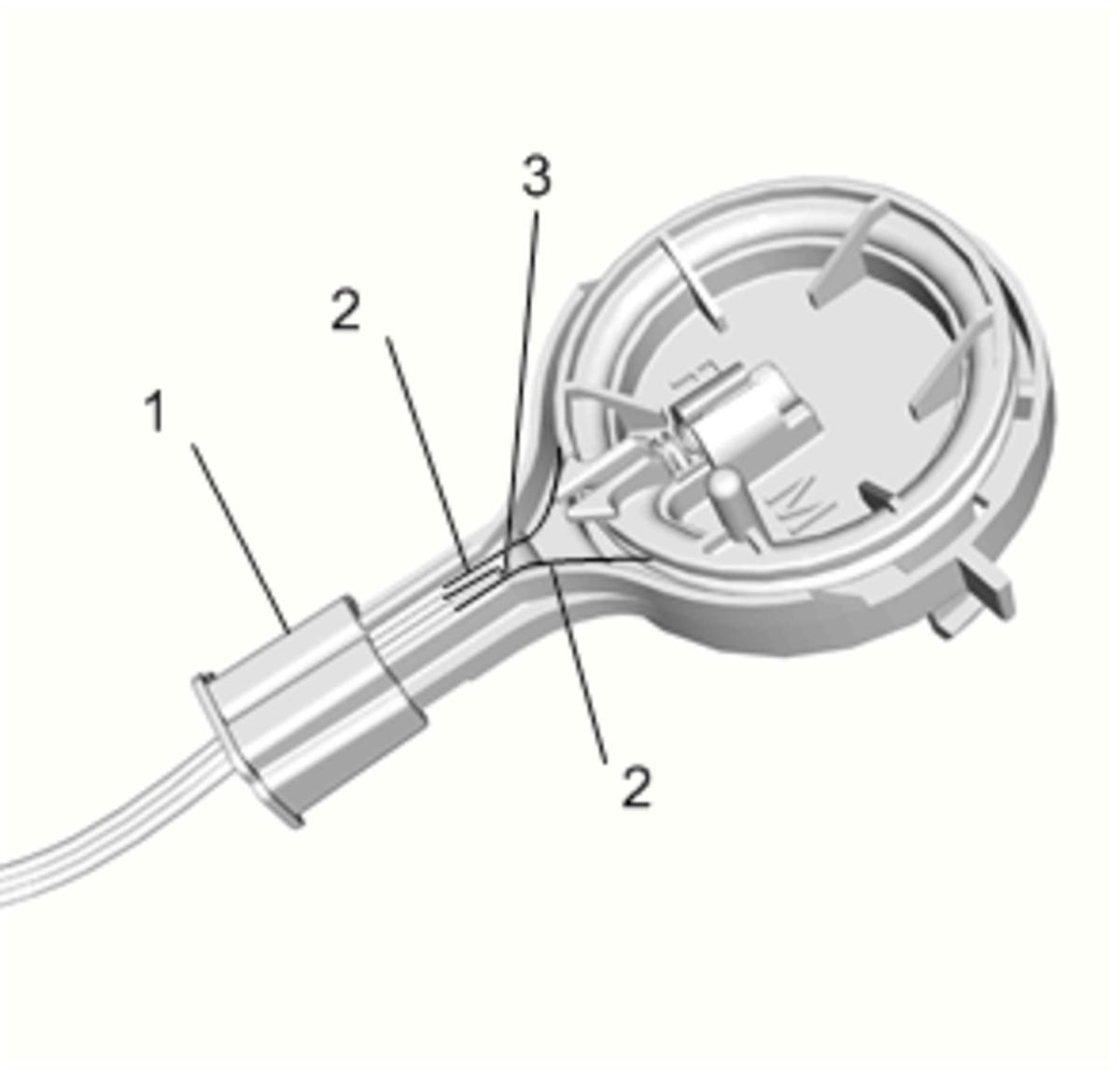

Route the wire (2) around the mode control cable pulley groove.
Insert the center wire (3) into the hole of pulley.
CAUTION:
Refer to Fastener Caution .

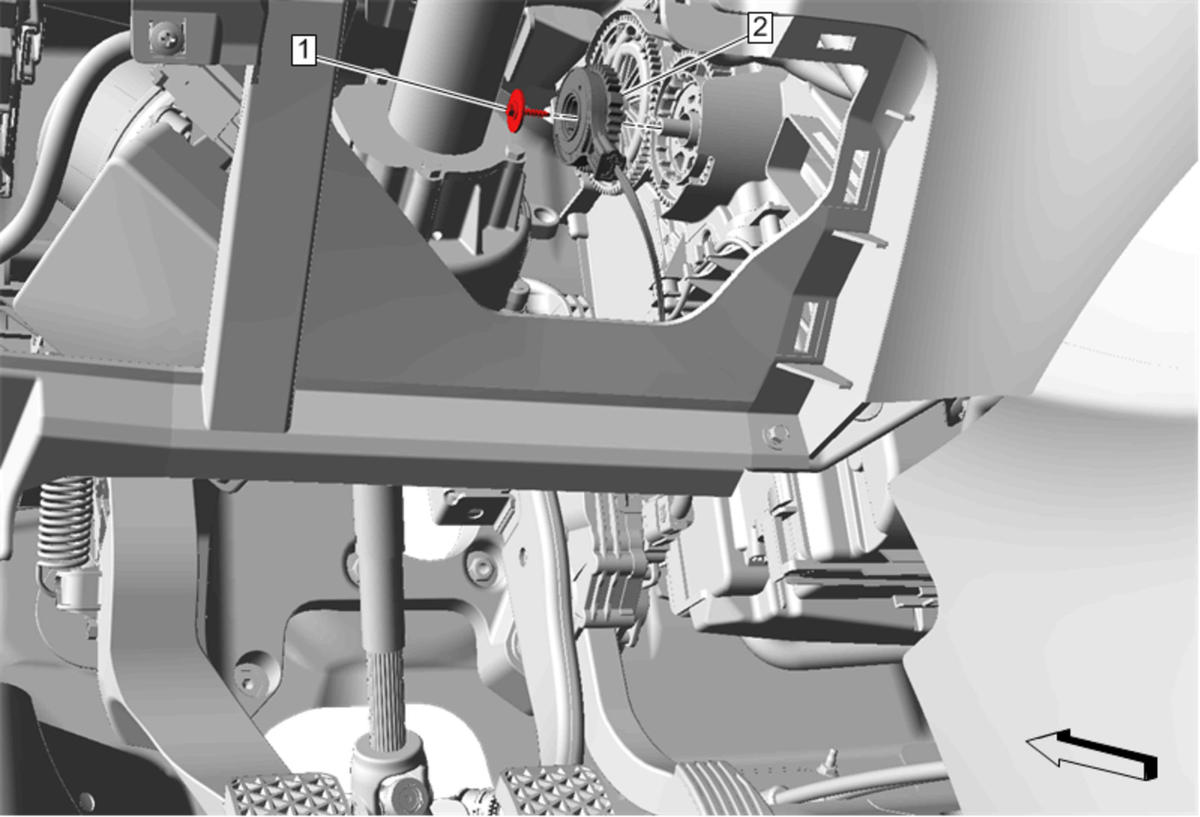

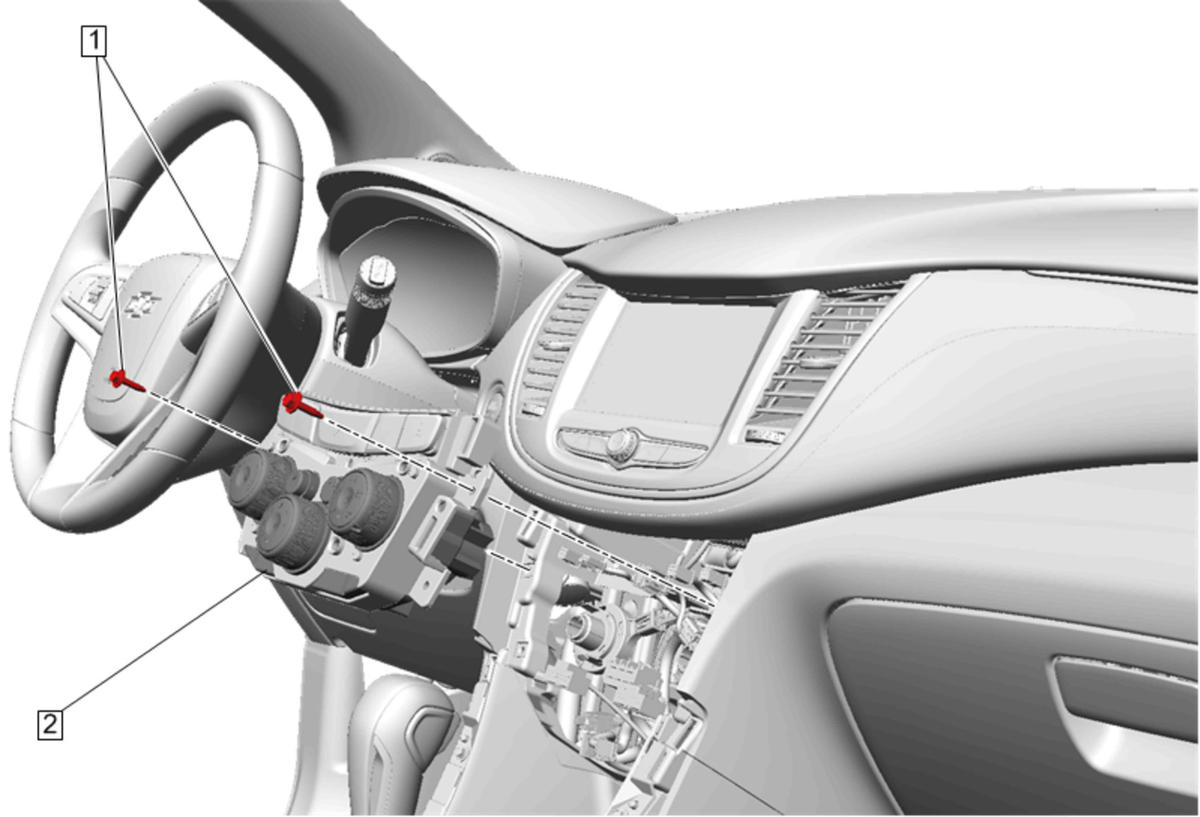

Install the mode control cable retaining screw (1) and the mode control cable (2) onto the heater and air conditioning evaporator and blower module and tighten the screw to 2 N.m (18 lb in).
Heater and Air Conditioning Control with Cable Control(2) - Install - Heater and Air Conditioning Control with Cable Control Replacement (C60)

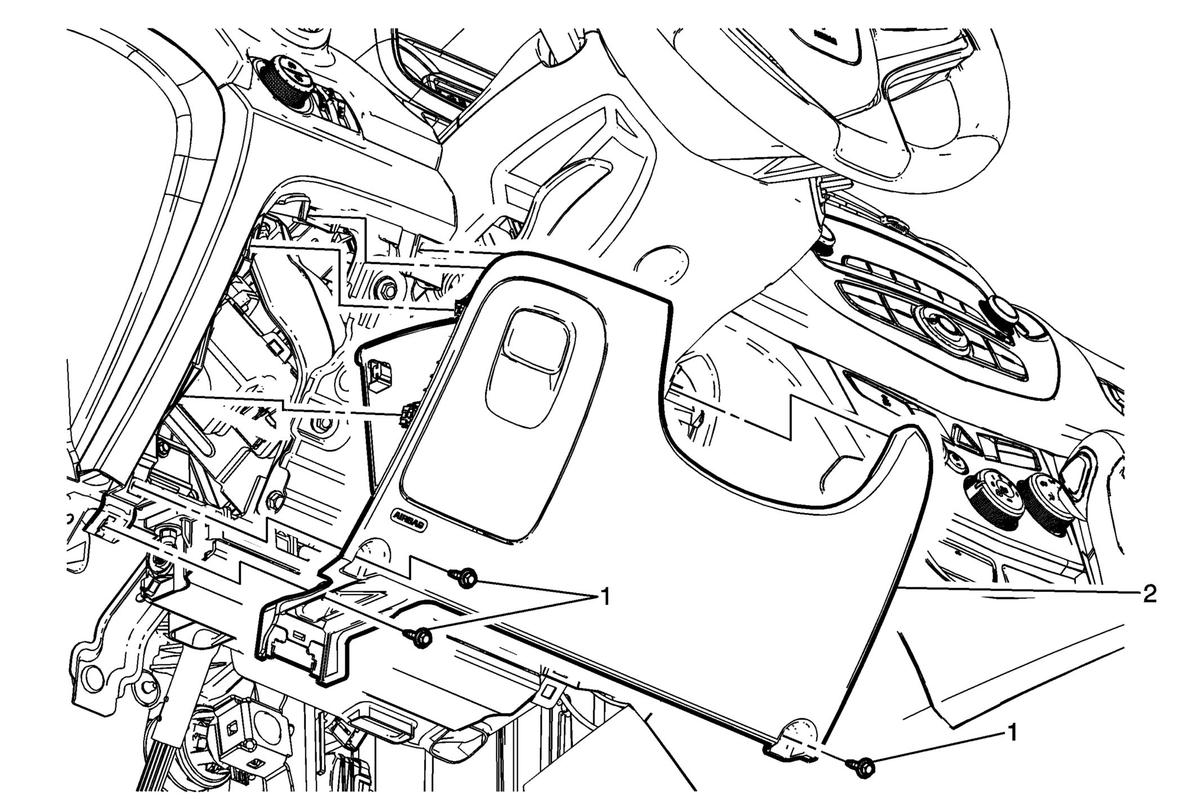

Instrument Panel Knee Bolster(2) - Install - Instrument Panel Knee Bolster Replacement (Buick)Instrument Panel Knee Bolster Replacement (Chevrolet)

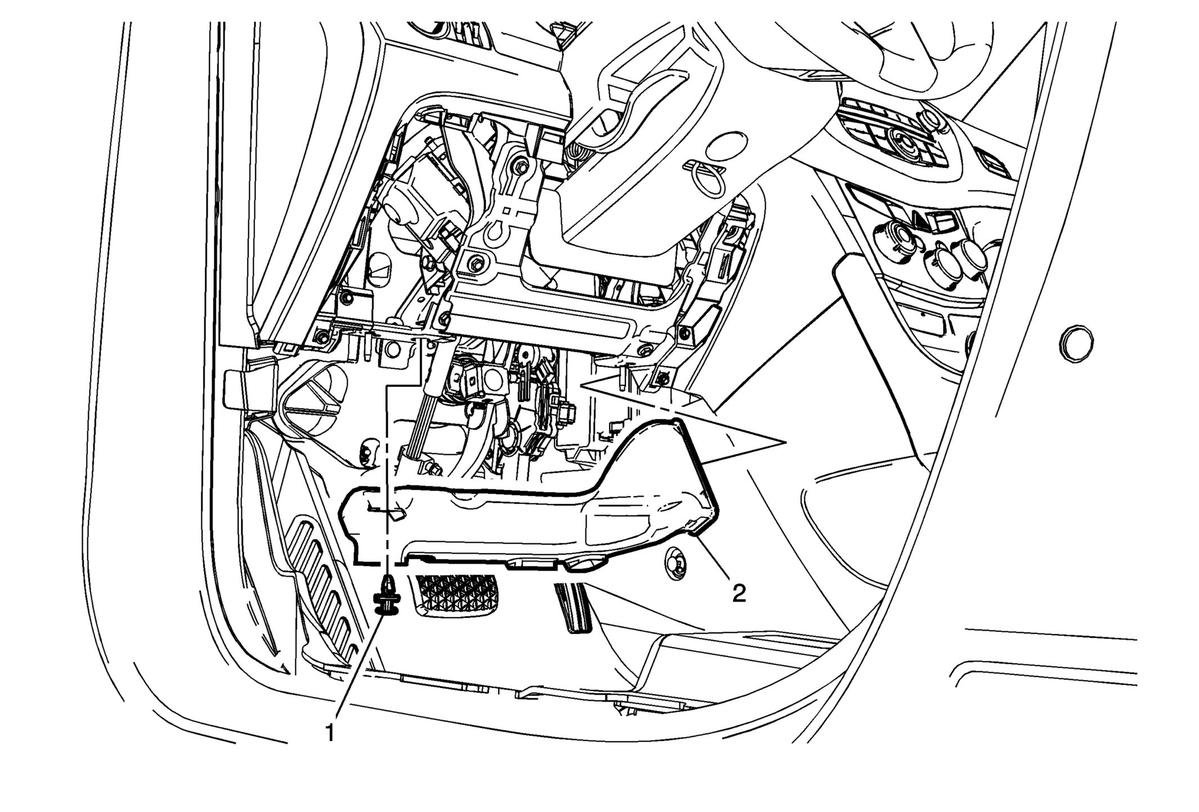

Floor Air Outlet Duct(2) - Install - Floor Front Air Outlet Duct Replacement - Left Side (Chevrolet)Floor Front Air Outlet Duct Replacement - Left Side (Buick)
