Door Lock System Components
The power door lock system consists of the following components:
- Driver door lock switch
- Passenger door lock switch
- Key cylinder switch
- Body control module (BCM)
- Driver door latch
- Passenger door latch
- Left rear door latch
- Right rear door latch
- Exterior door handle switches
- Keyless entry control module

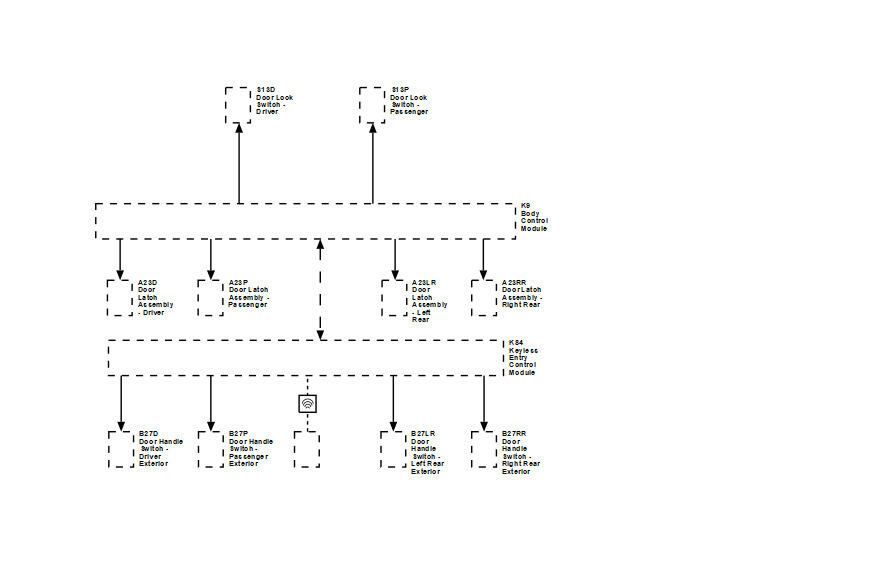

| Callout | Component Name |
|---|---|
| S13D | S13D Door Lock Switch - Driver |
| S13P | S13P Door Lock Switch - Passenger |
| K9 | K9 Body Control Module |
| A23RR | A23RR Door Latch Assembly - Right Rear |
| A23LR | A23LR Door Latch Assembly - Left Rear |
| A23P | A23P Door Latch Assembly - Passenger |
| A23D | A23D Door Latch Assembly - Driver |
| K84 | K84 Keyless Entry Control Module |
| B27RR | B27RR Door Handle Switch - Right Rear Exterior |
| B27LR | B27LR Door Handle Switch - Left Rear Exterior |
| B27P | B27P Door Handle Switch - Passenger Exterior |
| B27D | B27D Door Handle Switch - Driver Exterior |
