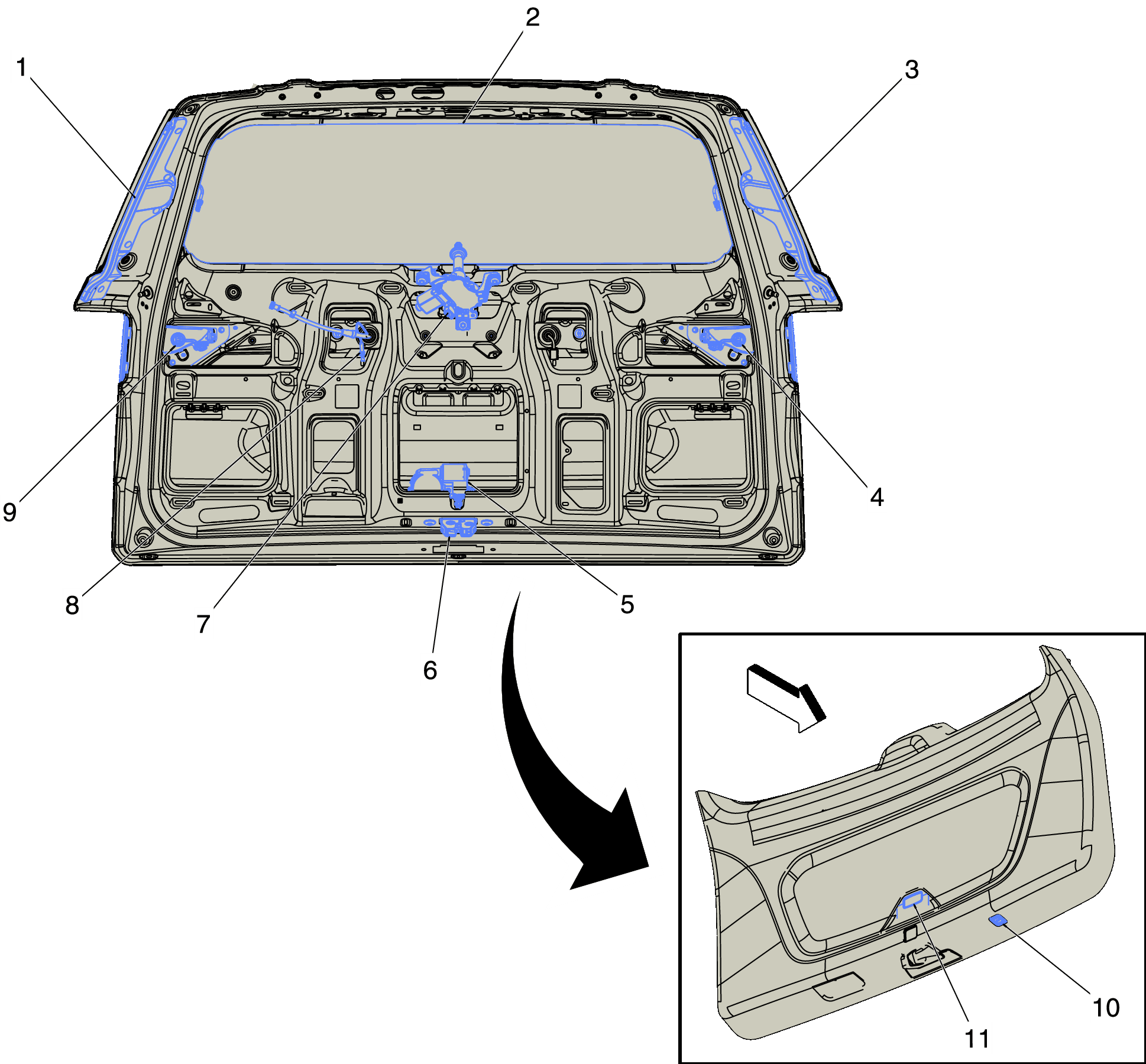

Liftgate Components (X88)
Liftgate Components (X88)
| Items |
|---|
| 1. B71R Liftgate Object Sensor - Right (TB5 or TC2) B71R Liftgate Object Sensor - Right (TB5/TC2) |
| 2. E18 Rear Defogger Grid E18 Rear Defogger Grid X1 , or E18 Rear Defogger Grid X2 |
| 3. B71L Liftgate Object Sensor - Left (TB5 or TC2) B71L Liftgate Object Sensor - Left (TB5/TC2) |
| 4. E5G Tail Lamp - Left Inner E5G Tail Lamp - Left Inner (X88) |
| 5. A23C Liftgate Latch Assembly (TB5 or TC2) A23C Liftgate Latch Assembly |
| 6. M30 Liftgate Latch (Without TB5 or TC2) M30 Liftgate Latch |
| 7. M45 Rear Wiper Motor M45 Rear Wiper Motor |
| 8. B87 Rearview Camera B87 Rearview Camera X1 (-DRZ) , or B87 Rearview Camera X1 (DRZ) , or B87 Rearview Camera X2 (DRZ) |
| 9. E5H Tail Lamp - Right Inner E5H Tail Lamp - Right Inner (X88) |
| 10. B70 Liftgate Close Switch (TB5 or TC2) B70 Liftgate Close Switch (TB5/TC2) |
| 11. E33 Cargo Lamp E33 Cargo Lamp |
