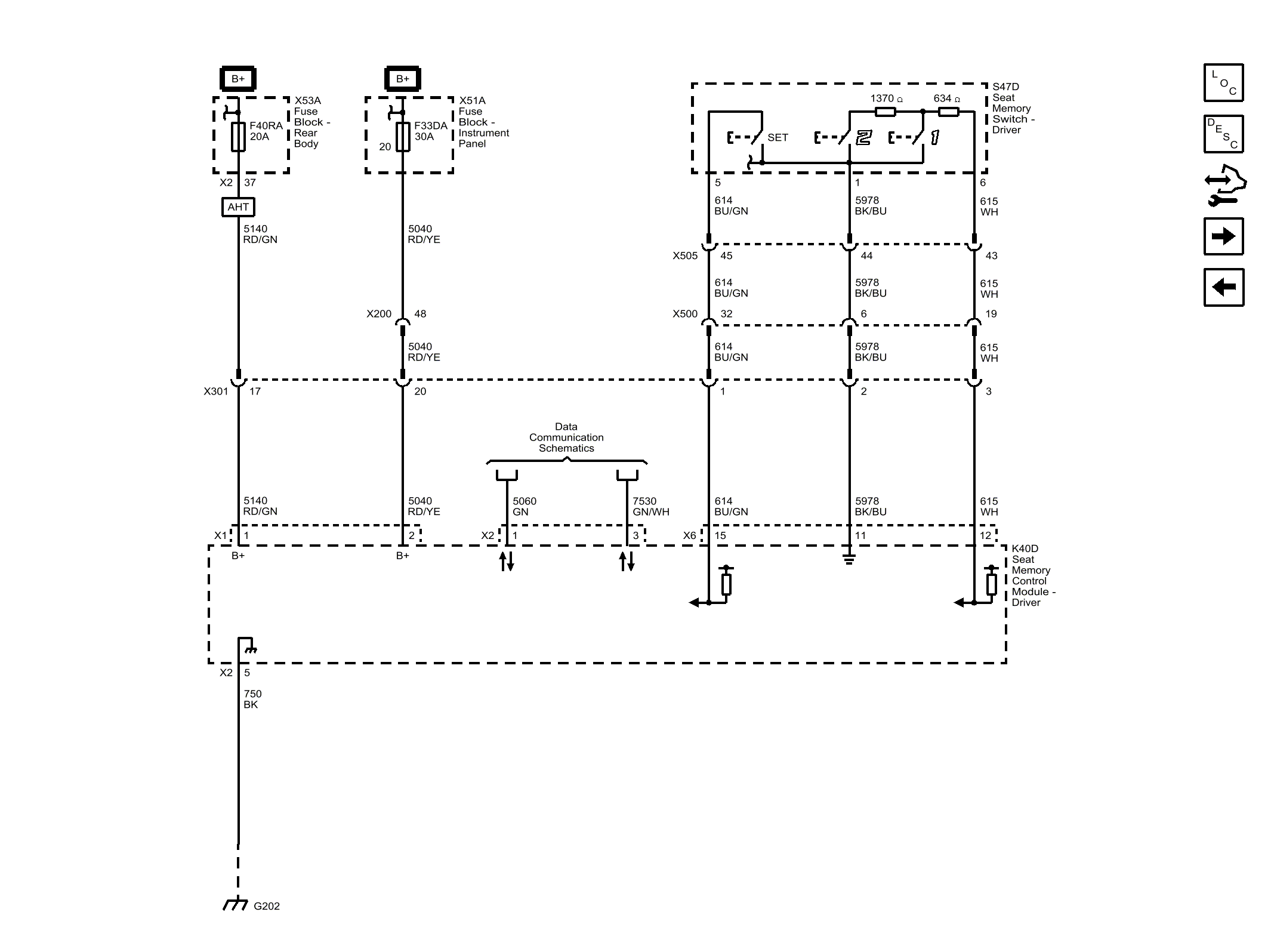

Module Power, Ground, Serial Data, and Memory Controls (AAB)

GM4919533

Courtesy of GENERAL MOTORS COMPANY
