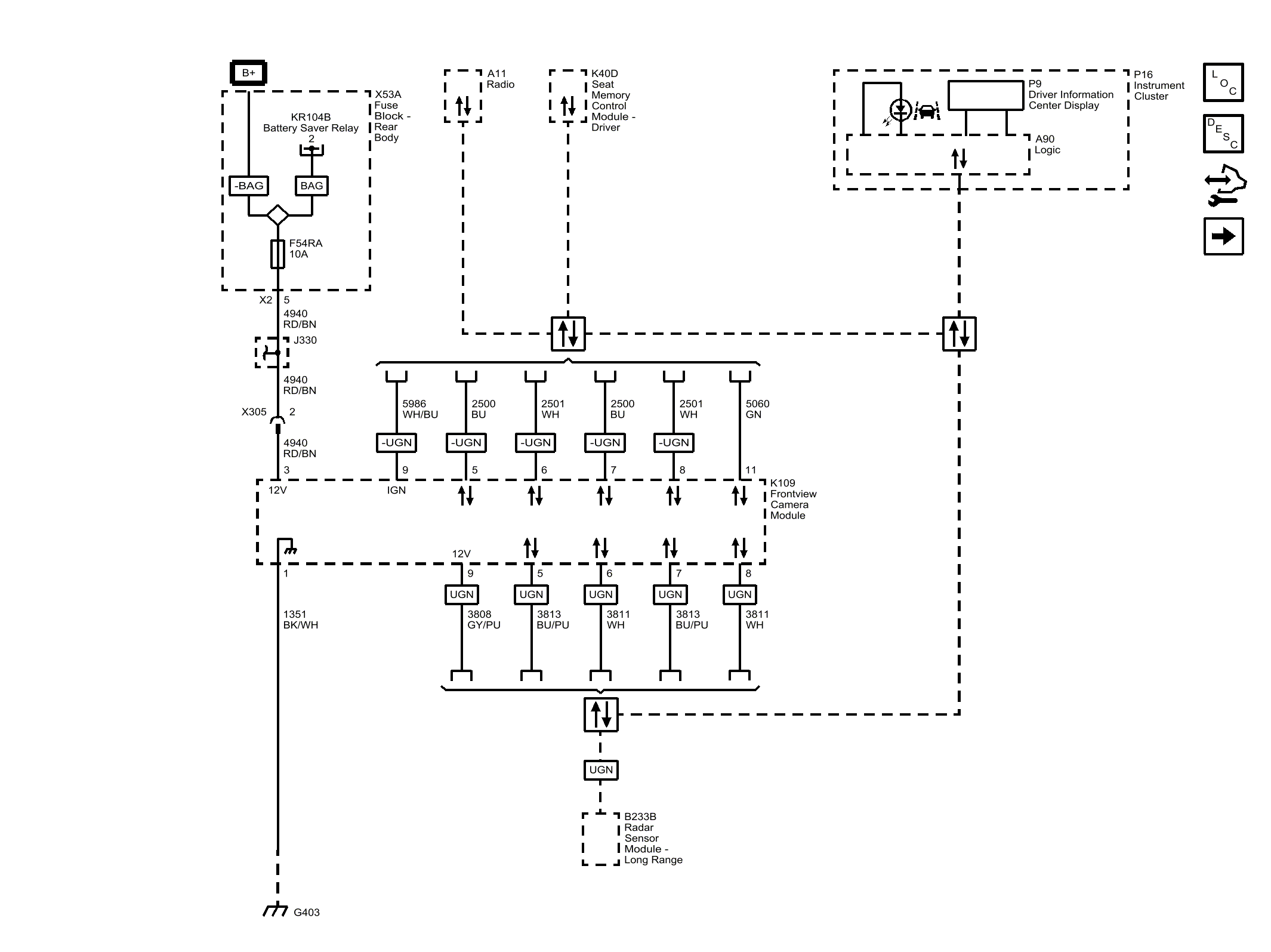

Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU)

GM4919641

Courtesy of GENERAL MOTORS COMPANY
