Home >> Chevrolet >> 2019 >> Traverse LS, FWD >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

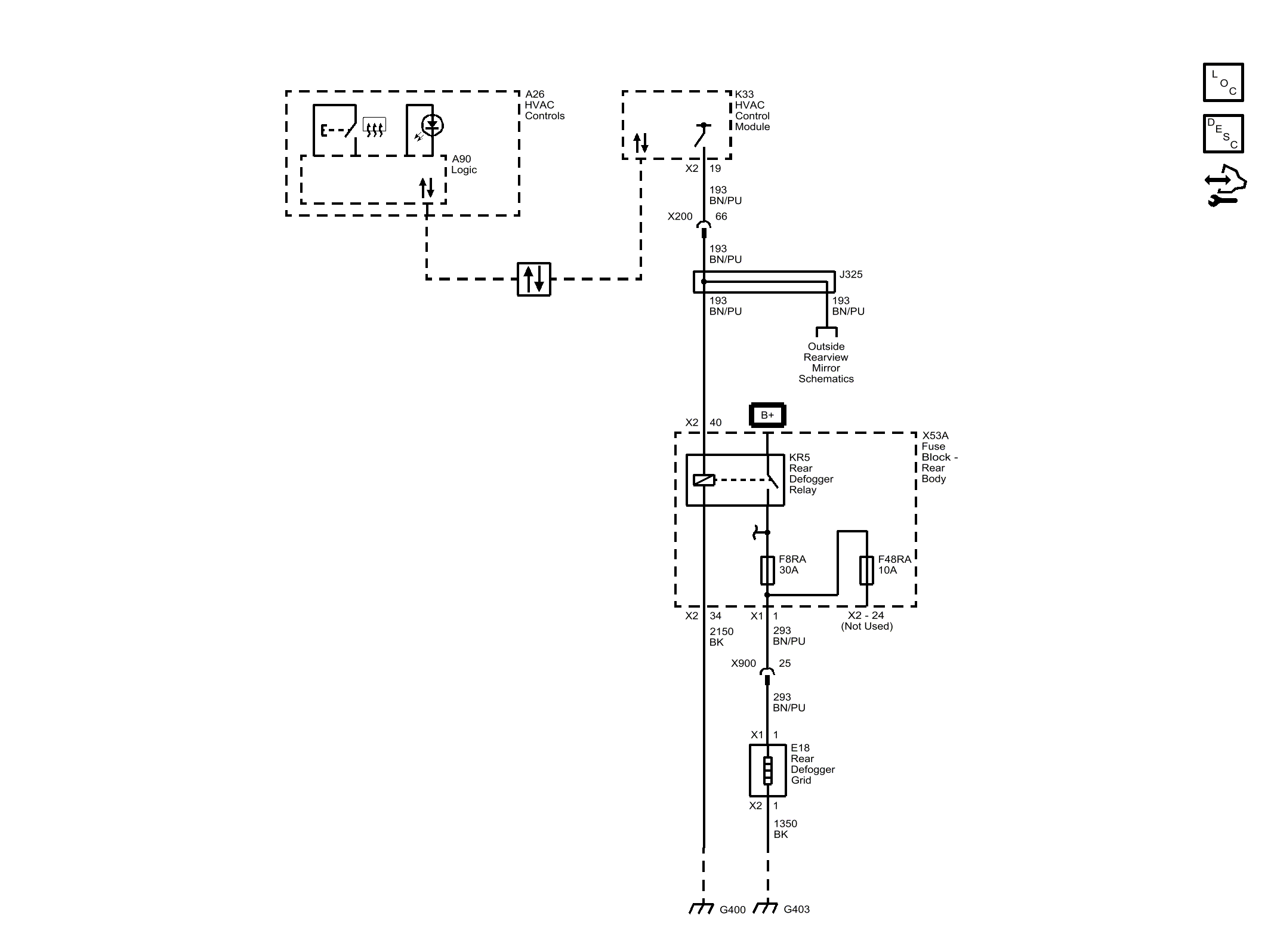

Defogger Wiring Schematics: Defogger

GM4919622

Courtesy of GENERAL MOTORS COMPANY
