Home >> Chevrolet >> 2019 >> Traverse LS, 4WD >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Antilock Brake System Wiring Schematics >> Power, Ground, Serial Data, Traction Control and References

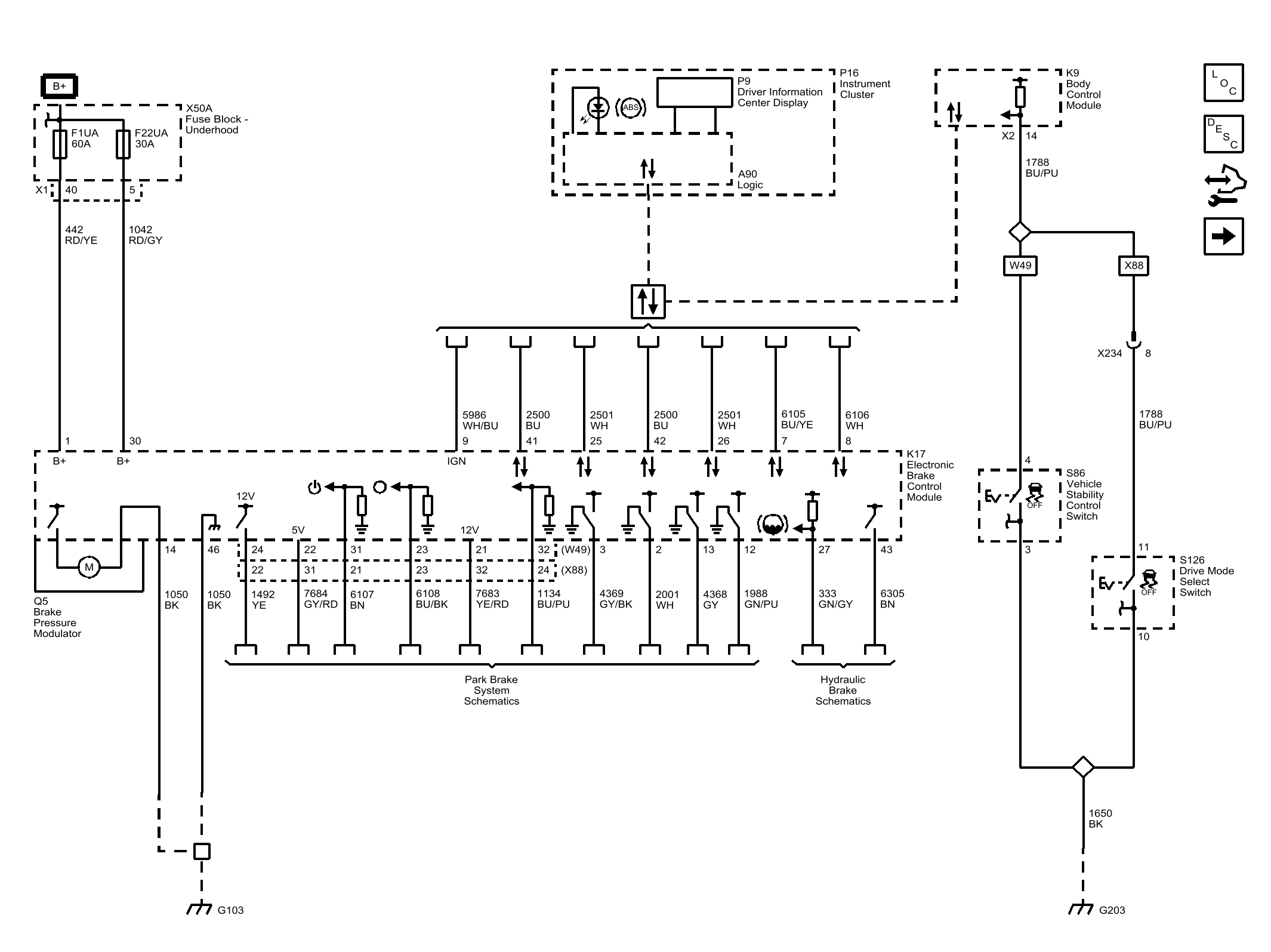

Power, Ground, Serial Data, Traction Control and References

GM4919424

Courtesy of GENERAL MOTORS COMPANY
