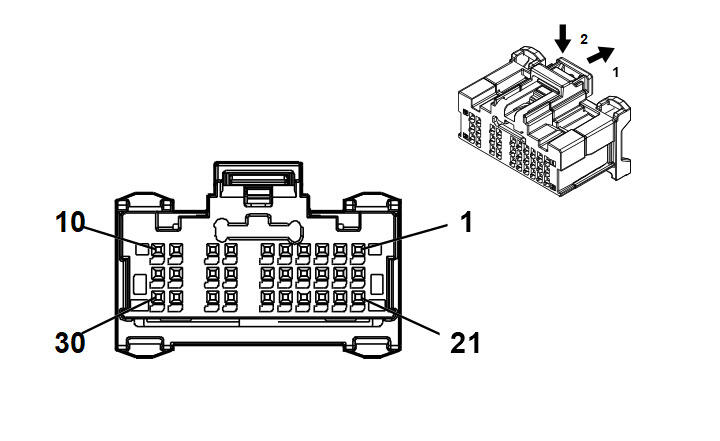

K56 Serial Data Gateway Module X2

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19370262	EL-35616-58 (BK)	EL-38125-58	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.35	BU/VT	3813	High Speed GMLAN Serial Data (+) 4	I	UGN
3	0.35	WH	3811	High Speed GMLAN Serial Data (-) 4	I	UGN
4	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
5	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
6	0.35	VT	3935	High Speed GMLAN Serial Data (+) 8	I	UGN
7	0.35	VT/WH	3936	High Speed GMLAN Serial Data (-) 8	I	UGN
8	0.35	GN	6105	High Speed GMLAN Serial Data (+) 2	I	-
9	0.35	YE	6106	High Speed GMLAN Serial Data (-) 2	I	-
10	-	-	-	Not Occupied	-	-
11	0.35	GN	5060	Low Speed GMLAN Serial Data	I	-
12 - 13	-	-	-	Not Occupied	-	-
14	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
15	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
16	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	-
17	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	-
18	0.35	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
19	0.35	WH/BK	6106	High Speed GMLAN Serial Data (-) 2	I	-
20 - 22	-	-	-	Not Occupied	-	-
23	0.35	VT/GN	39	Run/Crank Ignition 1 Voltage	I	-
24	-	-	-	Not Occupied	-	-
25	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
26 - 30	-	-	-	Not Occupied	-	-
