Installation Procedure

  1. GM4579239Courtesy of GENERAL MOTORS COMPANY

    Generator Shield (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Nut (2) - Install and tighten 22 N.m (16 lb ft)
  3. Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle
  5. GM4573531Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)

  6. Lower the vehicle.

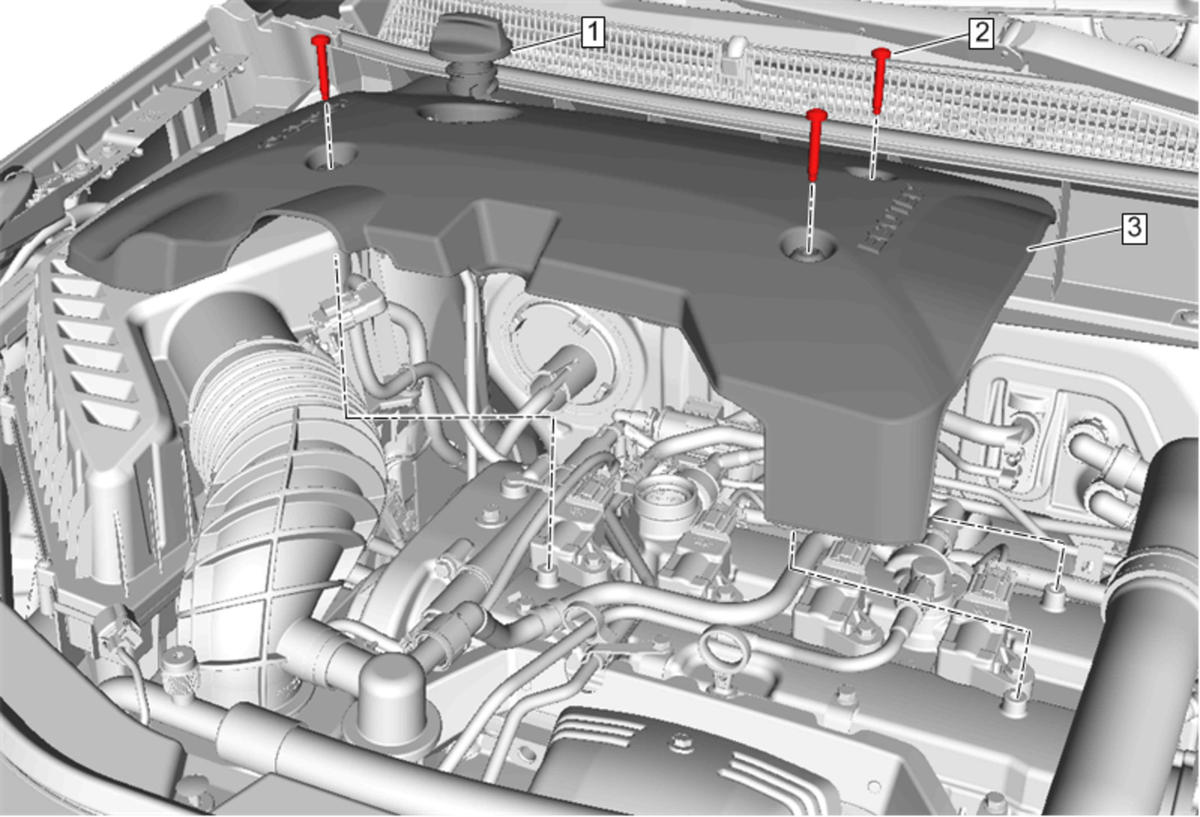

  7. GM4324312Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (3) - Install - Intake Manifold Cover Replacement
