Installation Procedure

CAUTION:

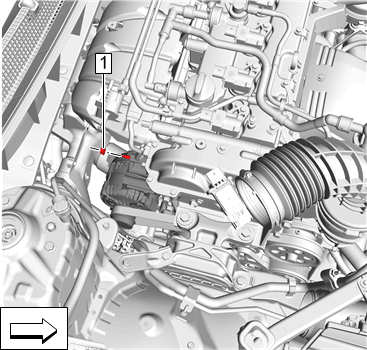

If necessary, install the generator mounting stud. (2) - Tighten 9 N.m (80 lb in)
Generator Nut (1) - Hand tighten
Courtesy of GENERAL MOTORS COMPANY

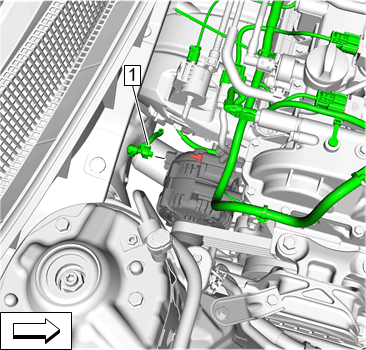

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

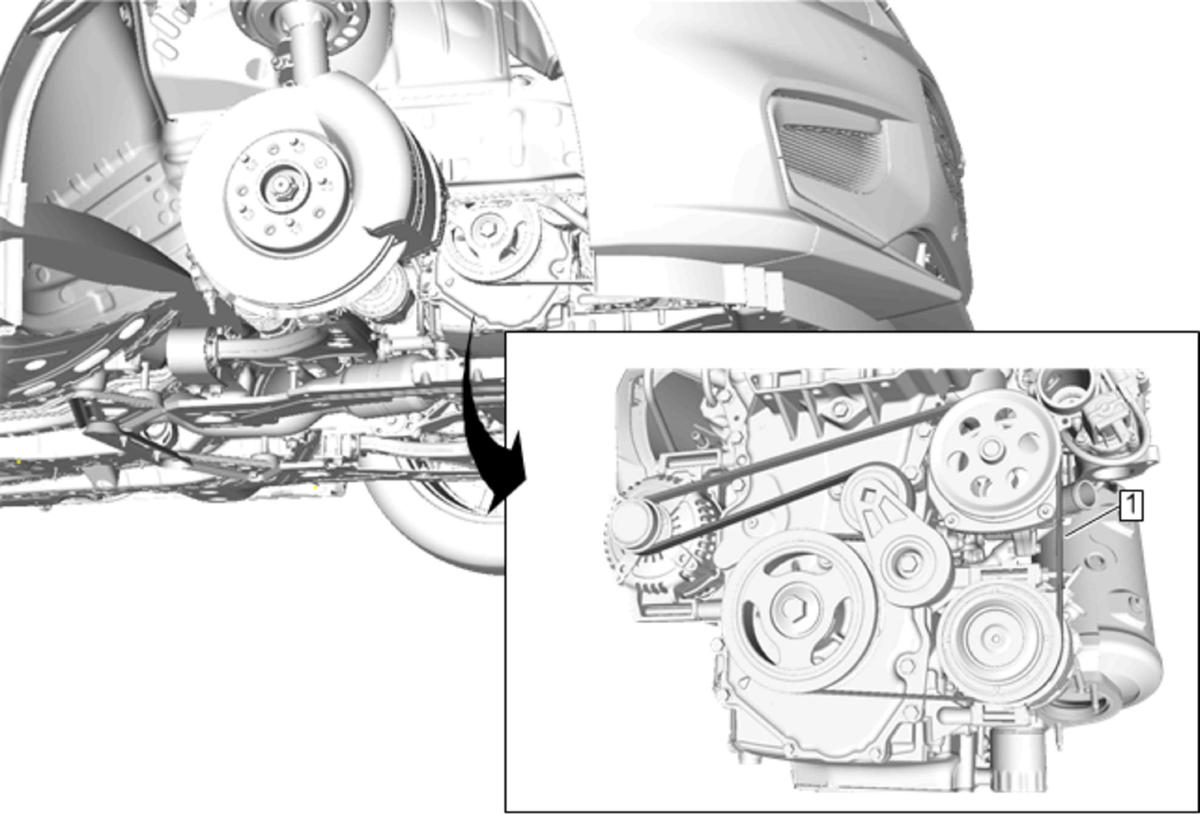

Drive Belt (1) - Install - Drive Belt Replacement
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

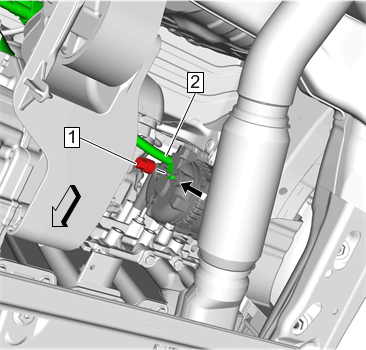

NOTE:
Anti-rotation tab is in the 4 o'clock position (arrow).

Battery Positive Cable (2) - Install
Battery Positive Cable Nut (1) - Install and tighten 15 N.m (11 lb ft)
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

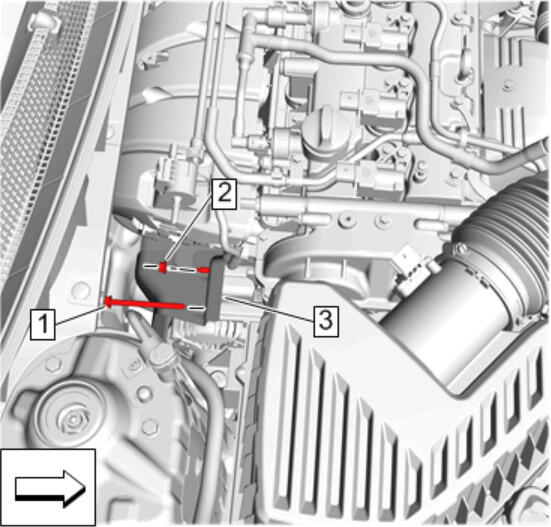

Remove the generator nut (1).
Courtesy of GENERAL MOTORS COMPANY

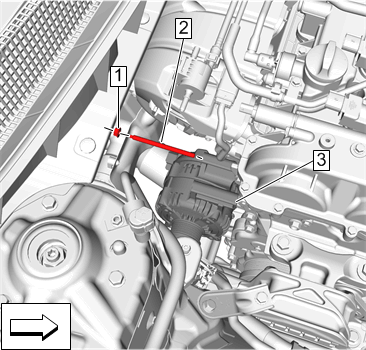

Generator Shield (3) - Install - Generator Shield Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

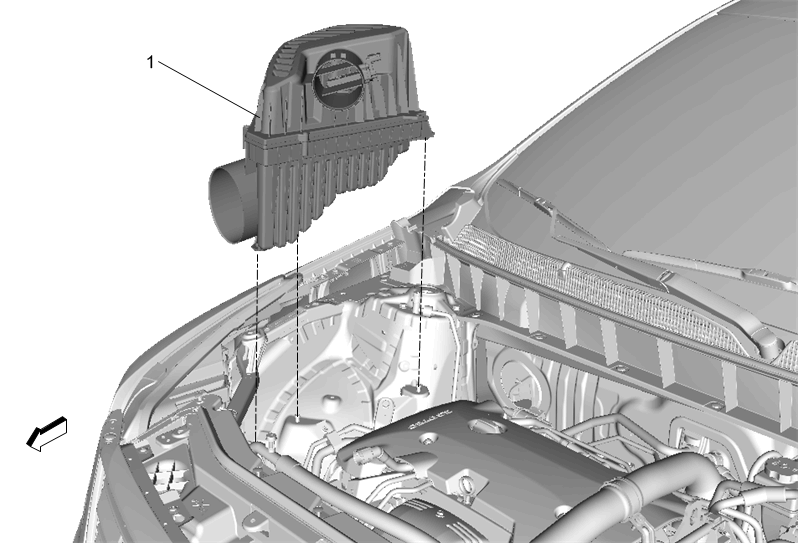

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (KL9)
