Installation Procedure

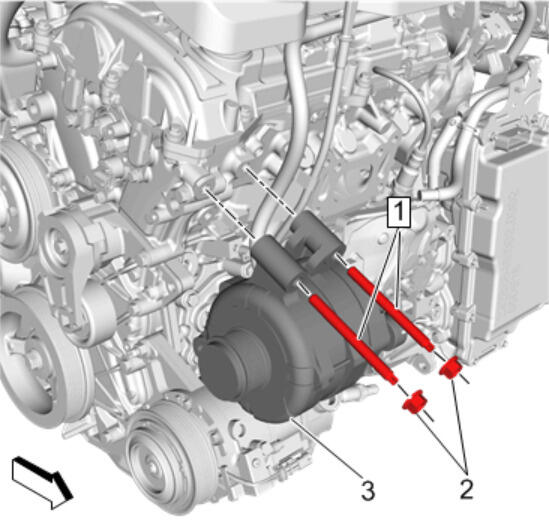

  1. GM4732390Courtesy of GENERAL MOTORS COMPANY

    Generator (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Mounting Stud (1) - Install and tighten [2x] 9 N.m (80 lb in)
  3. Generator Mounting Nut (2) - Install and tighten [2x] 58 N.m (43 lb ft)

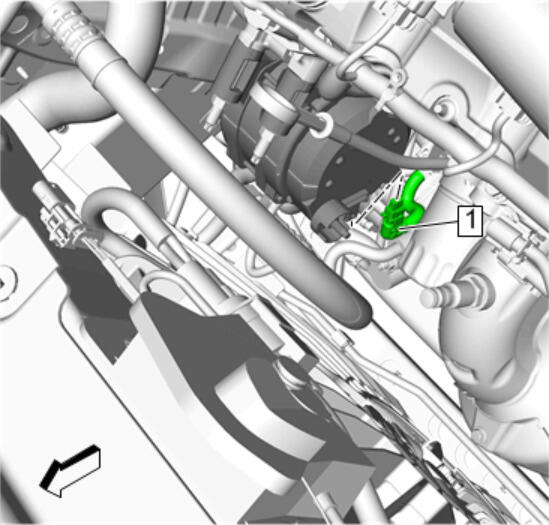

  4. GM4732374Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

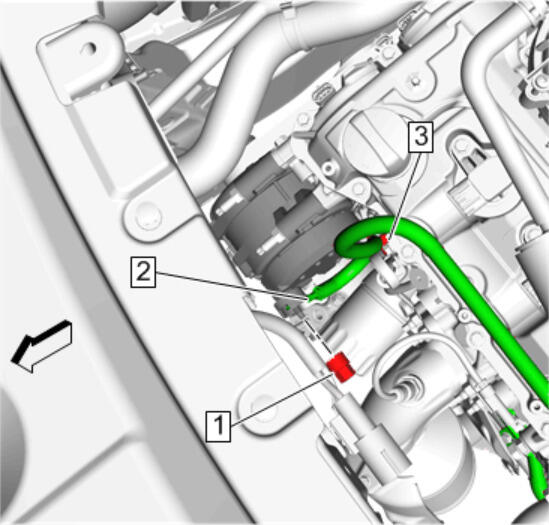

  5. GM4728880Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (2) - Install

  6. Generator Fastener (1) - Install and tighten 15 N.m (11 lb ft)
  7. Belt Idler Pulley - Install - Belt Idler Pulley Replacement
  8. Install the intake manifold cover. Intake Manifold Cover Replacement
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
